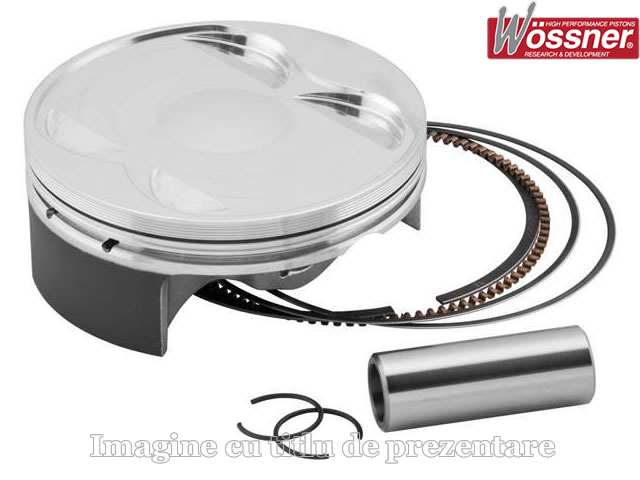

Forged piston kit Wossner for Yamaha XT 125 4T manufactured between 1982-2011.
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 60.00mm
- thermal clearance: 0.05mm
- number of rings: 3 (two compression / one oil)
- compression ratio: 10.00:1 (OEM)
- pin-to-cap distance (measured from the center of the pin): 24.00mm
- piston pin dimensions: 15x9x45mm.
Available piston sizes:
- standard (59.95mm)
- 54.00mm (64.95mm)
