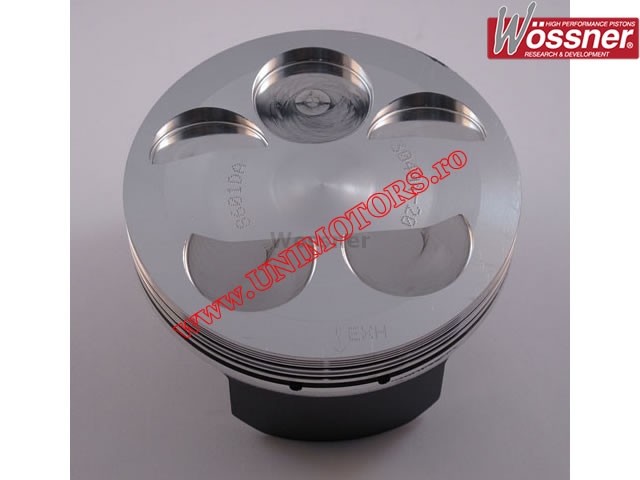

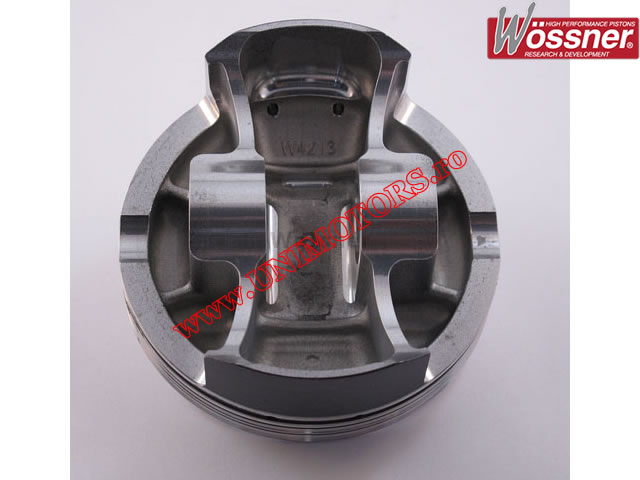

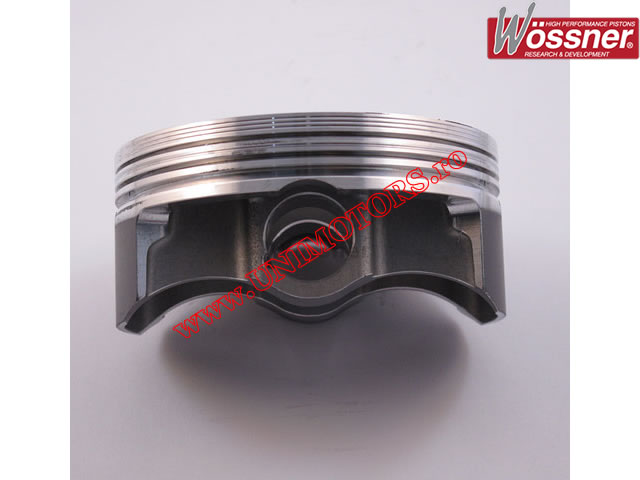

Forged piston kit Wossner for Yamaha YFZ450 manufactured between 2004-2005.
The kit includes piston, rings, pin, and clips.
Please select the piston size from the box above.
Technical specifications:
- cylinder diameter: 94.50mm
- thermal clearance: 0.05mm
- number of rings: 3 (two compression / one oil)
- compression ratio: 11.90:1 (OEM)
- pin-to-head distance (measured from the center of the pin): 25.00mm
- piston pin dimensions: 20x13x51mm.
Available piston sizes:
- A (94.45 mm)
- B (94.46 mm)
- C (94.47 mm)
- +3.00 mm.
