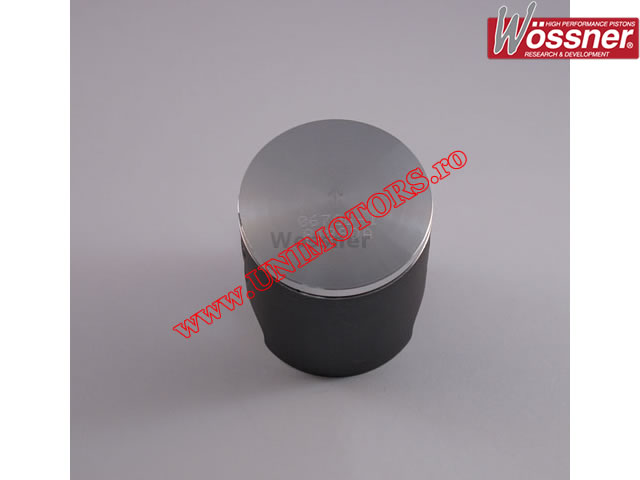

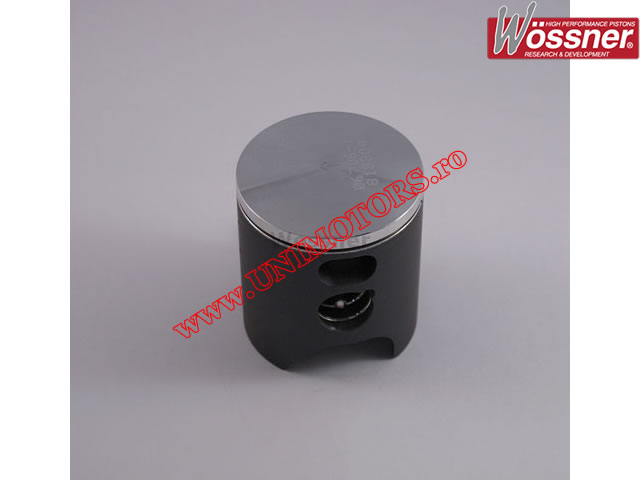

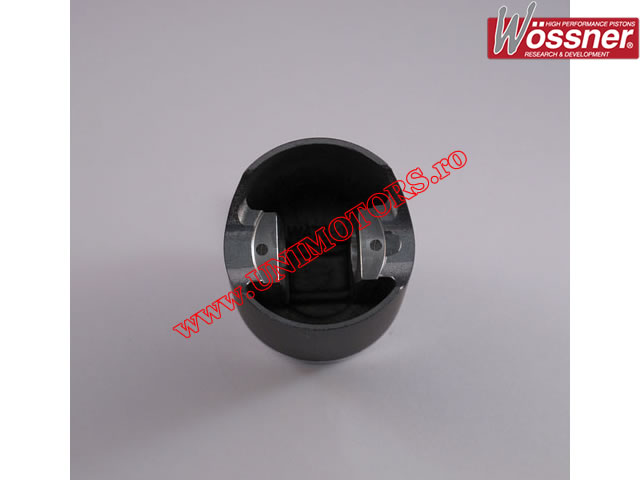

Piston Kit - Yamaha YZ80 ('93-'01 - USA variant) (46.95-48.95mm) - Wossner

Forged piston kit Wossner for Yamaha YZ 80 2T manufactured between 1993-2001 (USA version).

The kit includes piston, ring, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 47.00mm
- thermal clearance: 0.05mm
- pin-to-cap distance (measured from the center of the pin): 26.00mm
- piston pin dimensions: 14x10x38.5mm.

Available piston sizes:
- A (46.95 mm)
- B (46.96 mm)
- C (46.97 mm)
- +0.50 mm (47.45 mm)
- +1.00 mm (47.95 mm)
- +1.50 mm (48.45 mm)
- +2.00 mm (48.95 mm)
