Piston Set V.2 / 47.00mm - Minarelli Horizontal / Vertical - AC / LC 70cc 2T - Naraku

Set piston from the manufacturer Naraku for scooters equipped with Minarelli horizontal or vertical engines, liquid-cooled (LC) or air-cooled (AC), in 2-stroke. This piston has a diameter of 47.00 mm and is suitable only for 70cc oversized kits, made of cast iron and a piston pin of 10.00 mm.

Product Description:
- high-quality replacement piston kit for 70 cc oversized engine kits, made of cast iron;
- the piston is coated with a molybdenum layer, ensuring that the cylinder and piston are protected during the break-in period;
- it is always recommended to replace the piston on 2-stroke engines every 10,000 km;
- this will help with engine performance and reduce fuel consumption;

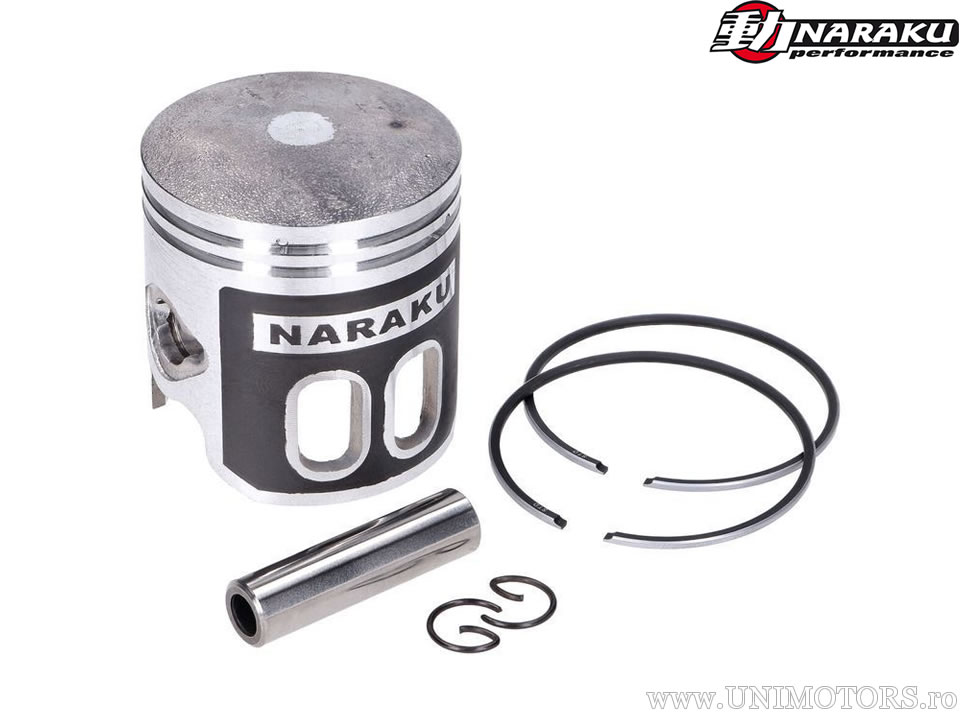

- the kit includes: piston, rings, pin, clips.

Technical Specifications:
- piston diameter: 47 mm;
- piston pin diameter: 10 mm.

The kit includes:
- piston;
- piston rings;
- piston pin;
- piston pin clips.

Complete application list can be found below.
