Piston (diameter 65mm / bolt 16mm / dimension A) - 348512.A0 - Malossi

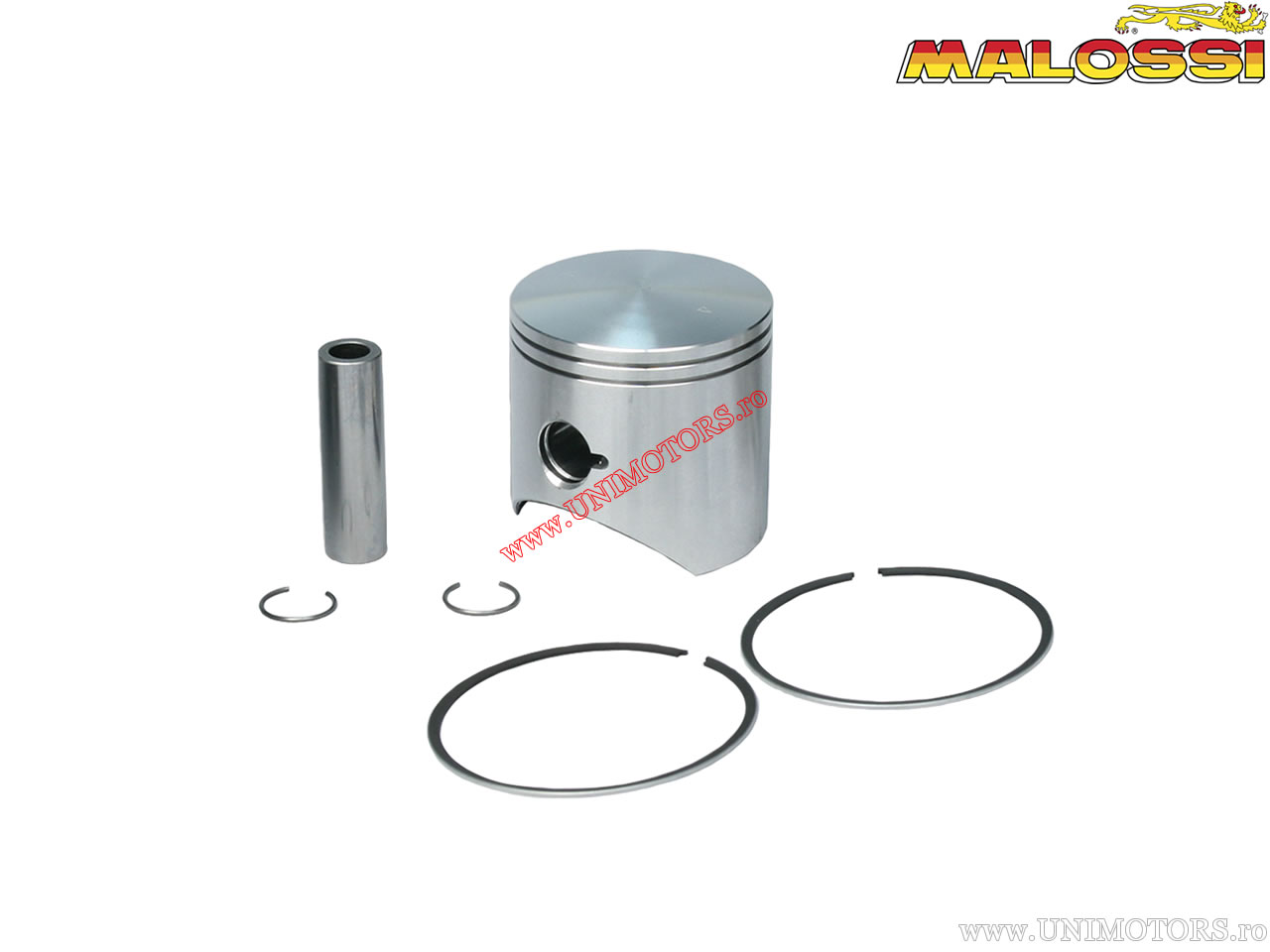

Piston (65mm / 16mm / A) Malossi.

Piston compatible with the following parts:
- Aluminum cylinder set Ø 65 (318237);
- Aluminum cylinder set Ø 65 H2O for Piaggio 125-180cc (3111140);
- Aluminum cylinder Ø 65 (318236);
- All Malossi cylinders, both cast iron and aluminum, are selected by size;
- The range goes from size 0 (smallest piston) to size D (largest piston);
- Each size has an increment of 0.01 mm;
- When ordering a piston, please carefully specify the requested size marking (e.g. 343448 corresponds to size 0);
- Only cast iron cylinders are available in oversized options;
- For pistons produced in the past, oversized options of 0.2 mm and 0.6 mm are available (e.g. 343448.20 - 344375.60);

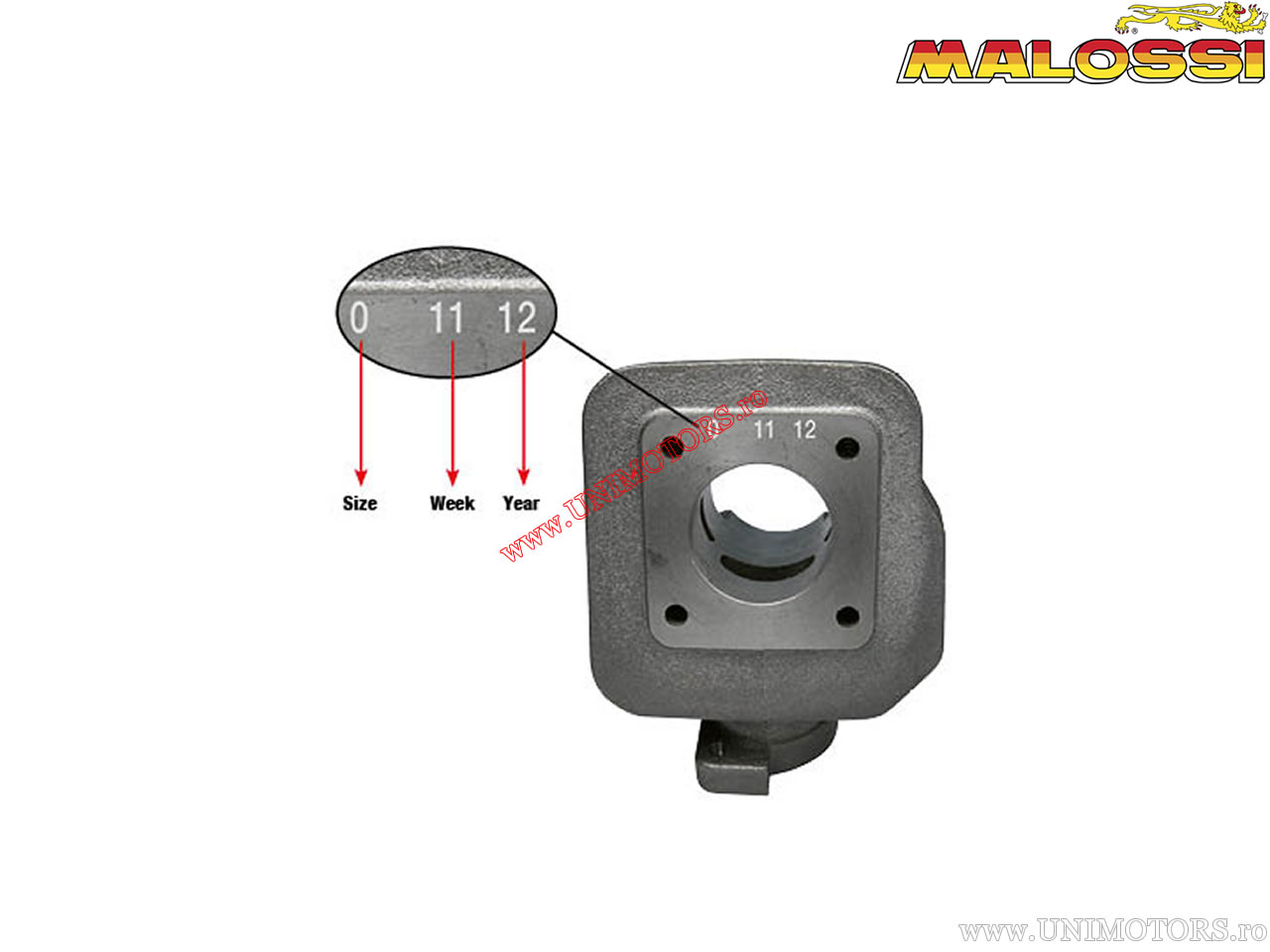

- All Malossi cylinders are selected by size, week number, and year;

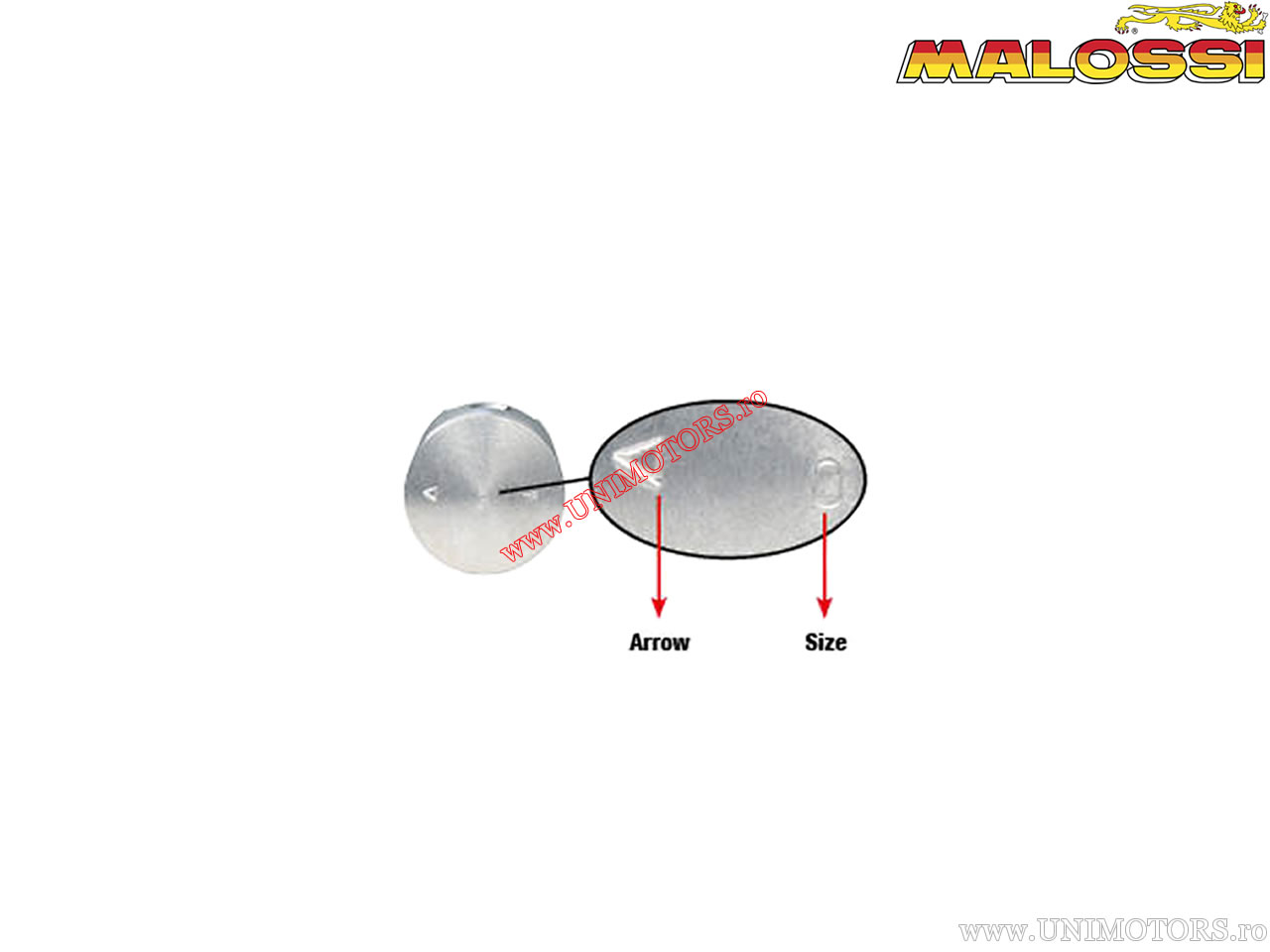

- All Malossi pistons carry their own size marking (number or letter);
- The piston must be inserted into the cylinder with the arrow drawn on the piston head pointing towards the exhaust;
- Piston diameter: 65 mm;
- Pin diameter: 16 mm;
- Semi-trapezoidal rings: 2;
- Size: A.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
