Piston kit - Husaberg FE570 (injection / '09-'12) (99.95-99.97mm) - Wossner

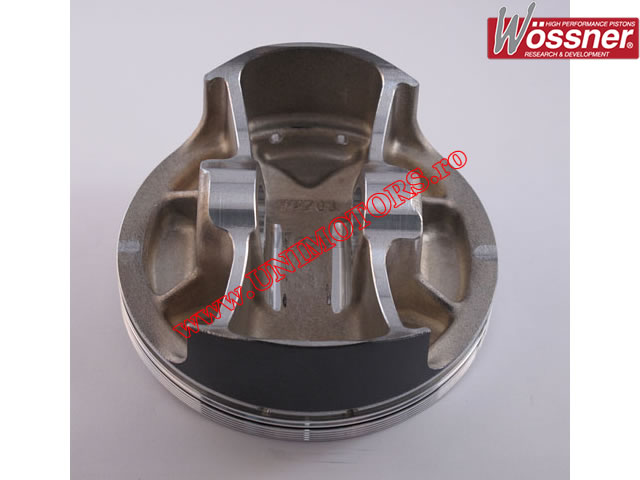

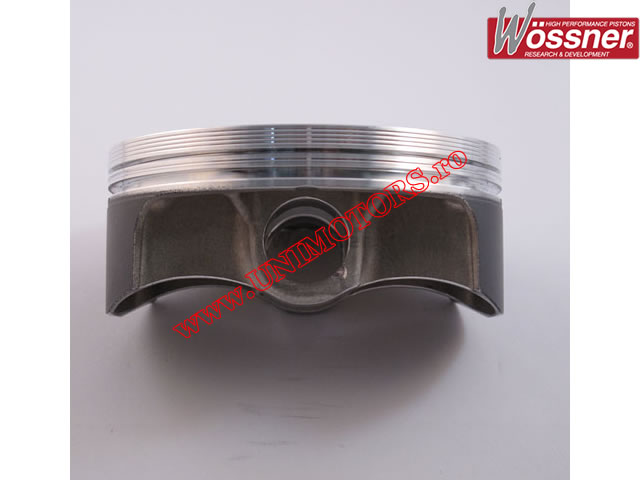

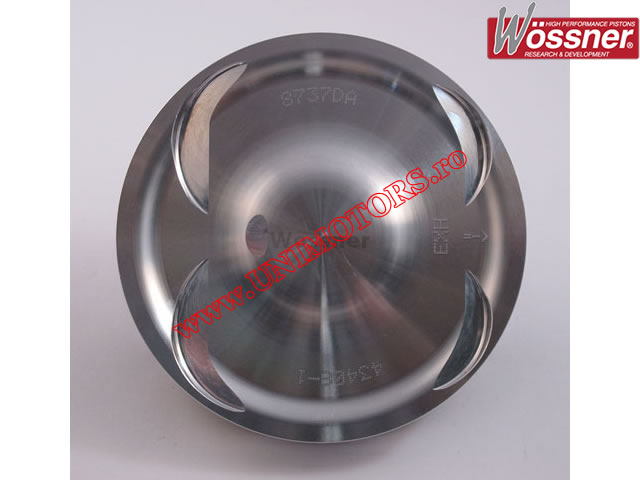

Forged piston kit Wossner for Husaberg FE 570 (fuel injection) manufactured between 2009-2012.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 100.00mm
- thermal clearance: 0.05mm
- compression ratio: 11.80:1 (OEM)
- number of rings: 2 (one compression / one oil)
- pin-to-cap distance (measured from the center of the pin): 24.50mm
- piston pin dimensions: 20x13x51mm.

Available piston sizes:
- A (99.95 mm)
- B (99.96 mm)
- C (99.97 mm)
