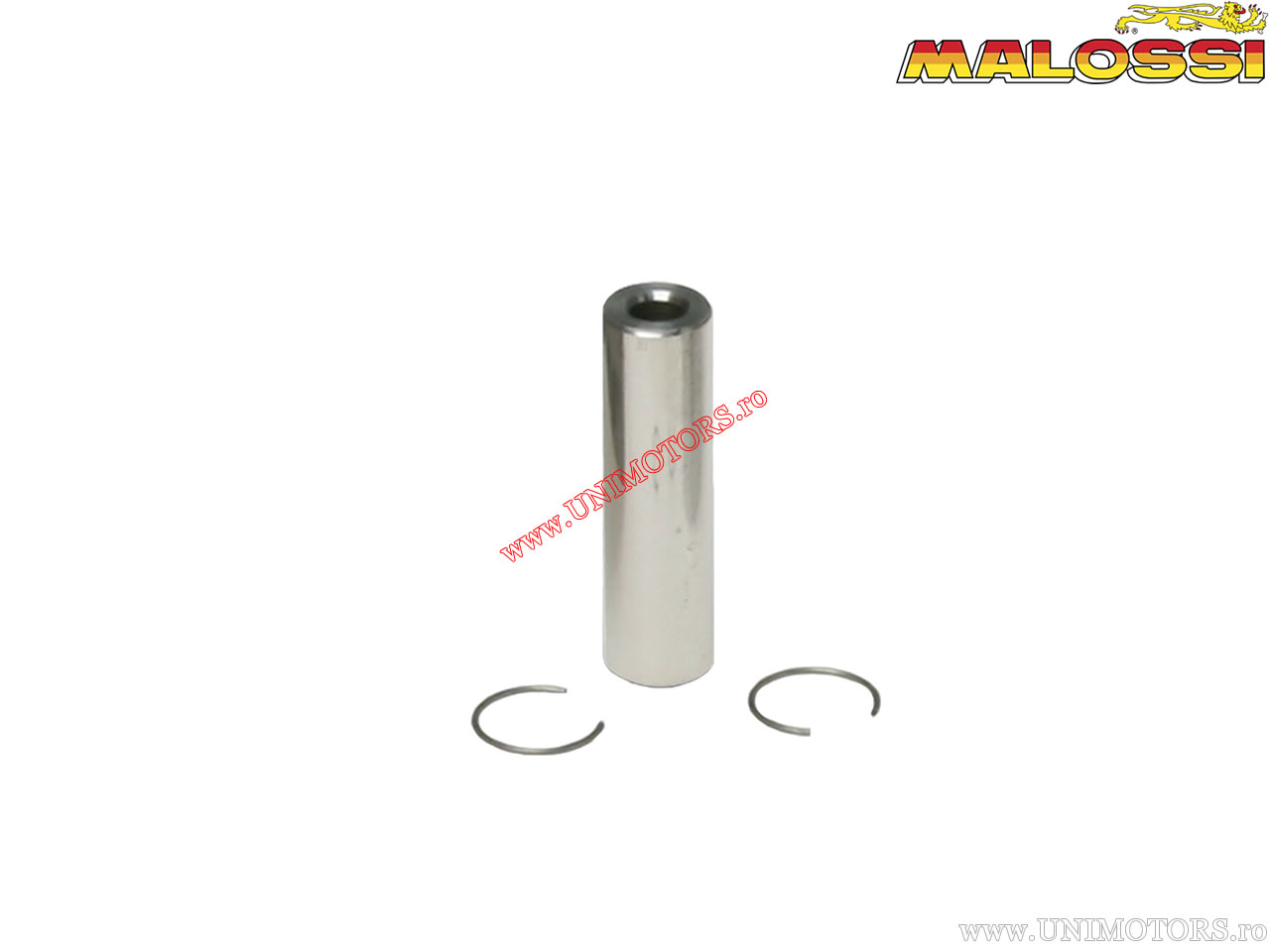

Piston pin (10x5x36mm) - Malossi

Bolt piston (10x5x36mm) Malossi.

Bolt piston compatible with the following parts:
- Complete aluminum cylinder Ø 49 pin Ø 10 I-Tech 4-stroke (3116518);
- Aluminum cylinder Ø 49 pin Ø 10 4-stroke (3116144);
- Aluminum cylinder Ø 45.5 Suzuki ER21 XAP automatic (313194);
- Piston Ø 43 pin Ø 10, 2 rectangular segments B (346751.B0);
- Piston Ø 43 pin Ø 10, 2 rectangular segments D (346751.D0);
- Piston Ø 43 pin Ø 10, 2 rectangular segments E (346751.E0);
- Piston Ø 43.8 pin Ø 10, 2 rectangular segments (346751.80);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment 0 (343197);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment 00 (343197.00);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment AA (343197.AA);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment B (343197.B0);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment BB (343197.BB);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment C (343197.C0);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment CC (343197.CC);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment D (343197.D0);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment E (343197.E0);
- Piston Ø 45.5 pin Ø 10, 1 rectangular segment H (343197.H0);
- Piston Ø 49 pin Ø 10, 3 rectangular segments/lubrication 0 (3416825);
- Piston Ø 49 pin Ø 10, 3 rectangular segments/lubrication A (3416825.A0);
- Piston Ø 49 pin Ø 10, 3 rectangular segments/lubrication B (3416825.B0);
- Piston Ø 49 pin Ø 10, 3 rectangular segments/lubrication C (3416825.C0);
- Inner diameter: 10 mm;
- Thickness: 5 mm;
- Length: 36 mm.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
