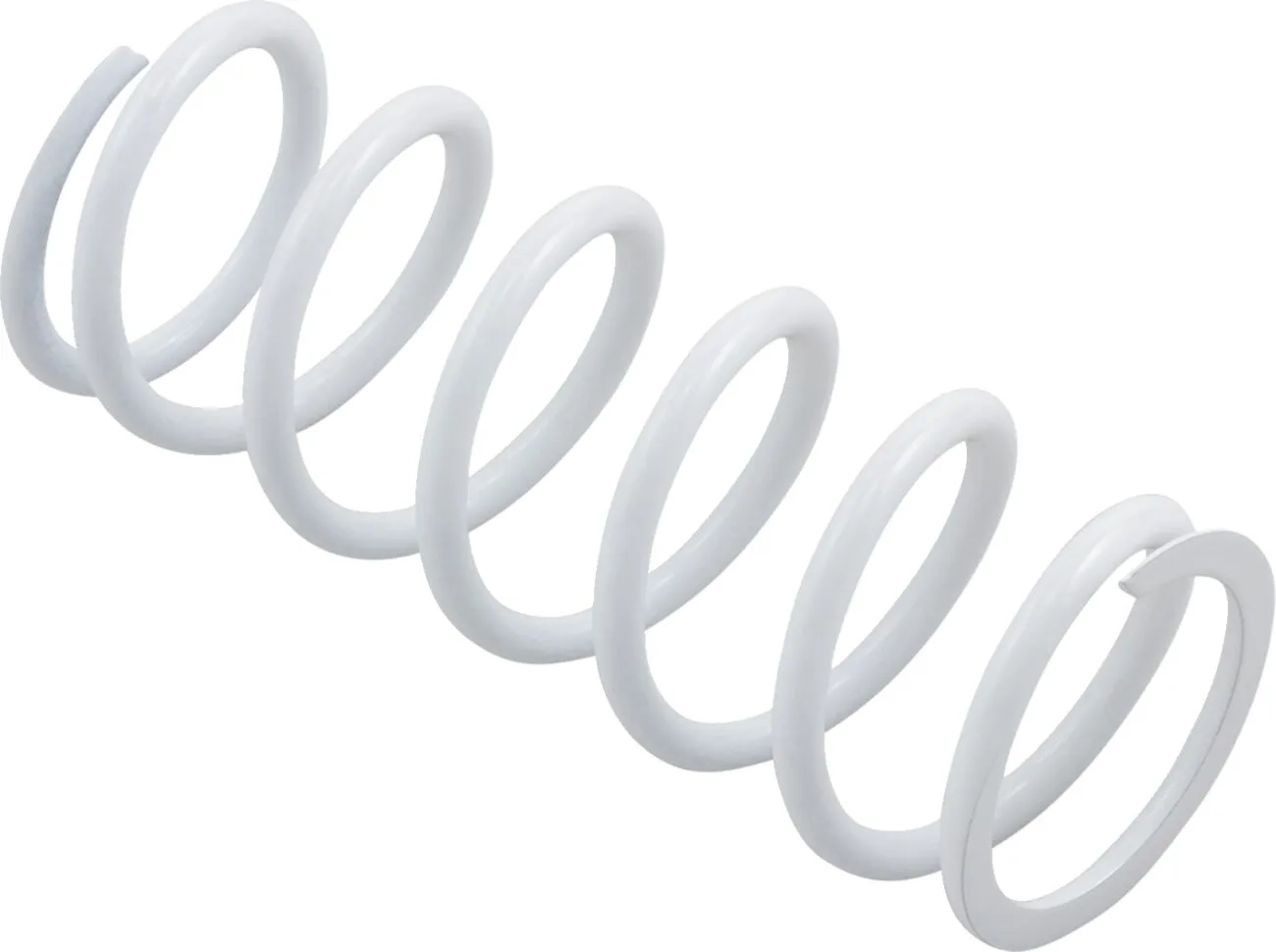

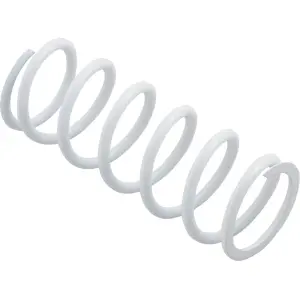

Primary clutch arc (41mm/74mm) - white - Ski-Doo - EPI

Primary clutch spring (41mm/74mm), white, from manufacturer EPI for the following applications: Ski-Doo.

Description:

• Designed to regulate maximum engagement RPM and shift characteristics at peak speeds in CVT systems for snowmobiles
• Manufactured from the highest quality materials for extended service life in harsh conditions
• The spring is known for high reliability and durability, being produced with a 5% tolerance, one of the lowest in the industry for consistent performance

Specifications summary:
Brand: EPI
Supplier part number: SDPS-3
Color/Finish: White
Compressed length: 41 mm (1-5/8")
Compressed load: 190.50 kg (420 lb)
Installed length: 74 mm (2-15/16")
Installed load: 127 kg (280 lb)
Product name: Spring
Style: Primary (drive)
Type: Clutch
Units: Each
