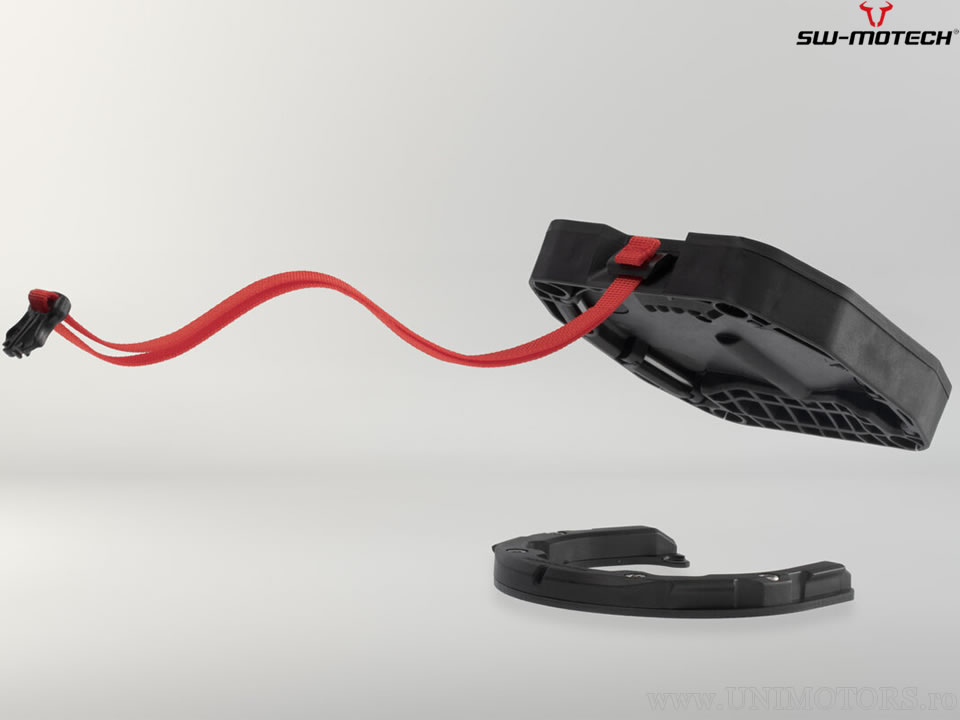

The Quick-Lock PRO tank bag mounting system from SW-Motech is made of black fiberglass-reinforced plastic for KAWASAKI NINJA 650 EX650K (2016-2019) / NINJA 650 EX650M (2019-2022) / NINJA 650 EX650MA2 (2019-2022) / Z 650 ER650H (2016-2019) / Z 650 ER650HA2 (2016-2019) / Z 650 ER650K (2019-2022) / Z 650 ER650KA2 (2019-2022).
Product Description:
The QUICK-LOCK mechanism of the SW-MOTECH tank rings, which has been tried and tested for many years, is now even easier to operate thanks to the magnetic guide aid from Fidlock technology. The positioning of the upper ring has been significantly improved: the sliding upper ring comes pre-assembled on the tank bag with a guide rail, and does not need to be drilled. In this way, the upper ring can be custom-aligned on the guide rail on the underside of the tank bag. Once the correct position is found, the upper ring is screwed tightly. When switching to another motorcycle, the position of the upper ring can be adjusted accordingly. The magnetic guide, developed by Fidlock, complements the already advanced SW-MOTECH QUICK-LOCK mechanical locking system: magnets guide the upper ring into the correct position on the tank ring, and the lock snaps firmly into place. The strength of the magnets supports the positioning of the tank bag. Attach the tank bag in a single step and go – your luggage is secure with this smart solution. The mechanical locking mechanism secures the tank bag, while the magnets bring both parts of the ring together. The robust fiberglass-reinforced plastic, with its high-precision locking geometry, ensures that the tank bag remains firmly in place in all situations. The patented PRO tank ring is made to fit the fuel filler neck of the motorcycle model. This ensures the best possible positioning on the tank.
- motorcycle-specific adapter ring for the best fit and custom solutions;

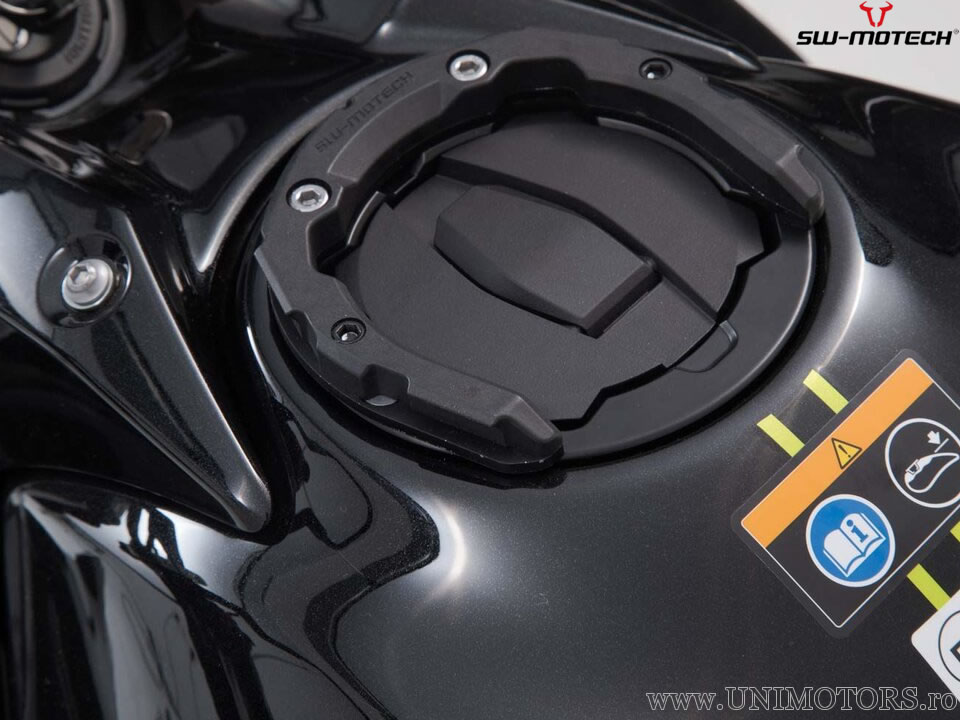

- simple mounting on the tank neck;
- magnetic guide aid in the PRO tank ring for easy attachment;
- quick release via pull straps allows you to remove the PRO tank bag with a single movement;
- the patented PRO tank ring provides a secure hold for PRO tank bags;
- easy refueling, the tank cap can be opened as usual;
- made of fiberglass-reinforced polyamide;
- paint protection solution: the tank bag does not rest on the tank;
- SW-Motech code: TRT0078731200B.
Included in delivery:

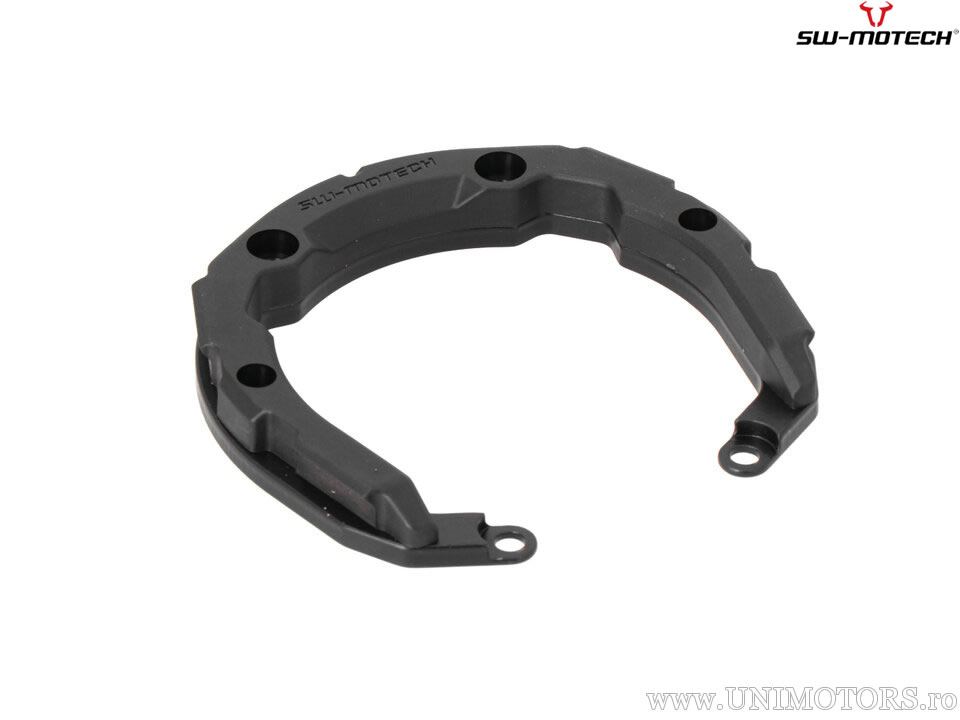

- 1 x PRO tank ring;
- 1 x tank ring adapter;
- 2 x height increase elements;
- mounting instructions;
- mounting material.
Details:
- material: fiberglass-reinforced polyamide;
- color: black;
- total weight: approx. 0.4 kg.
Note:
- two height increase elements of 6 mm and 12 mm are included in the delivery, as well as a tank ring adapter. This replaces the factory-installed part;
- PRO series tank rings cannot be combined with EVO tank bags.
The complete application list can be found below.
