Quick-Lock PRO Tank Bag Mounting System - for 5-bolt cap - Honda models - SW-Motech

The Quick-Lock PRO tank bag mounting system from SW-Motech is made of black fiberglass-reinforced plastic for HONDA CB1000R SC80 (2018-2020) / CB1000R SC80 (2021-) / CB1100 EX SC78 (2016-) / CB1100 RS SC78 (2016-) / CB125R (CBF125NA) JC79 (2017-2020) / CB125R (CBF125NA) JC91 (2020-) / CB300R NC55 (2018-) / CB500 HORNET PC71 (2023-) / CB500F PC58 (2016-2018) / CB500F PC63 (2018-) / CB500X PC59 (2016-2018) / CB650F RC75 (2014-2016) / CB650F RC97 (2016-2018) / CB650R RH02 (2018-) / CB650R RH02 (2018-) / CB650R RH08 (2019-) / CB650R RH08 (2019-) / CB750 HORNET RH12 (2022-) / CB750 HORNET RH12 (2022-) / CBR1000RR FIREBLADE SC59 (2014-2016) / CBR1000RR FIREBLADE SC77 (2017-) / CBR1000RR-R FIREBLADE SC82 (2019-) / CBR1000RR-R FIREBLADE SP SC82 (2019-) / CBR500R PC44 (2016-2016) / CBR500R PC57 (2016-2018) / CBR500R PC62 (2018-) / CBR650F RC74 (2013-2016) / CBR650F RC96 (2016-2018) / CBR650R RH01 (2018-2020) / CBR650R RH01 (2018-2020) / CBR650R RH01 (2021-) / CBR650R RH01 (2021-) / CL500 PC67 (2022-) / CRF1000L AFRICA TWIN ADVENTURE SPORTS SD06 (2018-) / CRF1000L AFRICA TWIN SD04 (2015-2017) / CRF1000L AFRICA TWIN SD06 (2017-) / CRF1100L AFRICA TWIN ADVENTURE SPORTS ES SD14 (2023-) / CRF1100L AFRICA TWIN ADVENTURE SPORTS SD09 (2019-) / CRF1100L AFRICA TWIN ES SD13 (2023-) / CRF1100L AFRICA TWIN SD08 (2019-) / CRF1100L AFRICA TWIN SD13 (2023-) / MONKEY Z125MA (2018-) / NT1100A SC84 (2021-) / NT1100D SC84 (2021-) / VFR1200X CROSSTOURER SC70 (2014-2015) / VFR1200X CROSSTOURER SC76 (2015-) / VFR800F RC79 (2014-) / VFR800X CROSSRUNNER RC60 (2014-2014) / XL750 TRANSALP RD16 (2022-) / XL750 TRANSALP RD16 (2022-).

Product Description:
The QUICK-LOCK mechanism of the SW-MOTECH tank rings, which has been tried and tested for many years, can now be operated even more easily thanks to the magnetic guide aid from Fidlock technology. The positioning of the upper ring has been significantly improved: the sliding upper ring comes pre-assembled on the tank bag with a guide rail, and does not need to be drilled. In this way, the upper ring can be custom-aligned on the guide rail on the underside of the tank bag. Once the correct position is found, the upper ring is screwed tightly. When switching to another motorcycle, the position of the upper ring can be adjusted accordingly. The magnetic guide, developed by Fidlock, complements the already advanced SW-MOTECH QUICK-LOCK mechanical locking system: magnets guide the upper ring into the correct position on the tank ring, and the lock snaps firmly into place. The strength of the magnets supports the positioning of the tank bag. Attach the tank bag in a single step and go – your luggage is secure with this smart solution. The mechanical locking mechanism secures the tank bag, while the magnets bring both parts of the ring together. The robust fiberglass-reinforced plastic, with its high-precision locking geometry, ensures that the tank bag remains firmly in place in all situations. The patented PRO tank ring is made to fit the filler neck of the specific motorcycle model. This ensures the best possible positioning on the tank.
- motorcycle-specific adapter ring for best fit and custom solutions;

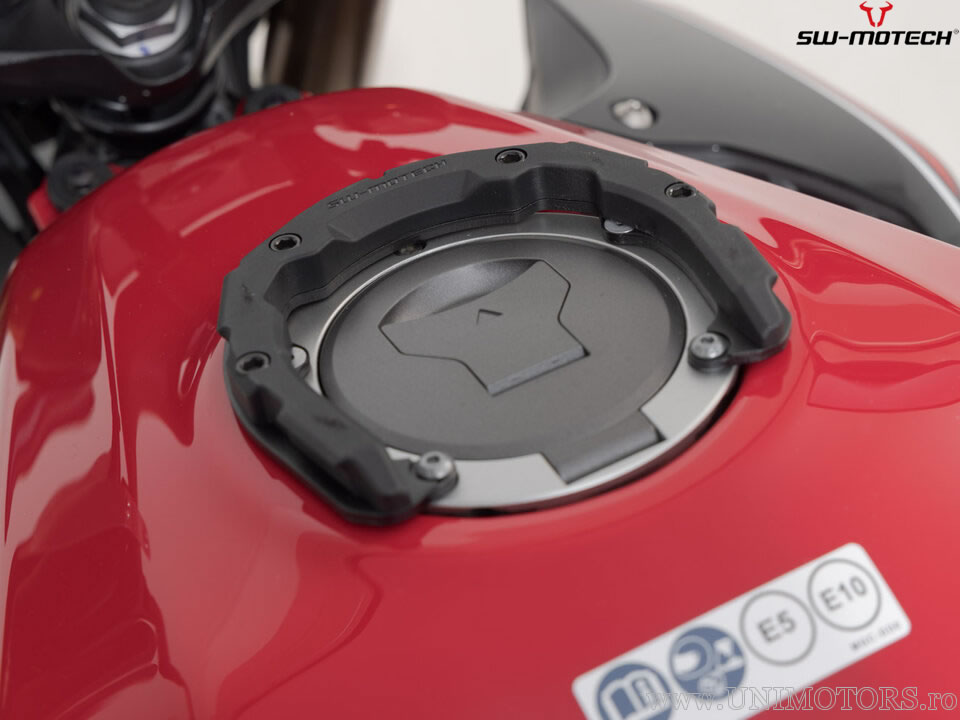

- simple mounting on the tank filler neck;
- magnetic guide aid in the PRO tank ring for easy attachment;

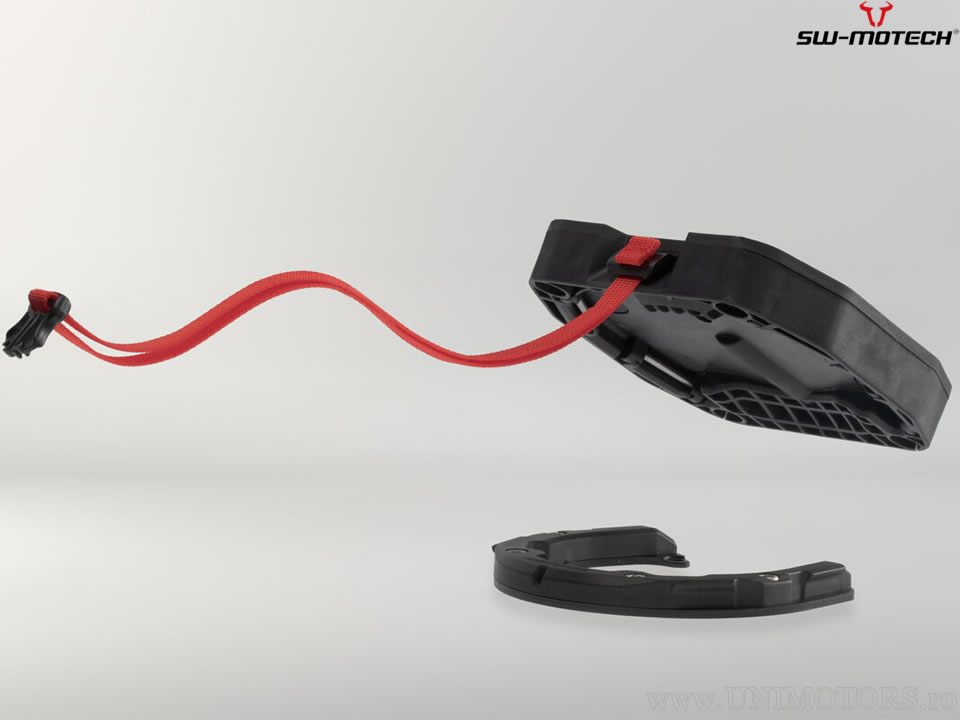

- quick release via pull straps allows you to remove the PRO tank bag with a single movement;
- the patented PRO tank ring provides a secure hold for PRO tank bags;
- easy refueling, the tank cap can be opened as usual;
- made of fiberglass-reinforced polyamide;
- paint protection solution: the tank bag does not rest on the tank;
- SW-Motech code: TRT0078730400B.

Included in delivery:

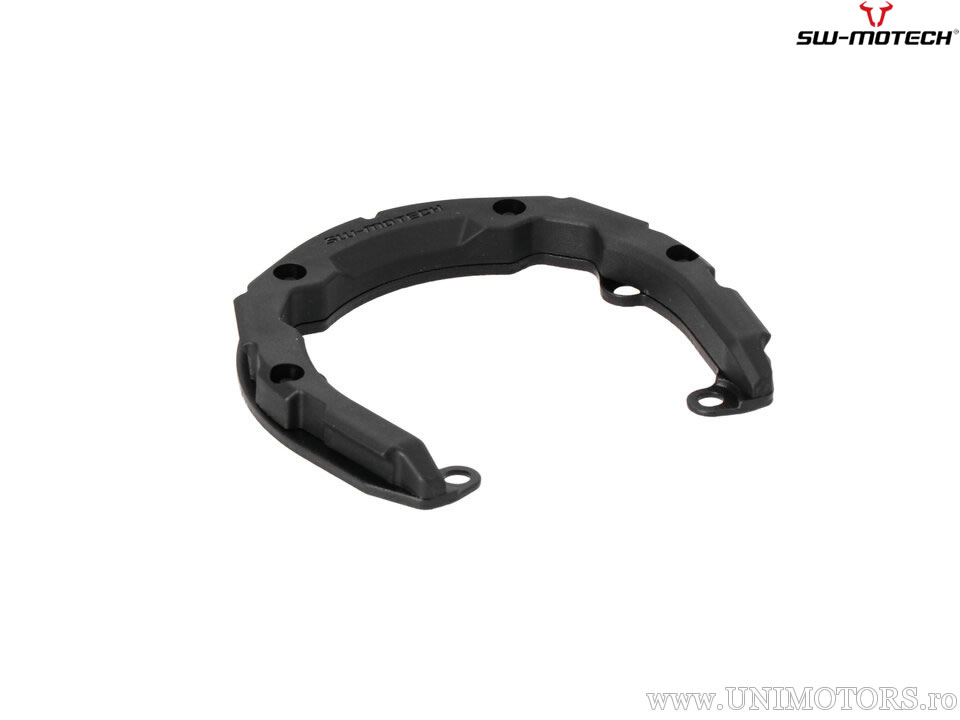

- 1 x PRO tank ring;
- mounting instructions;
- mounting material.

Details:
- material: fiberglass-reinforced polyamide;
- color: black;
- total weight: approx. 0.1 kg.

Note:
- PRO series tank rings cannot be combined with EVO tank bags.

The complete application list can be found below.
