Quick-Lock PRO Tank Bag Mounting System - for 5-bolt cap - Suzuki models - SW-Motech

The Quick-Lock PRO tank bag mounting system from SW-Motech is made of black fiberglass-reinforced plastic for SUZUKI GSF 1250 BANDIT S WVCH (2007-2016) / GSF 1250 BANDIT WVCH (2006-2015) / GSF 650 BANDIT S WVB5 (2005-2006) / GSF 650 BANDIT S WVCJ (2007-2008) / GSF 650 BANDIT S WVCZ (2009-2016) / GSF 650 BANDIT WVB5 (2004-2006) / GSF 650 BANDIT WVCJ (2006-2008) / GSF 650 BANDIT WVCZ (2009-2016) / GSR 600 WVB9 (2005-2010) / GSR 750 C5 (2011-2016) / GSX 1250 F ABS WVCH (2009-2015) / GSX 1300 R HAYABUSA WVCK (2008-2020) / GSX 600 F GN72B (1988-1997) / GSX 650 F WVCJ (2007-2016) / GSX 750 F GR78A (1988-1997) / GSX 750 F WVAK (2002-2005) / GSX-R 1000 WDM0 (2016-) / GSX-R 1000 WVB6 (2005-2006) / GSX-R 1000 WVBZ (2003-2004) / GSX-R 1000 WVCL (2007-2008) / GSX-R 1000 WVCY (2009-2016) / GSX-R 600 C3 (2011-) / GSX-R 600 WVB2 (2003-2005) / GSX-R 600 WVCE (2005-2007) / GSX-R 600 WVCV (2007-2010) / GSX-R 750 C4 (2011-2017) / GSX-R 750 WVB3 (2003-2005) / GSX-R 750 WVBD (1999-2003) / GSX-R 750 WVCF (2005-2007) / GSX-R 750 WVCW (2008-2010) / GSX-S 750 WC50 (2016-) / GSX-S 750 WC51 (2018-) / GSX-S 750 WC52 (2018-) / GSX-S1000 F DG (2015-) / GSX-S1000 GT WEK0 (2021-) / GSX-S1000 WDG0 (2016-2020) / GSX-S1000 WEK0 (2021-) / GSX-S1000S KATANA WDG0 (2019-) / GSX-S950 WEK1 (2021-) / GSX-S950 WEK2 (2021-) / SFV 650 GLADIUS WVCX (2009-2016) / SV 1000 S WVBX (2003-2005) / SV 1000 WVBX (2003-2005) / SV 650 S WVBY (2003-2008) / SV 650 WVBY (2003-2008) / SV650 ABS WCX0 (2015-) / SV650 ABS WCX1 (2015-) / SV650X WCX0 (2018-) / SV650X WCX1 (2018-) / V-STROM 1050DE WEF0 (2022-) / V-STROM 250 WDS0 (2018-2021) / V-STROM 650 C7 (2011-2016) / V-STROM 650 WC70 (2016-) / V-STROM 650 WC71 (2016-) / V-STROM 650XT C7 (2014-2016) / V-STROM 650XT WC70 (2016-) / V-STROM 650XT WC71 (2016-).

Product Description:
The QUICK-LOCK locking mechanism of the SW-MOTECH tank rings, which has been tried and tested for many years, can now be operated even more easily thanks to the magnetic guide aid from Fidlock technology. The positioning of the upper ring has been significantly improved: the sliding upper ring comes pre-assembled on the tank bag with a guide rail, and does not need to be drilled. In this way, the upper ring can be custom-aligned on the guide rail on the underside of the tank bag. Once the correct position is found, the upper ring is screwed tightly. When switching to another motorcycle, the position of the upper ring can be adjusted accordingly. The magnetic guide, developed by Fidlock, complements the already advanced SW-MOTECH QUICK-LOCK mechanical locking system: magnets guide the upper ring into the correct position on the tank ring, and the lock snaps firmly into place. The strength of the magnets supports the positioning of the tank bag. Attach the tank bag in a single step and go – your luggage is secure with this smart solution. The mechanical locking mechanism secures the tank bag, while the magnets bring both parts of the ring together. The robust fiberglass-reinforced plastic, with its high-precision locking geometry, ensures that the tank bag remains firmly in place in all situations. The patented PRO tank ring is made to fit the filler neck of the specific motorcycle model. This ensures the best possible positioning on the tank.
- motorcycle-specific adapter ring for the best fit and custom solutions;

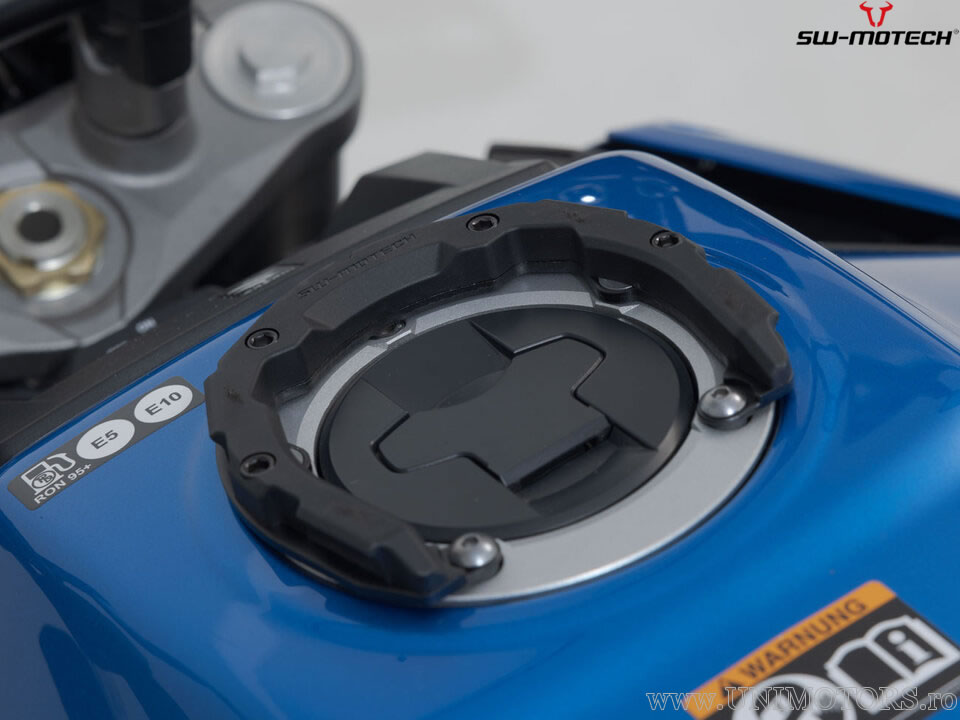

- simple mounting on the tank filler neck;
- magnetic guide aid in the PRO tank ring for easy attachment;

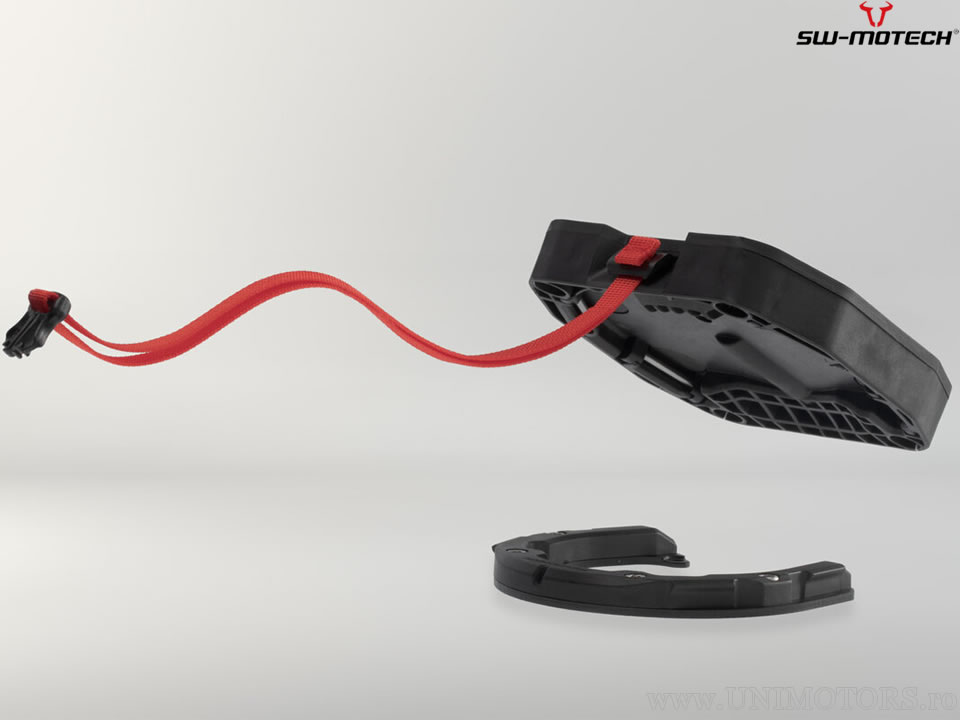

- quick release via pull straps allows you to remove the PRO tank bag with a single movement;
- the patented PRO tank ring provides a secure hold for PRO tank bags;
- easy refueling, the tank cap can be opened as usual;
- made of fiberglass-reinforced polyamide;
- paint protection solution: the tank bag does not rest on the tank;
- SW-Motech code: TRT0078712500B.

Included in delivery:

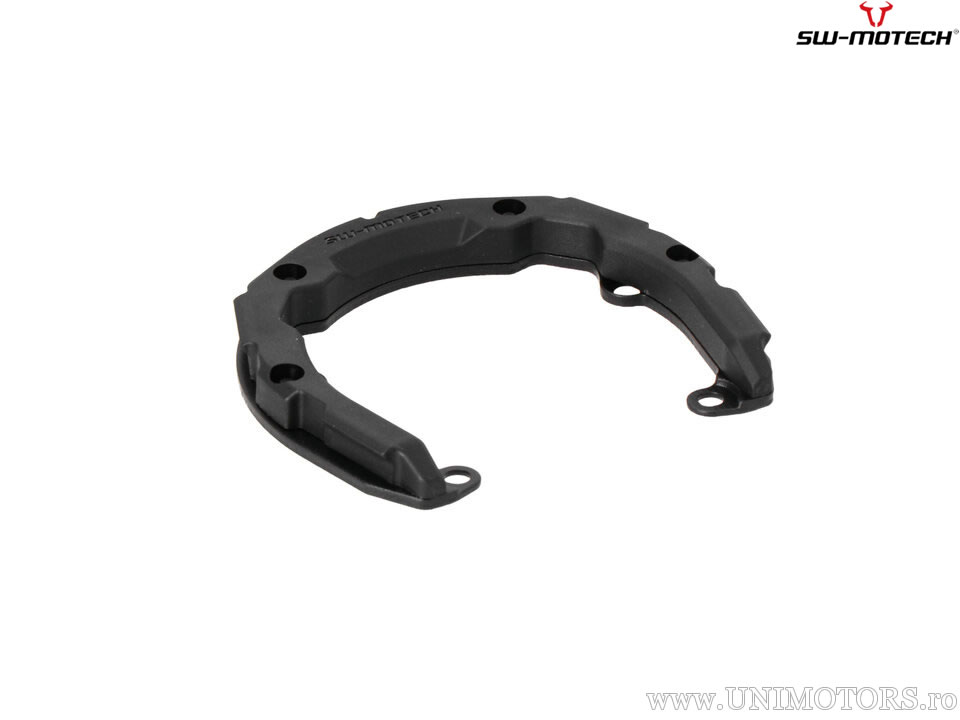

- 1 x PRO tank ring;

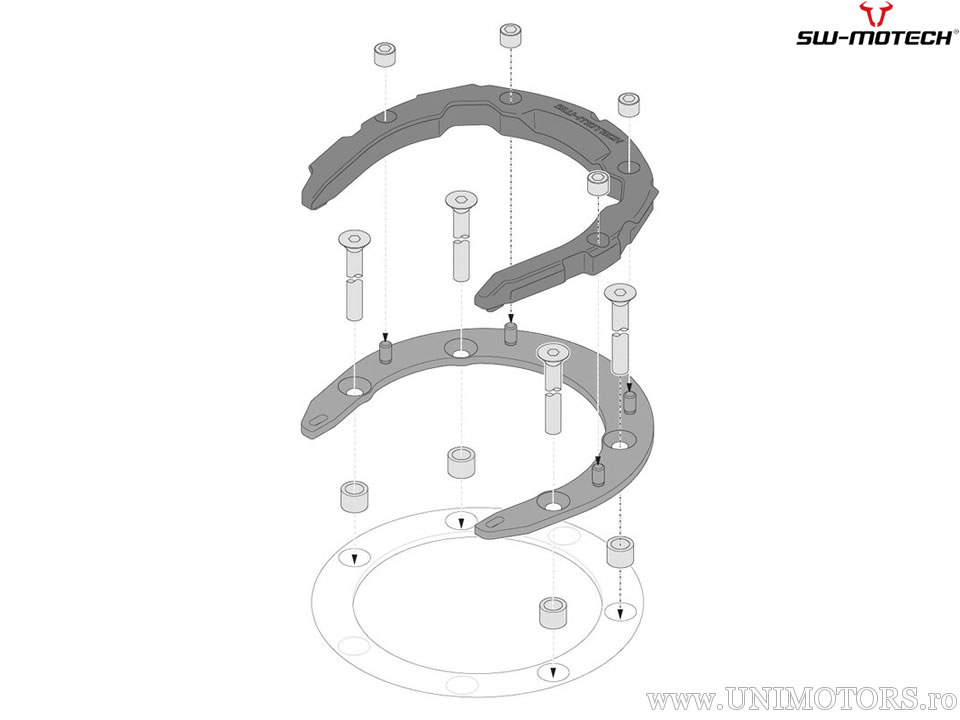

- mounting instructions;
- mounting material.

Details:
- material: fiberglass-reinforced polyamide;
- color: black;
- total weight: approx. 0.1 kg.

Note:
- PRO series tank rings cannot be combined with EVO tank bags.

The complete application list can be found below.
