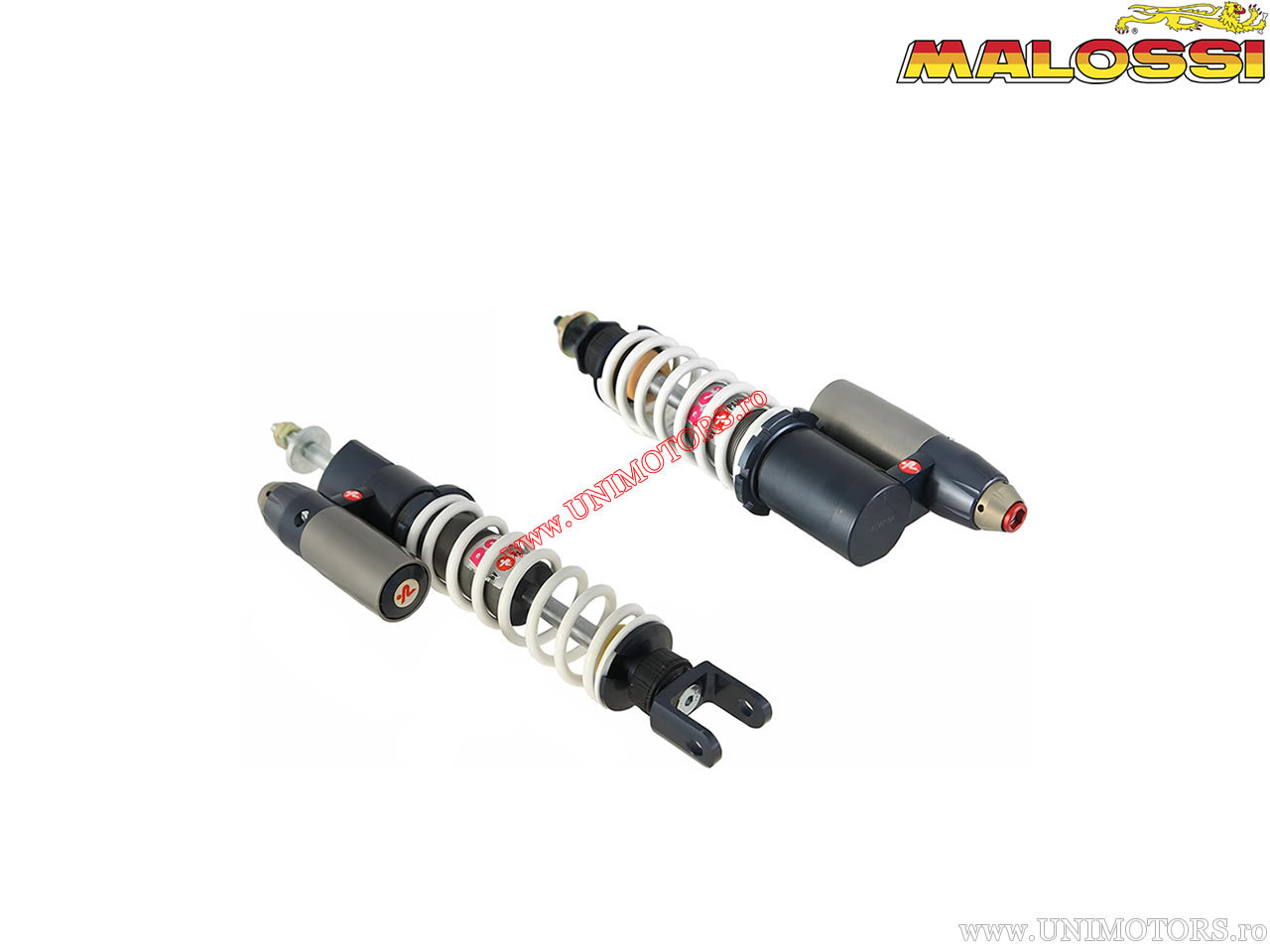

Telescoape fata / spate RS24/10-R (180mm / 290mm) Malossi. Among the most important applications are: Piaggio Quartz 50 H2O 2T (1991-1994) / Zip SP 50 H2O 2T (1996-2000) / Zip SP2 50 H2O 2T E1 (2001-2005) / Zip SP2 50 H2O 2T E2 (2006-2013).
- Type: oil-pneumatic shock absorber with separate compensating reservoir;
- Use: Competition scooter;
- Shock absorber shaft Ø 14 mm made of steel 38 NiCrMo4UNI 7845;
- Piston Ø 36 mm with two independent lamellar packs (one for compression, one for expansion);
- New laminar steel system for extremely precise calibration;
- Piston guide shoe Lubriflon PTFEB 70 (modified compound loaded with bronze);
- Sliding on DU GUIDE bushing (compound obtained by sintering a layer of spheroidal bronze);
- Micrometric adjustment of spring preload via ring nuts;
- Hydraulic expansion braking adjustment on about 24 positions;
- Dual adjustment of hydraulic compression braking, selectable on about 10 positions each;
- Special low-viscosity oil, practically unaffected by temperature changes;
- External compensating reservoir allowing an increase in the amount of internal fluids;
- These special shock absorbers are the best technological expression available today for the public;
- Front travel: 180 mm;
- Rear travel: 290 mm;
- Class: Race.
Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
