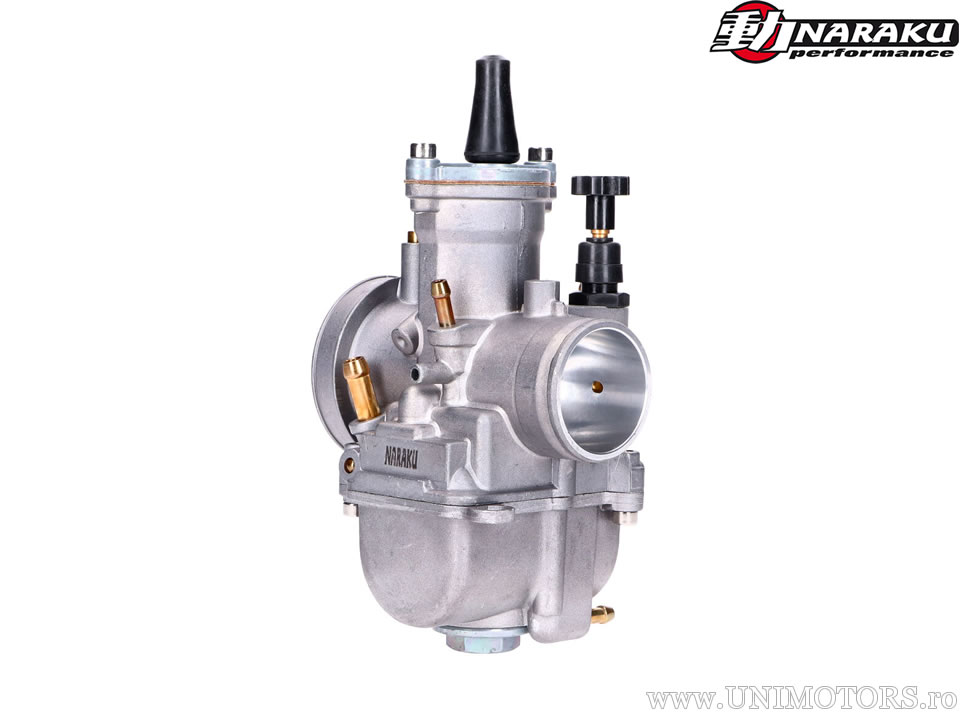

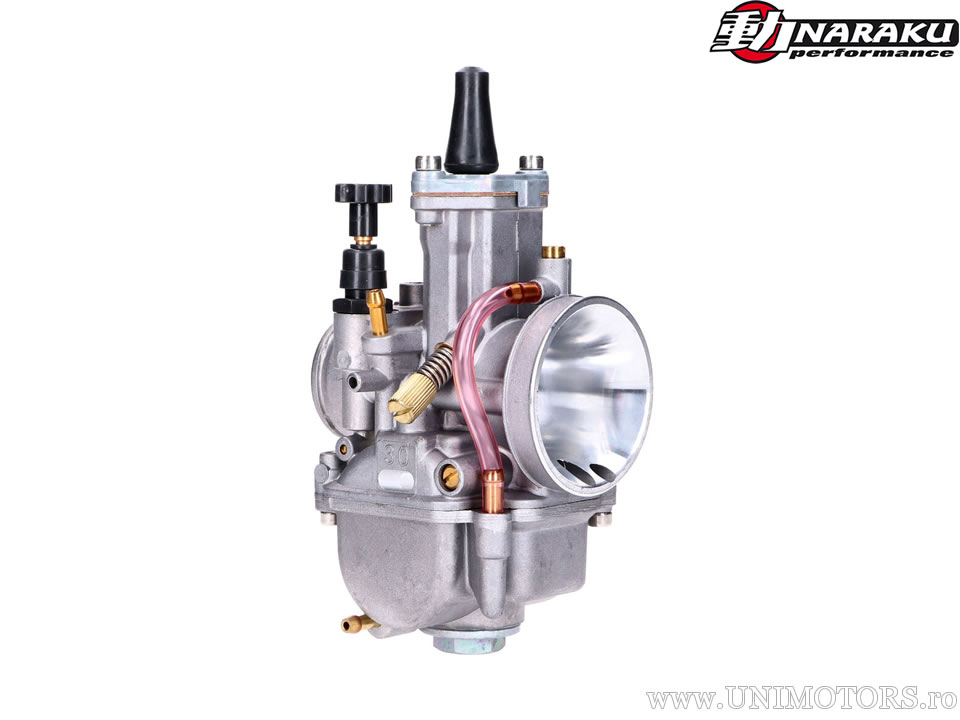

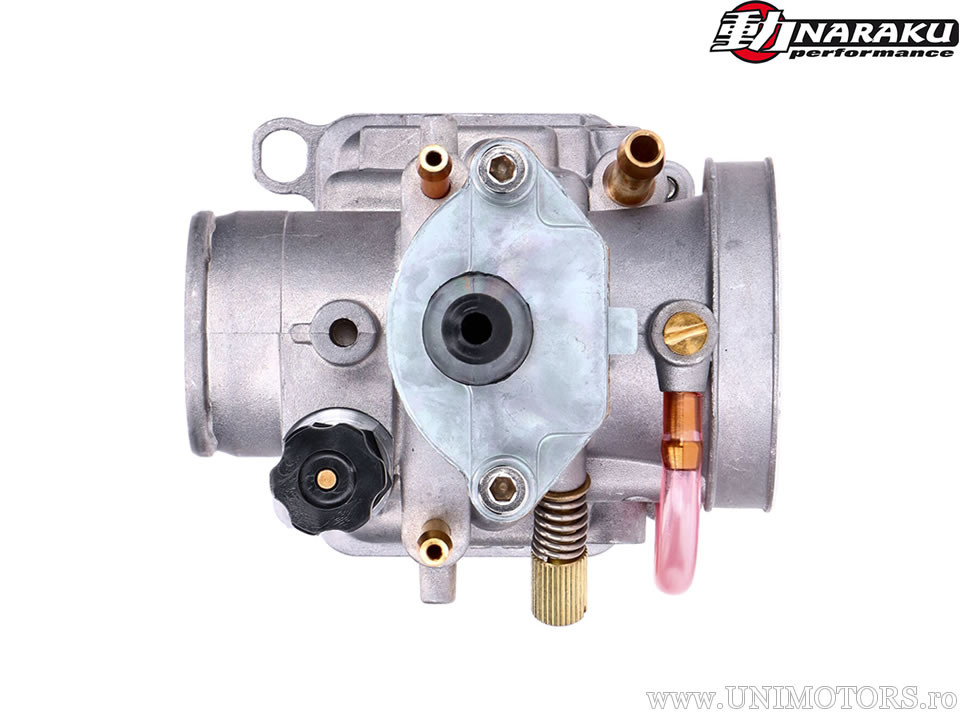

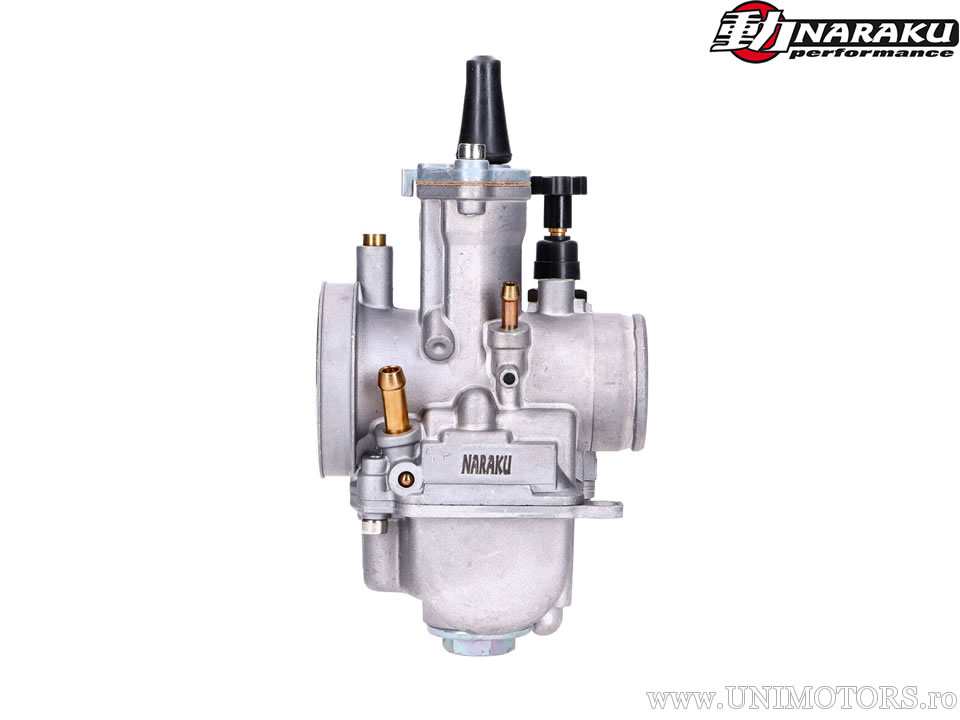

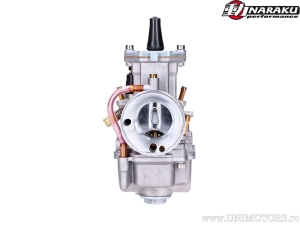

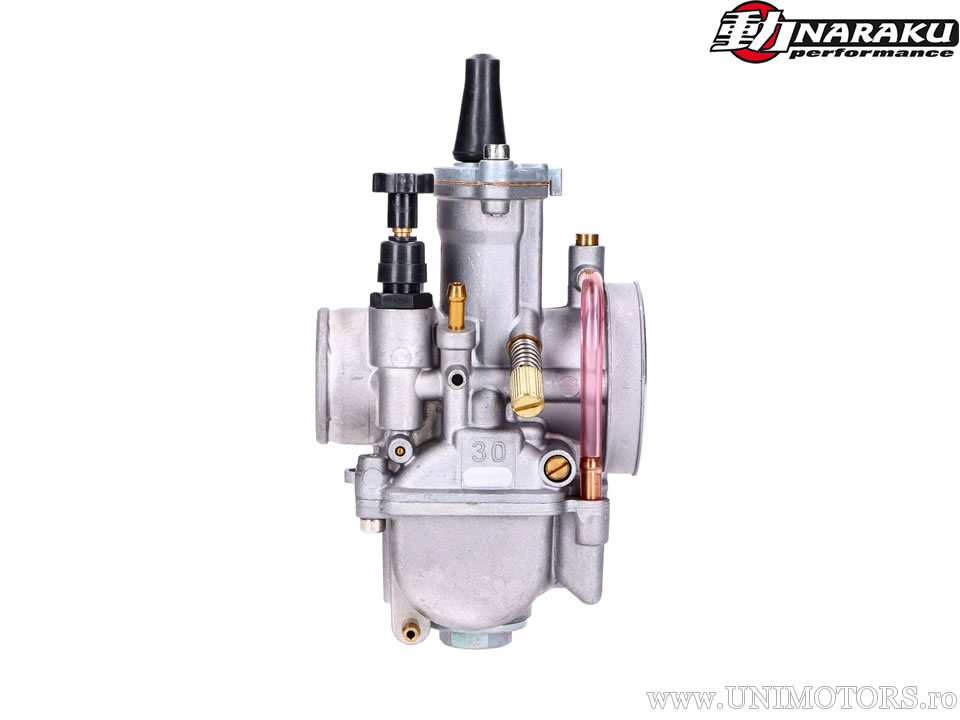

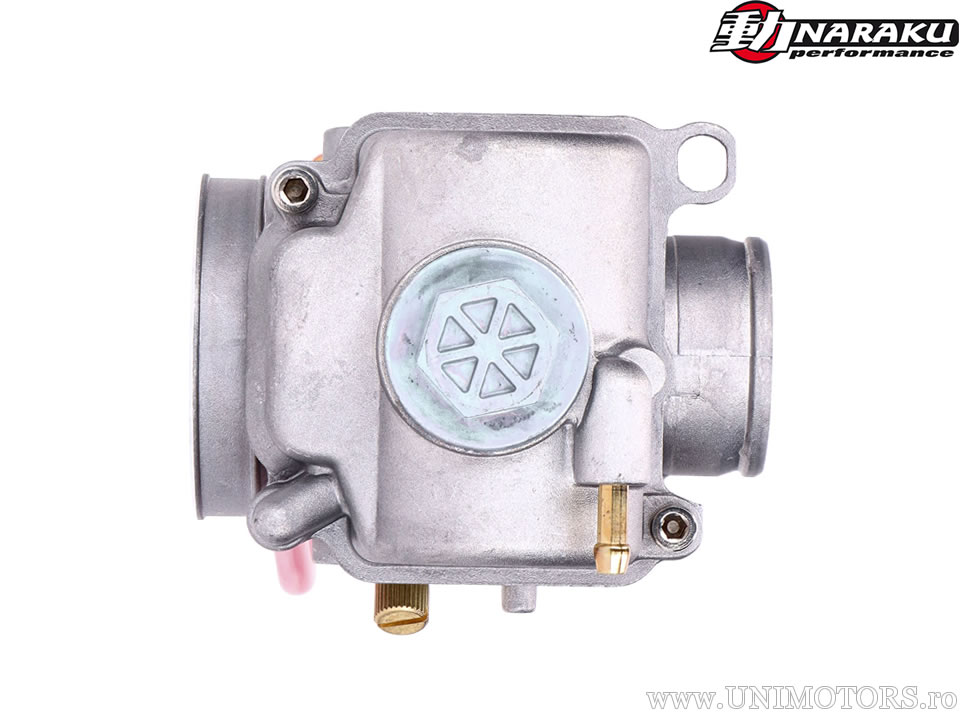

Racing Carburetor V.2 (30mm diameter) - Naraku

Racing Carburetor V.2 (30mm) from manufacturer Naraku.

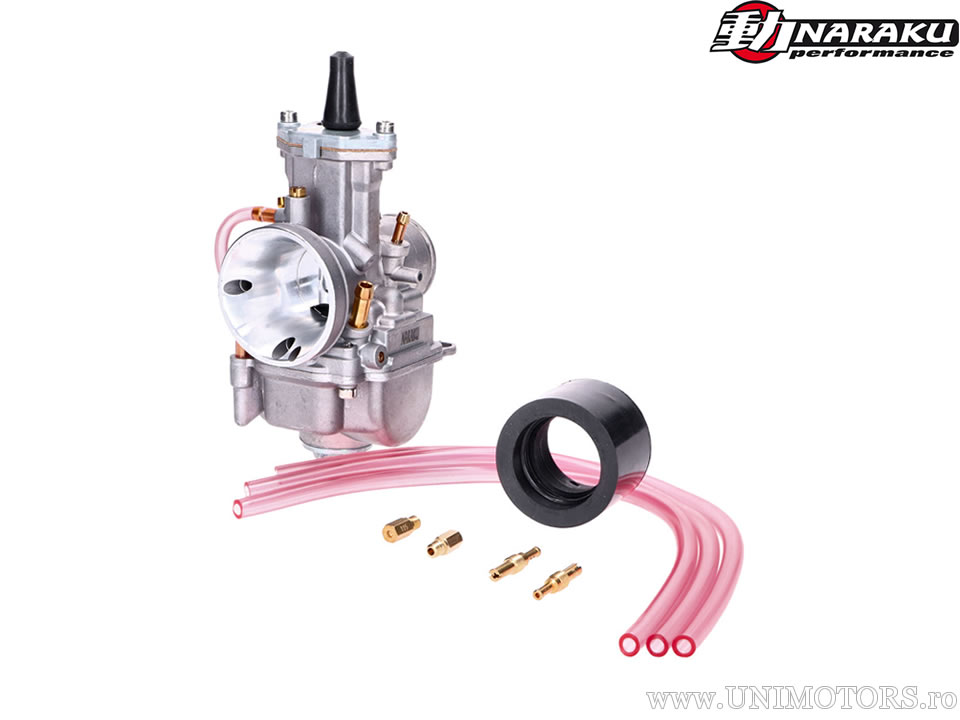

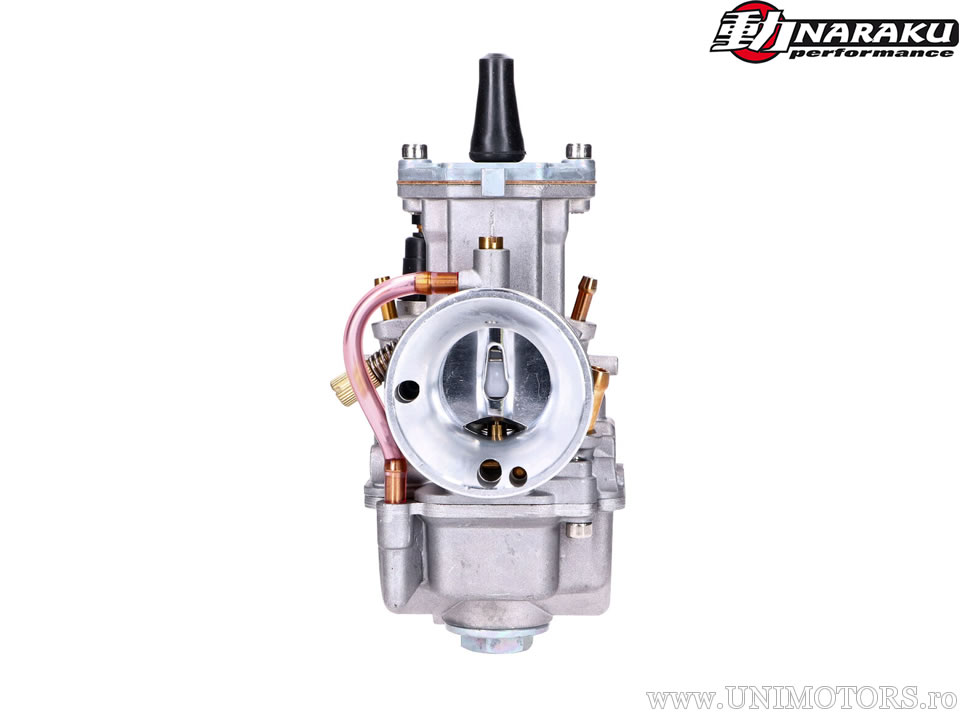

The Naraku Racing V.2 carburetor with flat slide is especially suitable for high-performance tuned 2-stroke engines with a displacement of 70-90 cc and 4-stroke engines from 125-300 cc. Compared to conventional flat slide carburetor versions, this Naraku carburetor features a rounded intake channel and Powerjet function. This machined intake funnel ensures better airflow and, therefore, improved engine response. The Powerjet function supports performance under full load. The delivery includes a connecting rubber (intake manifold), a tuning set, and additional hoses. The carburetor has a manual choke and no vacuum connection.

Technical specifications:
- carburetor diameter: 30 mm;
- main jet: 125 (installed);
- secondary jet: 38 (installed);
- secondary jets (tuning set): 32, 35;
- intake manifold connection diameter: 35 mm;
- air filter connection diameter: 50 mm.

The complete application list can be found below.
