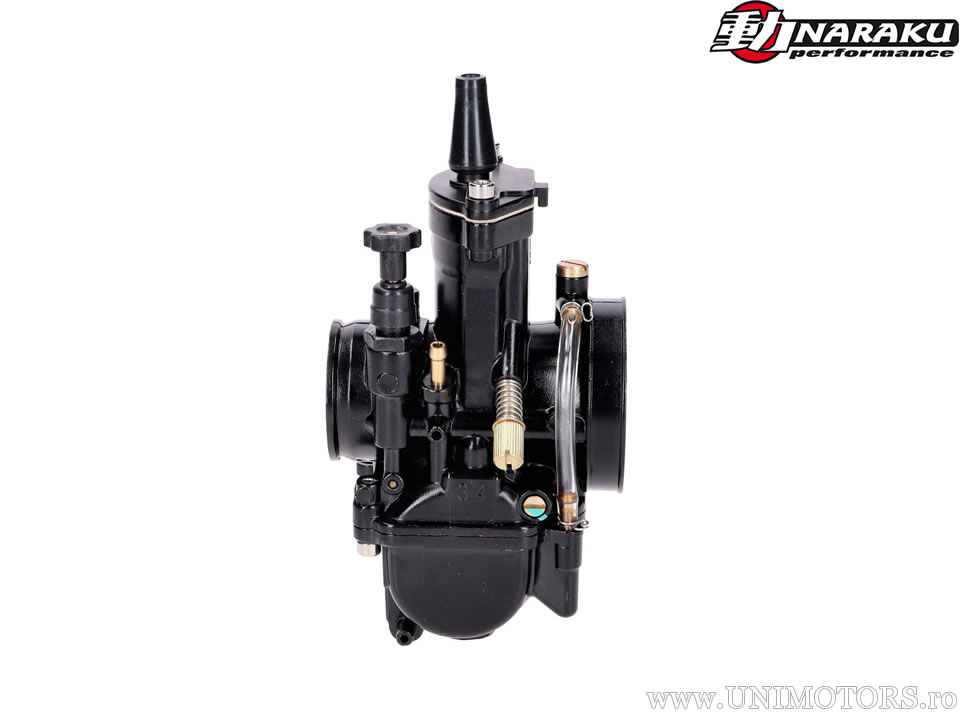

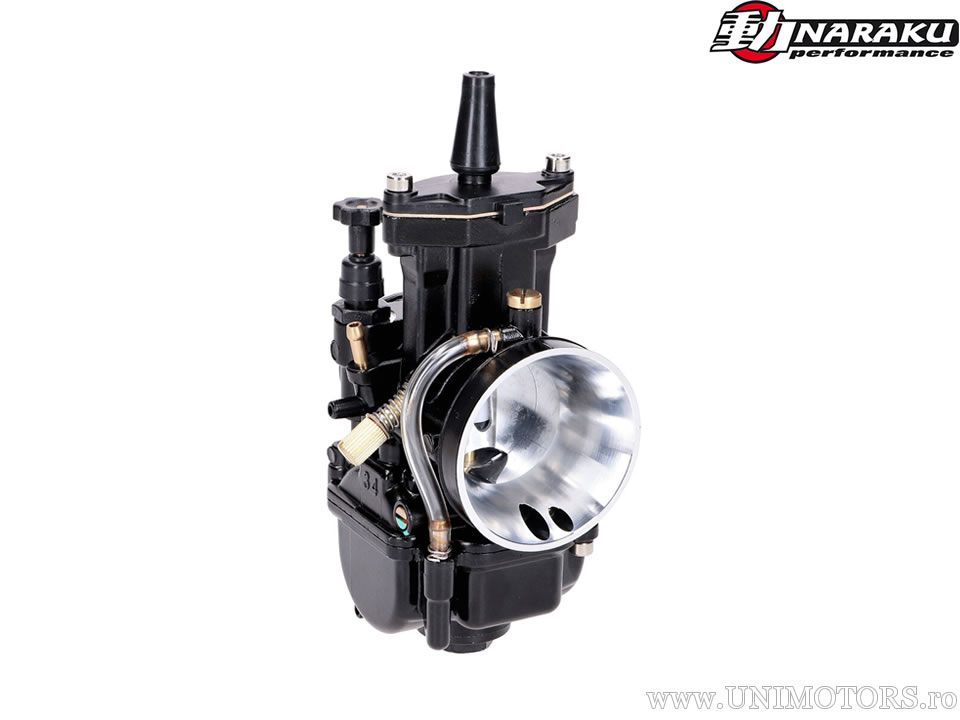

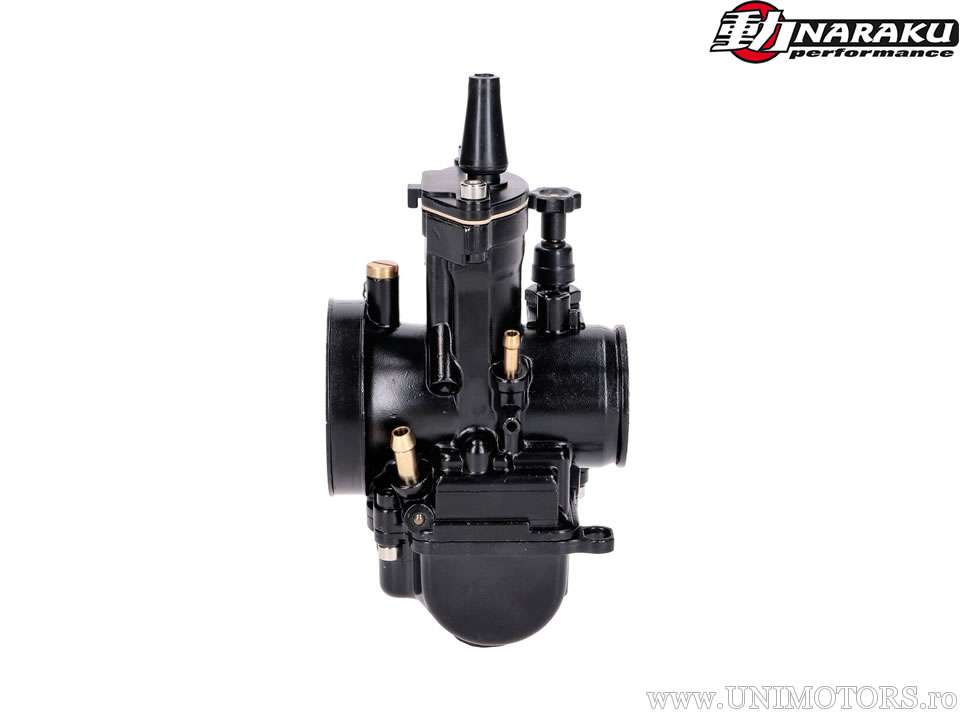

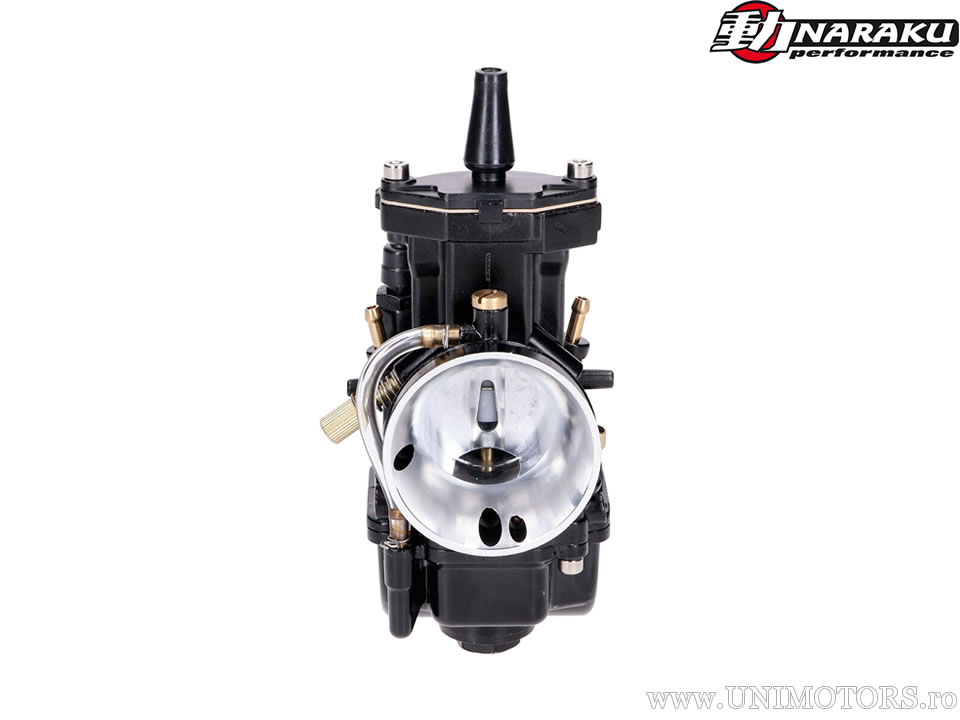

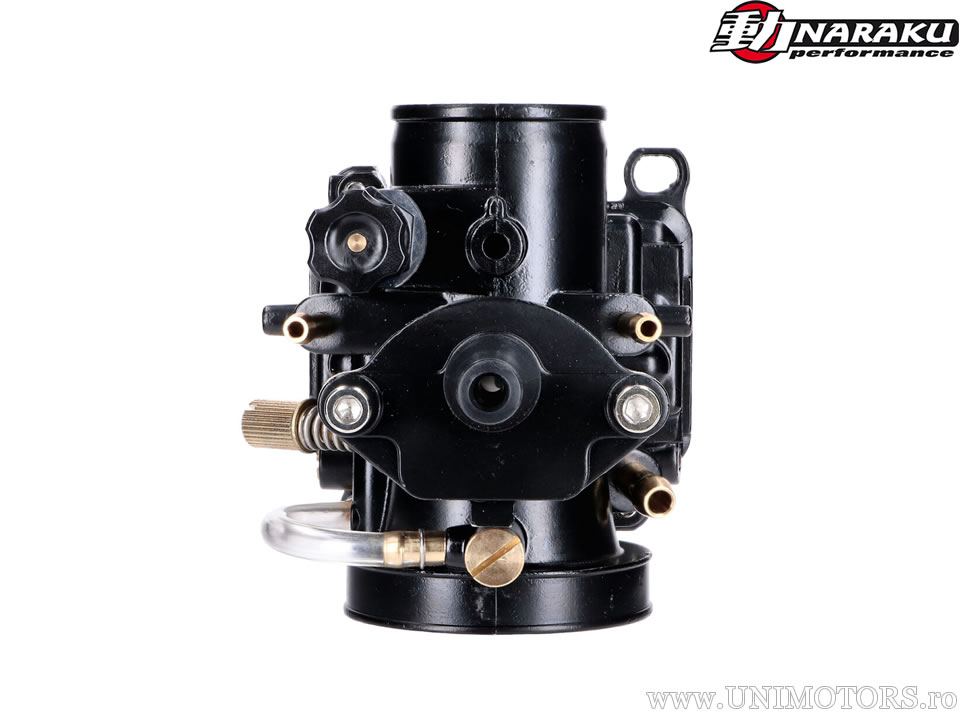

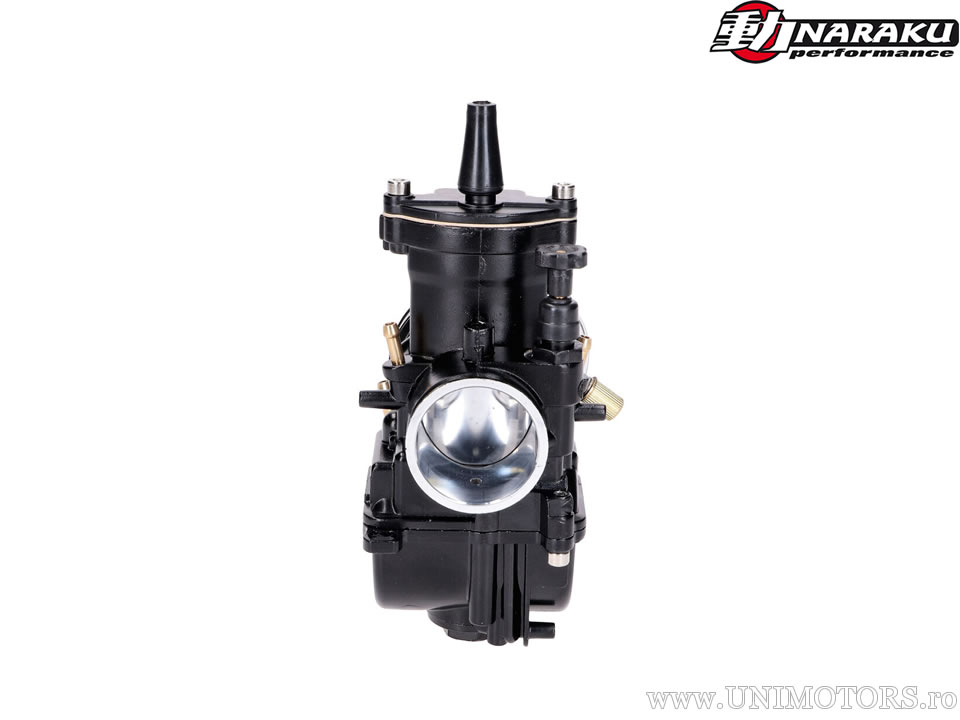

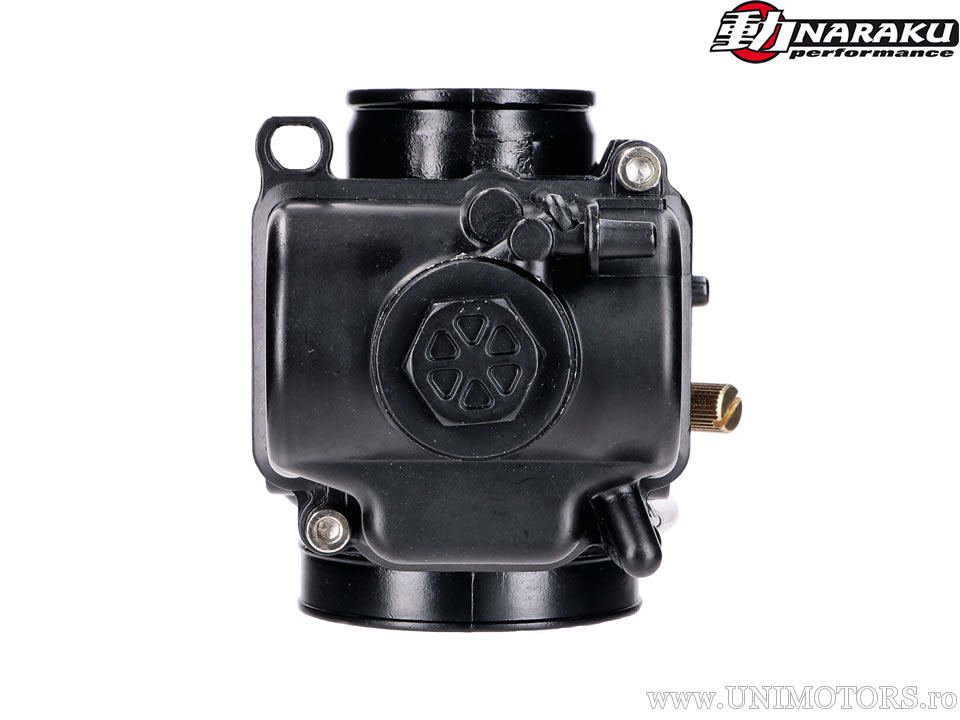

Racing Carburetor V.2 (diameter 34mm) - Naraku

Racing Carburetor V.2 (34mm) from manufacturer Naraku.

The Naraku V.2 racing carburetor with flat slide, in black edition, is the ideal choice for tuning projects with increased displacement. The CNC precision-machined intake manifold and proven Powerjet function improve airflow and thus ensure optimized engine response. At maximum load, the Powerjet function also increases performance. Thanks to the wide range of available main and secondary jets, carburetor needles, and other accessories for PWK carburetors, there are extensive options for precise tuning. An often overlooked but important feature is the adaptability of the mixing tube. This influences the correction air or brake air and affects both low and high engine speeds when the slide is fully open. The goal is to achieve a consistently balanced fuel/air ratio across the entire RPM range. Without correction air, fuel supply would increase more rapidly than air supply as engine speed rises, which could lead to excessive richness at high RPMs. The carburetor is also equipped with a manual choke for easy operation.

Technical specifications:
- carburetor diameter: 34 mm;
- main jet: 160 (M5);
- power jet: M5;
- additional jet: 55 (M6);
- intake manifold connection diameter: 40 mm;
- air filter connection diameter: 54 mm.

The complete application list can be found below.
