Rear pinion JTR896.50 (step 520) - JM

Rear sprocket steel -JTR896.50 pitch 520 and 50 teeth.

Specifications:
- JT Sprockets' production is today the largest and most modern manufacturing unit for sprockets and gears worldwide;
- equipped, among others, with the latest generation of CNC manufacturing machines;
- JT Sprockets produces the entire range of sprockets and gears for aftermarket and original equipment;
- each sprocket and gear goes through 25 production stages, subjected to more than ten individual quality checks to successfully complete production;
- JT Sprockets produces correctly: through turning, milling, and drilling;
- this is the only way to achieve the highest quality, with the smallest tolerances and the best tooth profile;
- after subsequent heat treatment, each item is manually inspected;
- JT Sprockets sets new quality standards in the motorcycle industry;

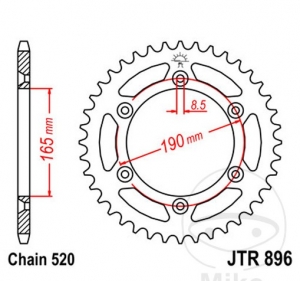

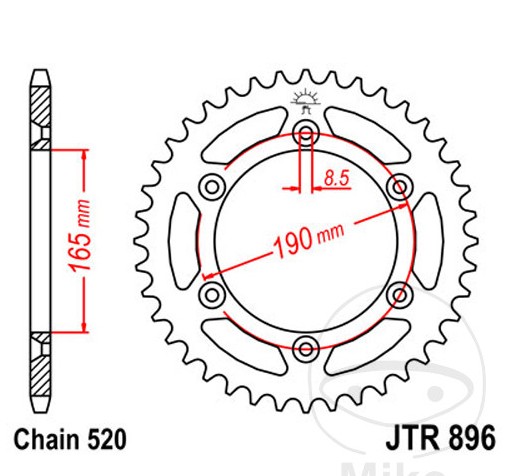

Technical data:
- Chain pitch: 520;
- inner diameter: 165 mm;
- mounting diameter: 190 mm;
- hole: 8.5 mm;
- number of mounting holes: 6;
- screw type: countersunk head;
- number of teeth: 50;
- sprocket material: steel;
- manufacturer: JT.

The complete application list can be found below.
