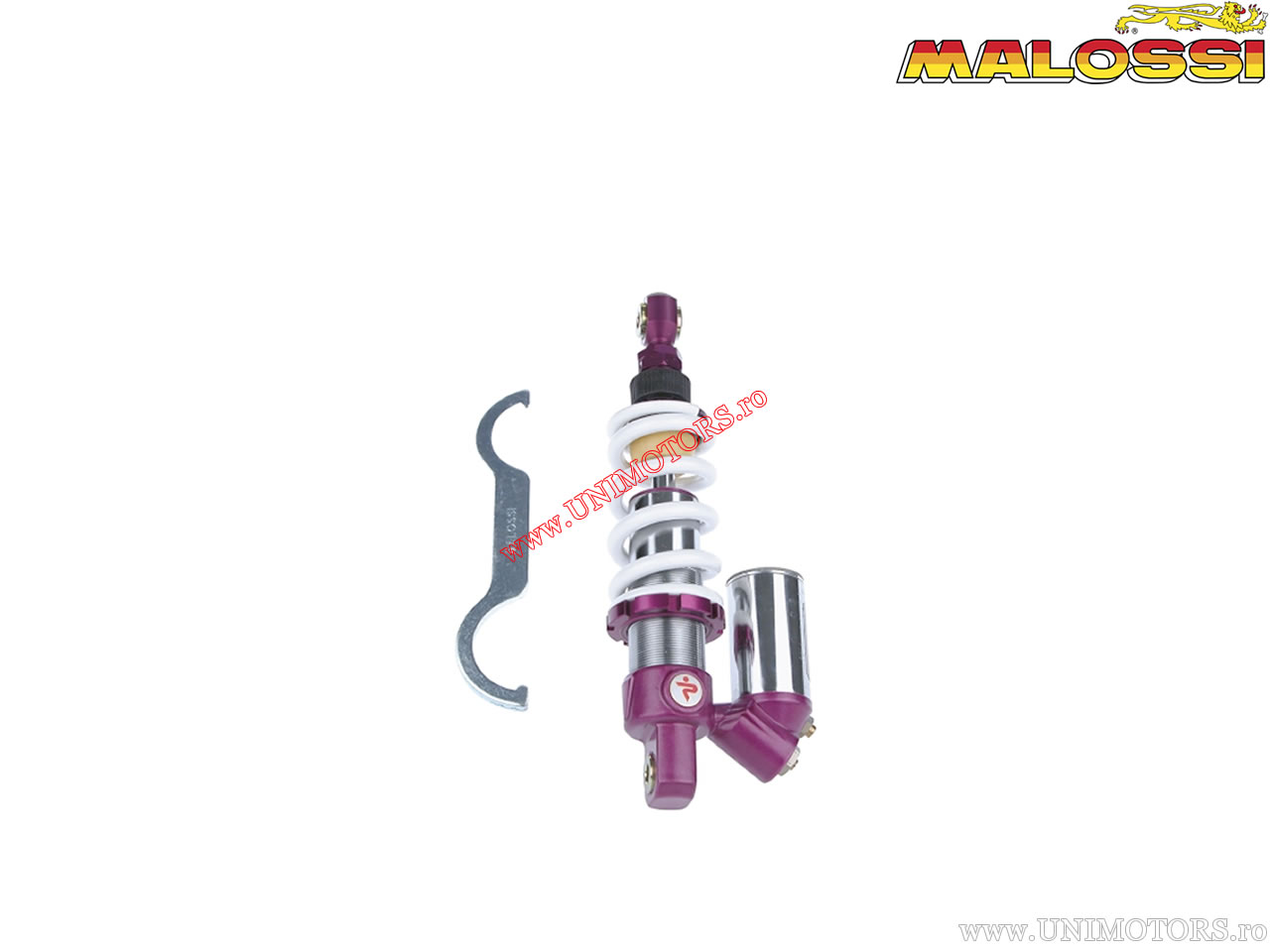

Rear telescopic shock RS24/10 (285mm) Malossi. Among the most important applications are: Aprilia RS50 H2O 2T E2 2006-2010 (D50B0) / Derbi GPR 50 Nude H2O 2T E2 2004-2005 (EBS050) / GPR 50 Nude H2O 2T E2 2006-2008 (D50B0) / GPR 50 Racing H2O 2T E2 2004-2005 (EBS050) / GPR 50 Racing H2O 2T E2 2006-2009 (D50B0).
- Type: oil-pneumatic shock absorber with separate compensating reservoir;
- Use: Competition scooter;
- Shock absorber shaft Ø 14 mm made of steel 38 NiCrMo4UNI 7845;
- Piston Ø 36 mm with two independent lamellar packs (one for compression, one for expansion);
- New laminar steel system for extremely precise calibration;
- Piston guiding shoe Lubriflon PTFEB 70 (modified compound loaded with bronze);
- Sliding on DU GUIDE bushing (compound obtained by sintering a layer of spheroidal bronze);
- Micrometric adjustment of spring preload via ring nuts;
- 24-position adjustment of the hydraulic expansion brake;
- 10-position adjustment of the hydraulic compression brake;
- Special low-viscosity oil, practically unaffected by temperature changes;
- External compensating reservoir allowing an increase in the amount of internal fluids;
- These special shock absorbers are the best technological expression available today for the public;
- Wheelbase: 285 mm;
- Class: Race.
Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
