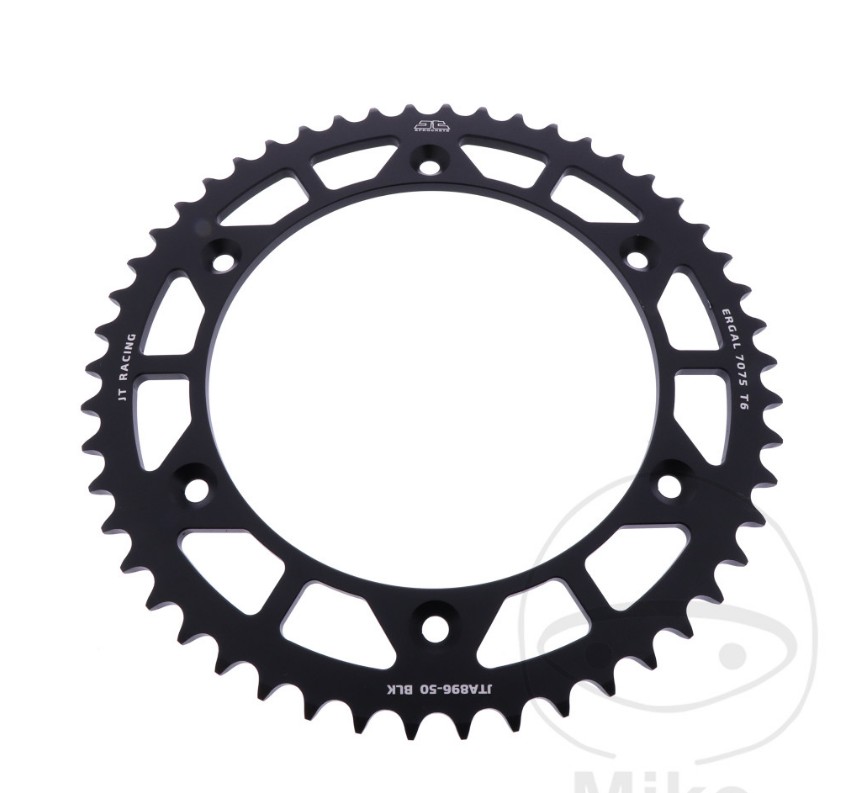

Rear sprocket JTA896.50 BLK (520 pitch) - JM

Black aluminum rear sprocket -JTA896.50 BLK pitch 520 and 50 teeth.

Technical specifications:
- The JT Sprockets manufacturing unit is now the largest and most modern sprocket and gear manufacturing facility in the world;
- equipped with state-of-the-art CNC production machines;
- JT Sprockets produces the entire range of sprockets and gears for the aftermarket and original equipment market;
- each gear and chain wheel goes through 25 production stages;
- it undergoes more than ten individual quality checks to successfully leave production;
- JT Sprockets produces correctly: through turning, milling, and drilling;
- this is the only way to achieve the highest quality with the smallest tolerances and the best tooth profile;
- after subsequent heat treatment, each part is manually inspected - in this way, JT Sprockets sets new quality standards in the motorcycle industry.

Technical specifications:
- Chain pitch: 520;
- inner diameter: 165 mm;
- mounting diameter: 190 mm;
- hole: 8.5 mm;
- number of mounting holes: 6;
- screw type: countersunk head;
- number of teeth: 50;
- sprocket material: aluminum;
- color: black;
- manufacturer: JT.

The complete application list can be found below.
