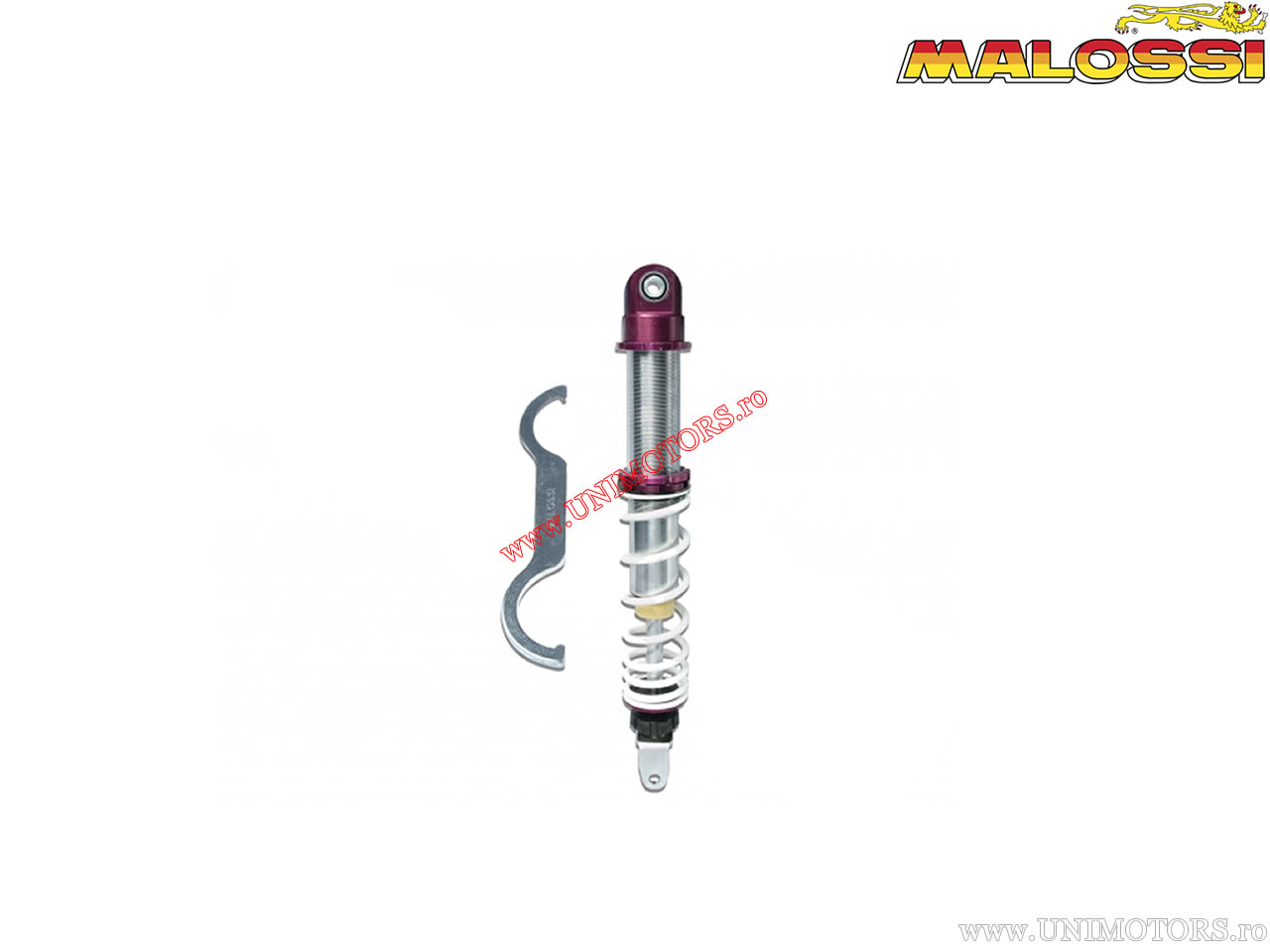

Rear telescopic shock absorber RS24 (wheelbase 410mm) - Gilera DNA 50 H2O 2T E1 ('00-'01) / DNA 50 H2O 2T E2 ('02-'04) - Malossi

Rear telescopic RS24 (410mm) Malossi. Among the most important applications are: Gilera DNA 50 H2O 2T E1 (2000-2001) / DNA 50 H2O 2T E2 (2002-2004).

- It is a rebuildable gear with a bi-layer piston and deflector plate compensation;
- Piston Ø 36 mm with two independent lamellar packs, one in extension and one in compression;
- Lamellar system made of harmonic steel with leaf spring configuration;
- Piston guide Lubriflon-PTFE B70 (modified compound loaded with bronze);
- Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze);
- Shock absorber rod alloy steel 38NCD4 Ø 14 mm;
- Wheelbase: 410 mm;
- Stroke: 85 mm;
- Class: Race.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We decline any responsibility for improper use.
