SHOCK ABSORBER - Yamaha XP 530 SX TMax XP530-A ABS ('17-'19) - JM

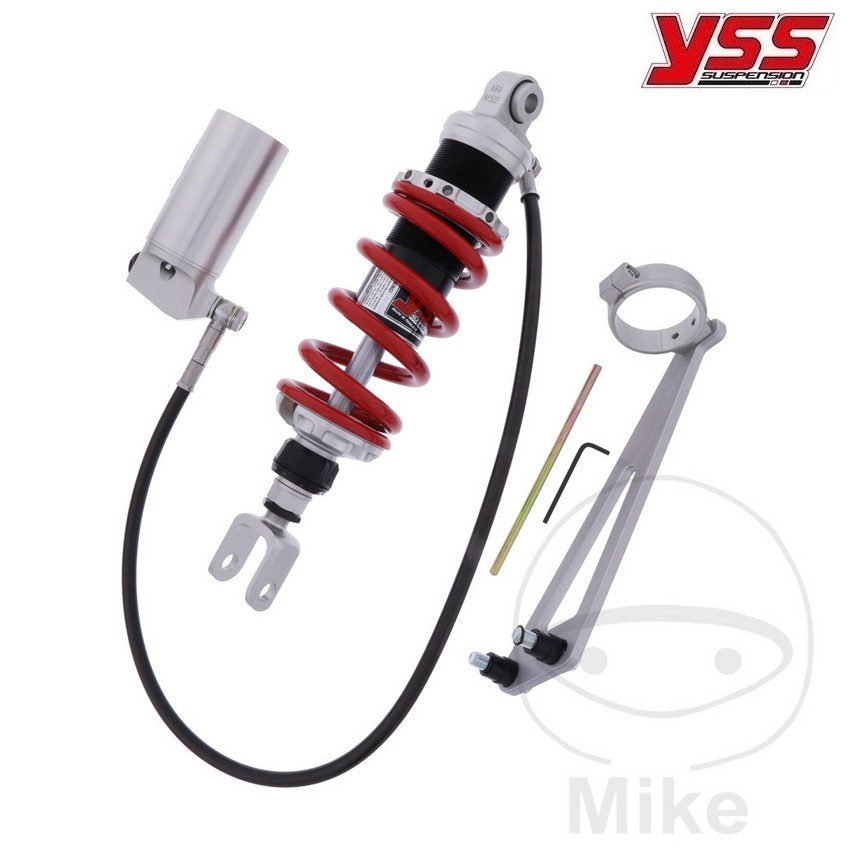

Adjustable rear shock absorber - YSS for Yamaha XP 530 SX TMax XP530-A ABS (2017-2019).

Specifications:
- adjustable rear shock absorber from YSS;
- type: gas shock;
- upper mount: eyelet;
- inner diameter of eyelet: 12mm;
- length: 330mm;
- lower mount: fork;
- width of telescopic mount: 30mm;
- adjustable: pressure level, variable preload, rebound;
- adjustable length: +/- 5mm;
- spring color: red;
- spring rate: 100;
- spring length: 150mm;
- spring diameter: 56mm;
- reservoir: yes;
- piston diameter: 45mm;
- shaft diameter: 16mm.

The complete application list can be found below.
