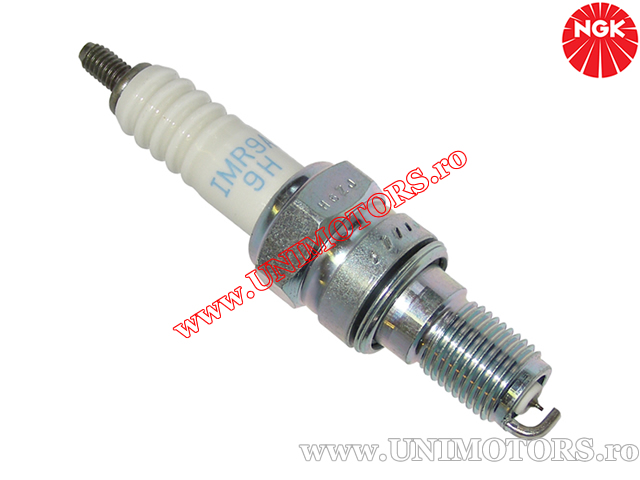

Spark Plug Racing Iridium Laser IMR9A9H - NGK

Bujie racing NGK IMR9A-9H.

Technical specifications:
- thread diameter: 10mm
- thread pitch: 1.0mm
- with resistor: yes
- resistor value: 5K Ohm
- thread length (including unthreaded part): 19mm
- hex diameter: 16mm
- terminal type: detachable nut
- electrode gap: 0.9mm
- heat range: 9

Applications:
Among the most important applications are: Honda CBR 600 F (2001-2004) / CBR 900 RR Fireblade (2000-2001) / CBR 1100 XX Super Blackbird (2001-2002).

Complete application list can be found below.
