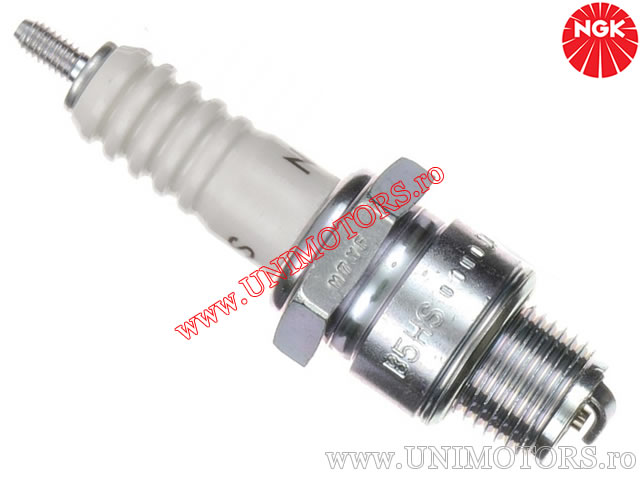

Standard Spark Plug B5HS - NGK

Bujie standard NGK B5HS.

Technical specifications:
- thread diameter: 14mm
- thread pitch: 1.25mm
- with resistor: no
- resistor value: -
- thread length (incl. unthreaded part): 12.7mm
- hexagon diameter: 21mm
- terminal type: detachable nut
- electrode gap: 0.9mm
- heat range: 5

Applications:
Among the most important applications are: Hercules MX-1 25 (1995-1997) / Sachs MX-1 25 (1996-2000).

Complete application list can be found below.
