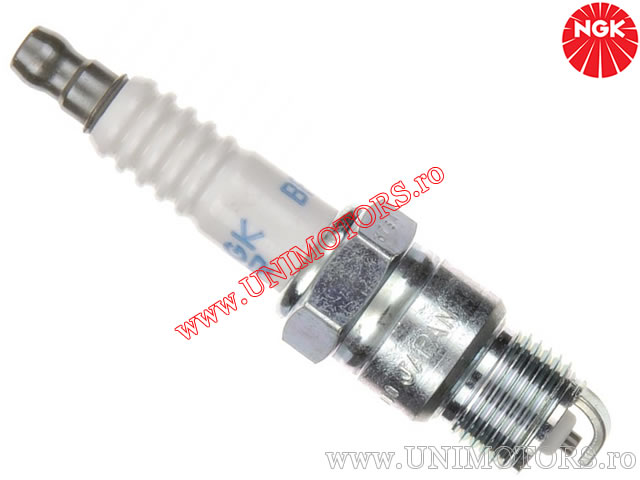

Standard Spark Plug BPR5HS - NGK

Bujie standard NGK BPR5HS.

Technical specifications:
- thread diameter: 14mm
- thread pitch: 1.25mm
- with resistor: yes
- resistor value: 5K Ohm
- thread length (incl. unthreaded part): 12.7mm
- hex diameter: 21mm
- terminal type: detachable nut
- electrode gap: 0.7mm
- heat range: 5

Applications:
Among the most important applications are: Bajaj Chetak 150 (1993-1998) / Honda PX 25 MS / PXR 25 MS (1984) / Peugeot Vogue 25 SMA Spoked Wheel (1996-1998) / Vogue 25 SNA Spoked Wheel (1999).

Complete application list can be found below.
