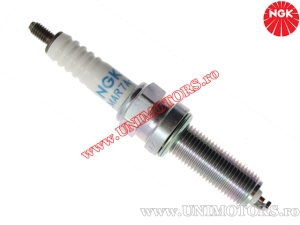

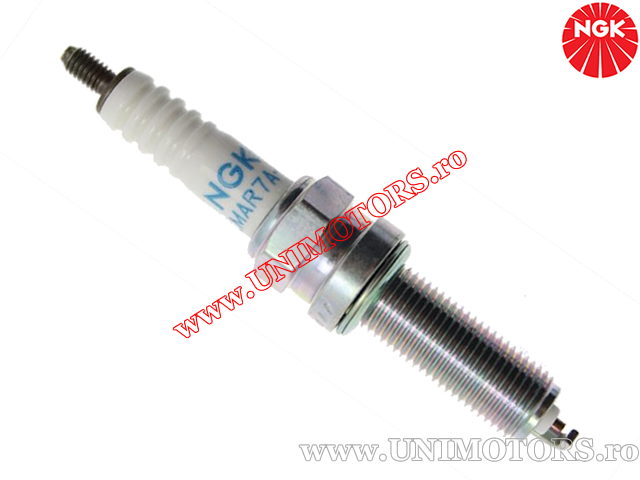

Standard Spark Plug LMAR7A-9 - NGK

Bujie standard NGK LMAR7A-9.

Technical specifications:
- thread diameter: 10mm
- thread pitch: 1.0mm
- with resistor: yes
- resistor value: 5K Ohm
- thread length (including unthreaded part): 26.5mm
- hex diameter: 14mm
- terminal type: detachable nut
- electrode gap: 0.9mm
- heat range: 7

Applications:
Among the most important applications are: Husqvarna Enduro 701 / Supermoto 701 / KTM Adventure 1190 ABS / Adventure 1190 R ABS / Duke 690 ABS / Duke 690 R ABS / Enduro 690 R ABS / KTM RC8 1190 R / SMC 690 R Supermoto ABS / Super Duke 1290 R ABS / Yamaha XVS 1300 Custom / XVS 1300 A Midnight Star.

Complete application list can be found below.
