Temperature sensor adapter - Aprilia RX 50 E4 (D50B) / Derbi Senda 50 R X-Treme E4 (D50B) / Gilera RCR 50 E4 - Naraku

Temperature sensor adapter from the manufacturer Naraku for Aprilia RX 50 E4 (D50B) ZD4KKA0 (2018->) / RX 50 Factory E4 (D50B) ZD4KKA01 (2018-2020) / SX 50 E4 (D50B) ZD4KKB01 (2018-2020) / SX 50 Factory E4 (D50B) ZD4KKB03 (2018-2020) / SX 50 Low Seat E4 (D50B) [ZD4KKB06] (2019-2020) / Derbi Senda 50 R X-Treme E4 (D50B) [ZDPKKA00] (2018->) / Senda 50 SM Limited E4 (D50B) [ZDPKKB04] (2018->) / Senda 50 SM Racing E4 (D50B) [ZDPKKB02] (2018->) / Senda 50 SM X Treme E4 (D50B) [ZDPKKB00/PKKE00] (2018->) / Senda 50 SM X-treme Low Seat E4 (D50B / 2019->) / Gilera RCR 50 E4 (D50B) ZAPKKA00 (2018-2020) / SMT 50 E4 (D50B) ZDPKKB00 (2018->) / SMT 50 Drifting E4 (D50B) [ZAPKKB07] (2019->) / Laverda L SM 50 2T E4 (D50B) [ZBPKKB01] (2019->).

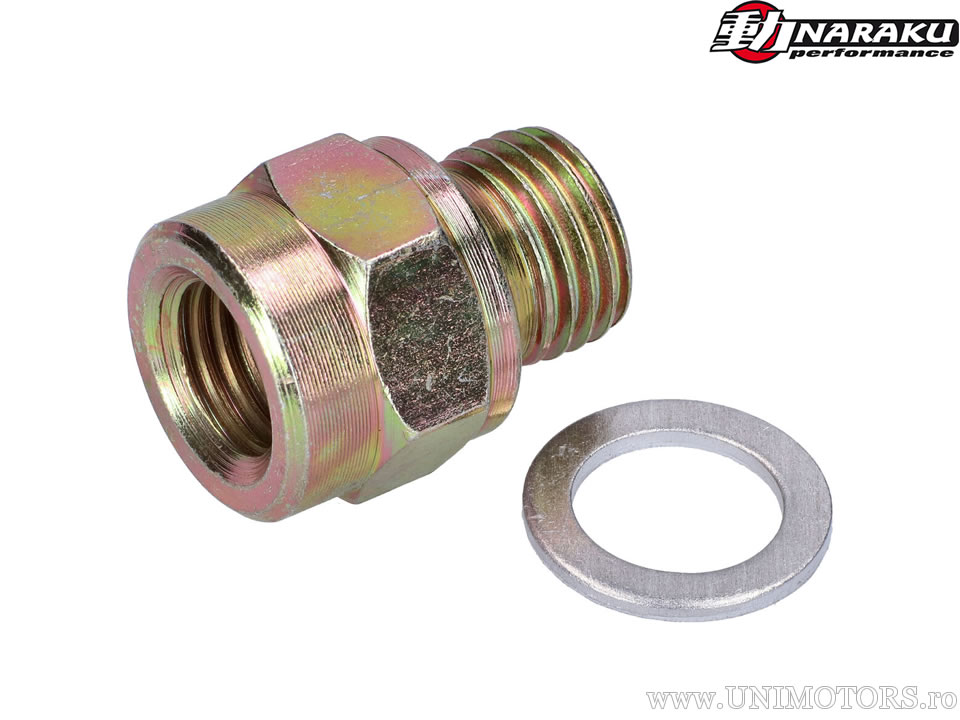

Adapter for thermocouple Piaggio 640485 for mounting a spare or tuning cylinder on the Derbi D50B0 E4 engine. The conversion from the Euro4 version of the D50B0 engine, used on all Derbi Senda, Aprilia RX/SX, and Gilera RCR/SMT models starting from the 2018 manufacturing year, has a different threaded hole. Therefore, not all aftermarket and tuning cylinders can be used starting from the 2018 manufacturing year, as the temperature sensor is connected to the ECU and must be installed.

Technical specifications:
- adapter: M14x1.5 mm to M12x1.5 mm.

Complete application list can be found below.
