Throttle Cable - Explorer Sniper 50 SM / Generic Trigger 50 SM / KSR TR 50 SM One / Ride Thorn 50 X - Naraku

Throttle cable from manufacturer Naraku for Explorer Sniper 50 SM (2006->) / Sniper 50 X (2006->) / Generic Trigger 50 SM (2006->) / Trigger 50 X (2006->) / KSR Moto TR 50 SM / TR 50 SM Competition / TR 50 SM One / TR 50 X / Motobi/Moto B Misano 50 (2012->) / Ride MRS 50 (2006->) / MRX 50 (2006->) / Thorn 50 S (2006->) / Thorn 50 X (2006->).

Product description:

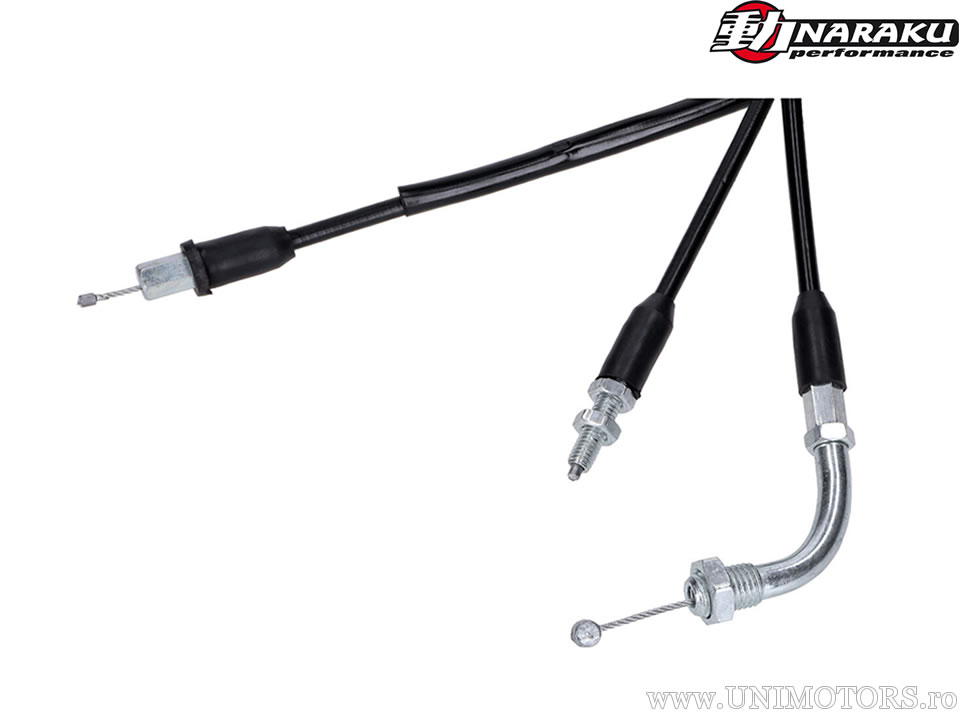

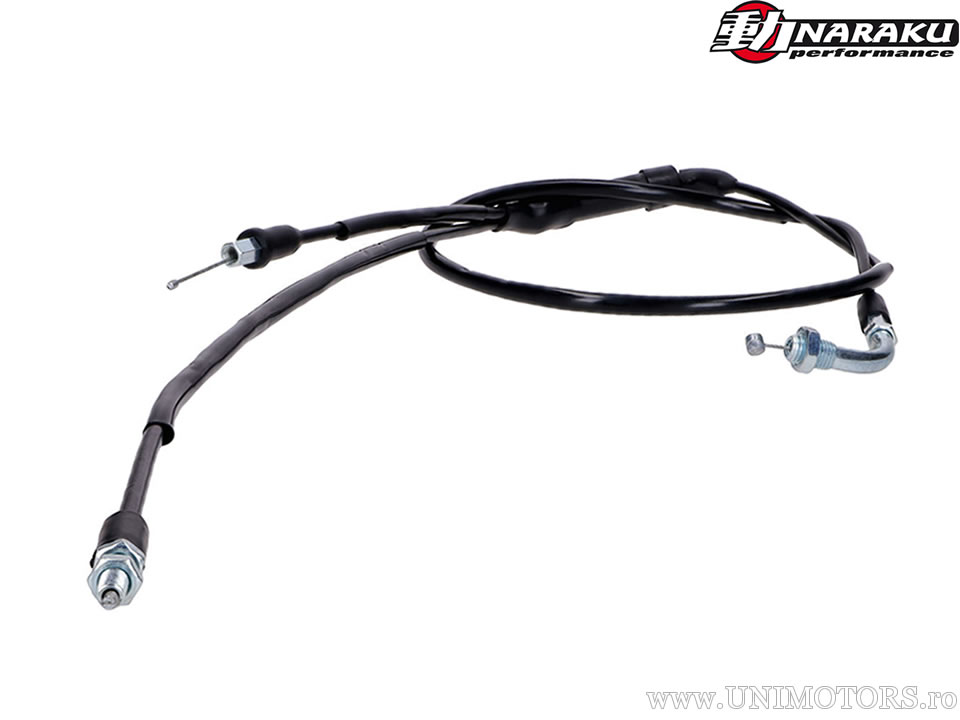

- premium quality complete throttle cable;
- the cable features an inner sliding PTFE (polytetrafluoroethylene) sleeve;
- the high self-lubricating properties of PTFE material allow for a long-lasting, very smooth sliding process.

Technical specifications:
- outer sheath length from throttle grip to distributor: 725 mm;
- outer sheath length from distributor to oil pump: 485 mm;
- outer sheath length from distributor to carburetor: 205 mm;
- cable length from throttle grip to distributor: 800 mm;
- cable length from distributor to oil pump: 550 mm;
- cable length from distributor to carburetor: 290 mm;
- distributor length: 55 mm.

Note: Never lubricate PTFE cables afterwards, as lubricants cause the sliding material to swell and thus have exactly the opposite effect.

The complete application list can be found below.
