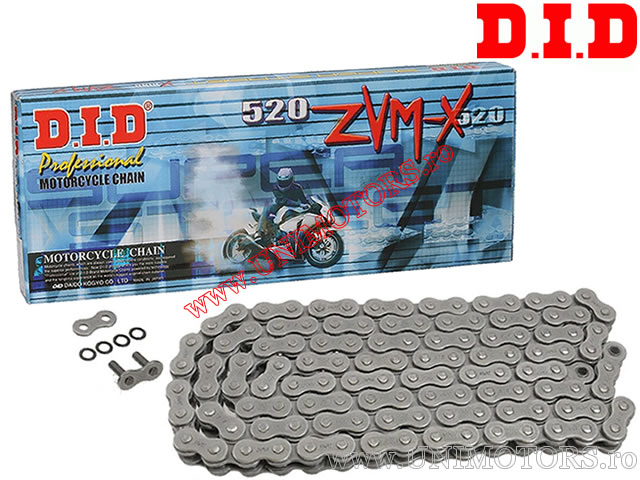

Transmission chain DID X-Ring - 520ZVM-X (black / black) - 118 links - DID

Lant transmisie DID X-Ring 520ZVM-X (black / black) - 118 links.

The DID 520ZVM-X chains are manufactured in Japan and each pin is protected from moisture and dirt by an X-Ring. The main difference between X-Ring and O-Ring is that the former has two contact and sealing areas, while chains with O-Ring technology have only one contact point. As a successor to the high-performance DID ZVM2 model, the ZVM-X model has been given special attention to the loads that occur in the transmission system during everyday use, it has a lower weight compared to ZVM2, increased tensile strength, and very high wear resistance.

Specifications:
- pitch 520 (5/8 x 1/4)
- internal self-lubrication
- maximum efficiency
- high lifespan
- open chain - contains a link with a closing pin
- tensile strength (kg): 3970 kg
- color: black / black
- length: 118 links

Note: the applications of this chain (number of links - 118) are for the factory ratio (standard). We recommend checking the length on the vehicle before ordering. If a different number of links is required, use this product and select the corresponding number of links: DID 520ZVM-X X-Ring chain (black / black) - link count selection.

Among the most important applications are: BMW HP4 1000 ABS (2012-2016) / HP4 1000 Competition ABS (2013-2016) / S 1000 RR (2009-2014) / Honda CBR 600 F (2011-2013) / Yamaha FZ6 600 N / FZ6 600 S Fazer (2004-2008) / FZ6 S2 600 NHG / FZ6 S2 600 SHG Fazer (2007-2010) / Yamaha YZF-R1 1000 (2006-2008) / YZF-R7 750 OW02 (1999-2001).

Complete application list can be found below.
