Universal Chain Oiling System V-System V2 Scottoiler - JM

Sistem uns lant universal V-System V2 - Scottoiler.

Specificatii tehnice:
- An automatic chain lubrication system, controlled by vacuum;
- Chain lifespan increased by up to 7 times;
- The chain is virtually maintenance-free, and maintenance effort is significantly reduced;
- VSystem is easy to install and can be mounted on almost any model;
- The optimized system has proven effective in both summer and winter operation;
- The distribution unit can be reliably screwed or glued under the swingarm with the omega support;
- Depending on the setting, the standard storage container is sufficient for over 1000 km;

How does Scottoiler work?
- Scottoiler vSystem is vacuum-controlled. A negative pressure is created when the engine is running;
- This lifts a membrane, which in turn opens the valve;
- While the valve is open, oil flows through the delivery hose to the chain due to gravity over the rear sprocket;
- The amount of oil is adjusted by regulating the valve. It is not a pump.

Unique innovations:
- The needle valve and valve seat are now manufactured with even greater precision, ensuring better dosing;
- The needle valve profile has been changed, leading to a uniform modification of the dosage;
- The delivery hose has been changed, facilitating air evacuation;
- The protective sleeves of the delivery hose and the ventilation hose are now black and therefore less sensitive;
- A handy filling bottle with a capacity of 250 ml is included;
- Illustrated instructions for easy installation.

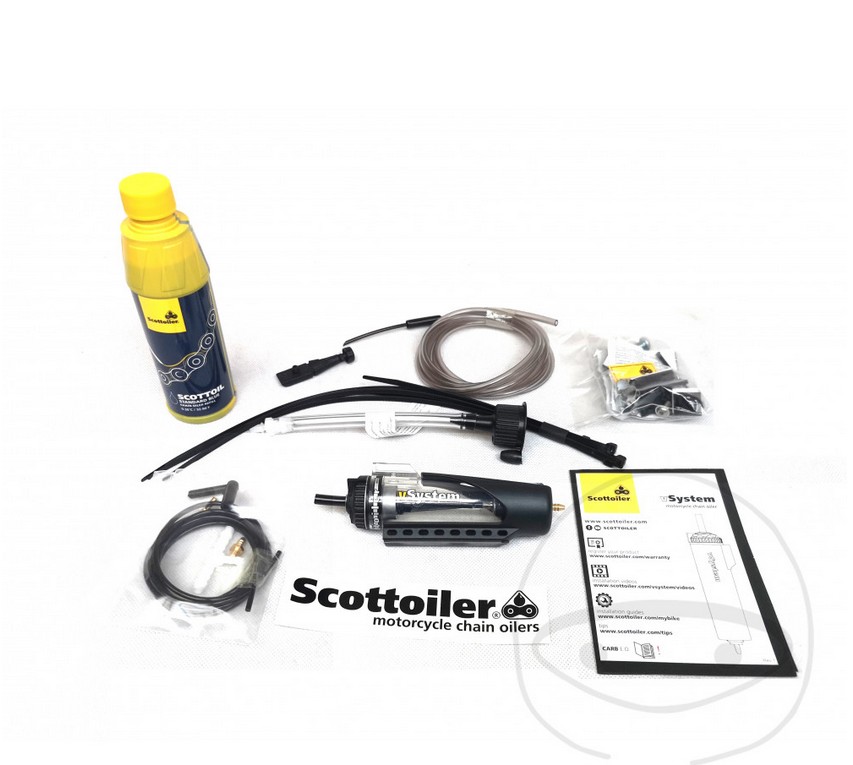

- The kit consists of a reservoir with a valve (RMV) and an injector, which delivers oil to the chain and sprocket;
- A 250 ml bottle of Scottoil is also included, sufficient for a distance of up to 10,000 km;
- Various components are also included, allowing the kit to be assembled in different ways;

- For all types of motorcycles, including fuel-injected models;
- Increases power by up to 2 KW;
- Maintenance-free;
- Easy assembly;
- For on-road and off-road use;
- Detailed step-by-step installation instructions.

The complete application list can be found below.
