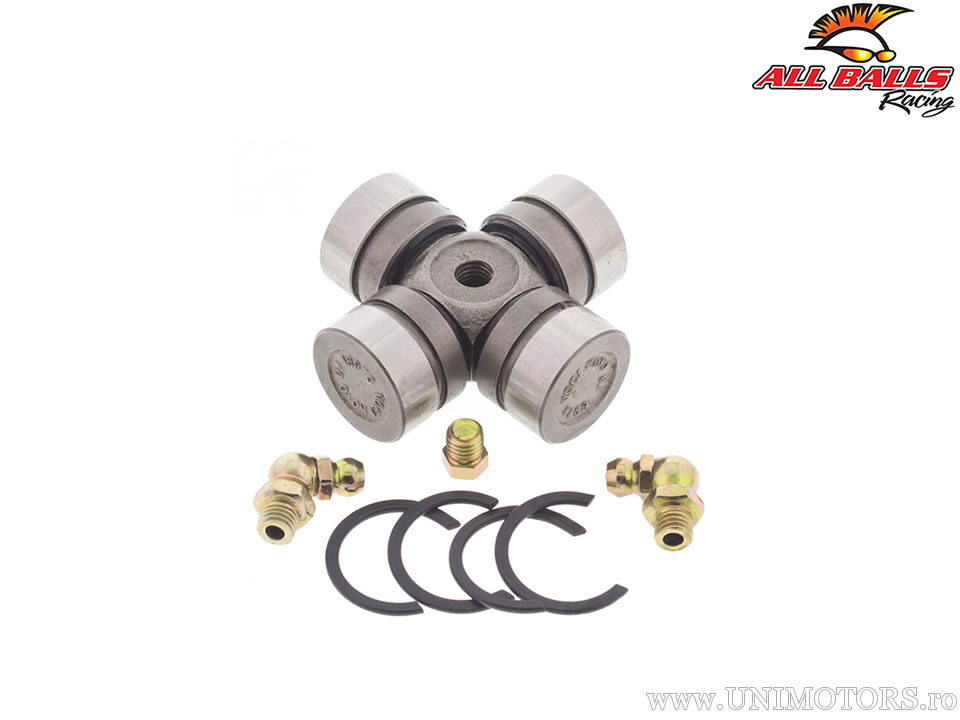

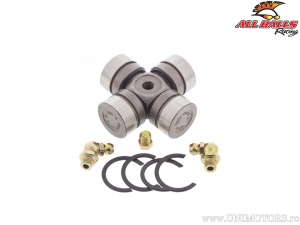

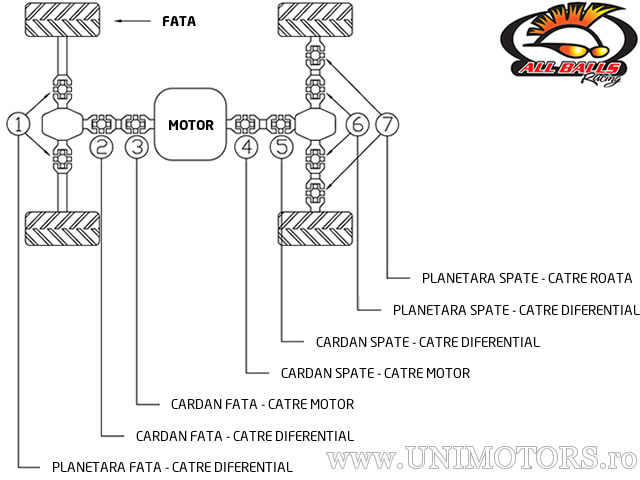

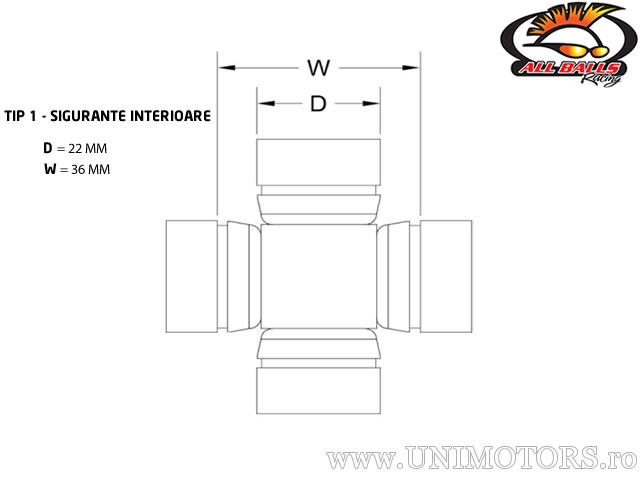

Cardan cross from All Balls - rear driveshaft mounting part - towards the engine (pos. 4 in image no. 3) with dimensions 22 x 36 mm type 1 - internal snap rings.
The manufacturer All Balls is a supplier of consumables and parts for motorcycles and ATVs with an excellent proven quality/price ratio. The cardan crosses from All Balls are made from SCM-415 steel, cold forged, and are factory greased with Lithium Complex 3 grease, resistant to high temperatures.
Note for 6x6 traction vehicles:
- the center driveshaft uses the same cardan crosses as those of the rear driveshaft (pos. 4 and 5 - image 3)
- the center differentials use the same cardan crosses as those of the rear differentials (pos. 6 and 7 - image 3)
Among the most important applications are: Kawasaki KVF 300 A Prairie 4x4 (1999-2002) / KVF 300 B Prairie 2x4 (1999-2002) / KVF 400 A Prairie 4x4 (1997-1998) / KVF 400 B Prairie (1998) / KVF 400 C Prairie 4x4 (1999-2002) / KVF 400 D Prairie (1999-2002) / Mule 610 4x4 (2005-2016) / Mule 610 4x4 VIN JK1AFEA1 9B547191 and before this series (2009) / Mule 610 4x4 VIN JK1AFEA1 9B547192 and after this series (2009).
Complete application list can be found below.
