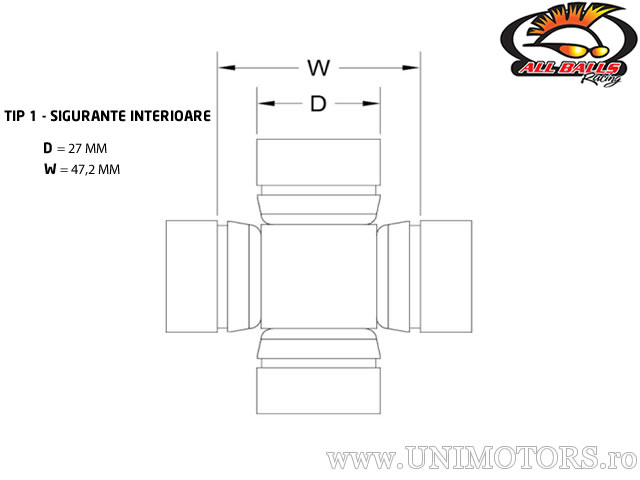

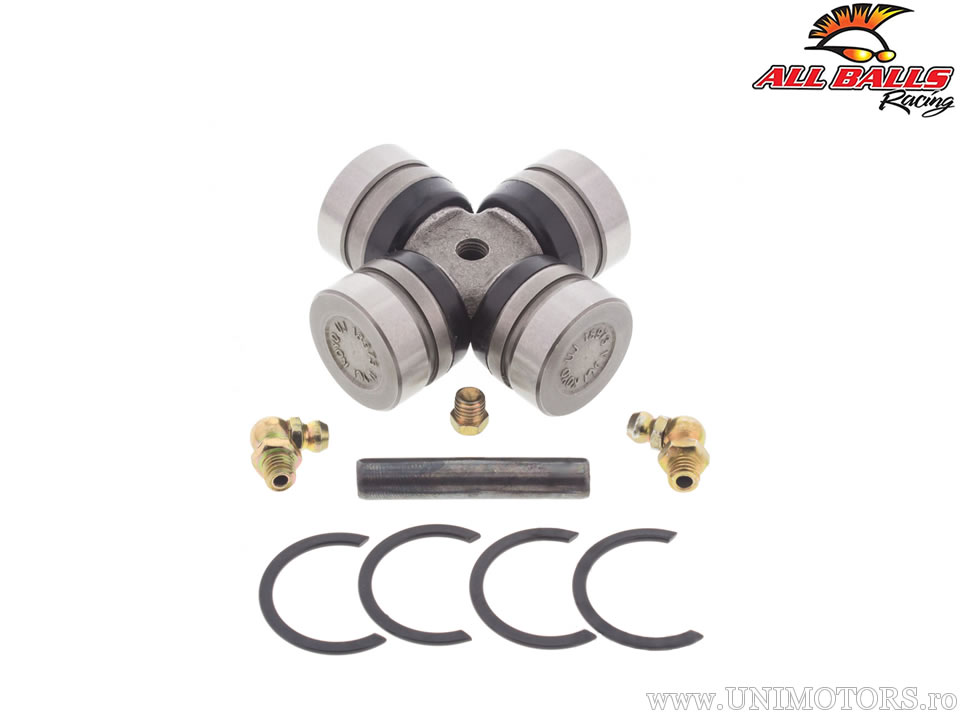

Cardan joint from All Balls - rear planetary mounting part - towards the wheel (pos. 7 in image no. 3) with dimensions 27 x 47.2 mm type 1 - internal snap rings.
The manufacturer All Balls is a supplier of consumables and parts for motorcycles and ATVs with an excellent proven quality/price ratio. The cardan joints from All Balls are made from SCM-415 cold forged steel and are factory greased with Lithium Complex 3 grease resistant to high temperatures.

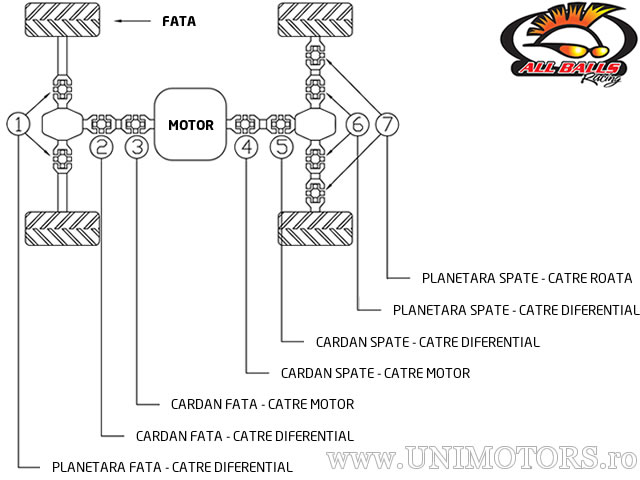

Note for 6x6 traction vehicles:
- the middle driveshaft uses the same cardan joints as those of the rear driveshaft (pos. 4 and 5 - image 3)
- the middle planetary gears use the same cardan joints as those of the rear planetary gears (pos. 6 and 7 - image 3)
Among the most important applications are: Polaris Diesel 455 4x4 built after 9/98 (1999) / Diesel 455 4x4 built before 9/98 (1999) / Ranger 4x4 500 (1999-2004) / Ranger 6x6 500 (2004) / Ranger Series 10 4x4 & 6x6 (2007) / Sportsman 335 (1999-2000) / Sportsman 500 4x4 (1996-1998) / Worker 335 (1999) / Xplorer 500 (1997).
Complete application list can be found below.
