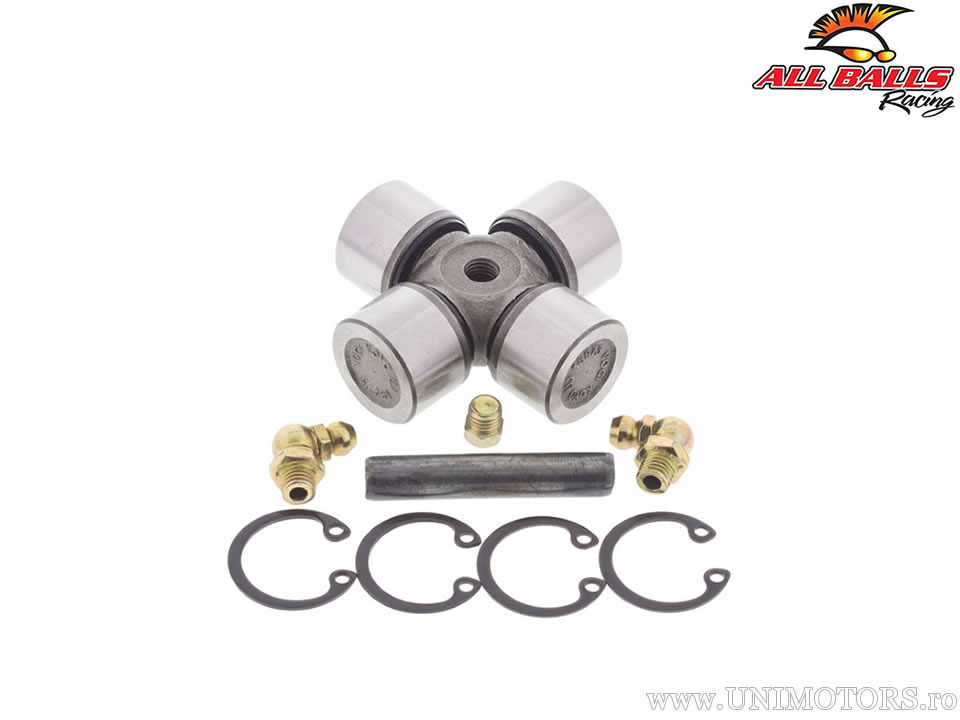

Universal Joint - Front Drive Shaft - to Differential - 19-1008 - All Balls

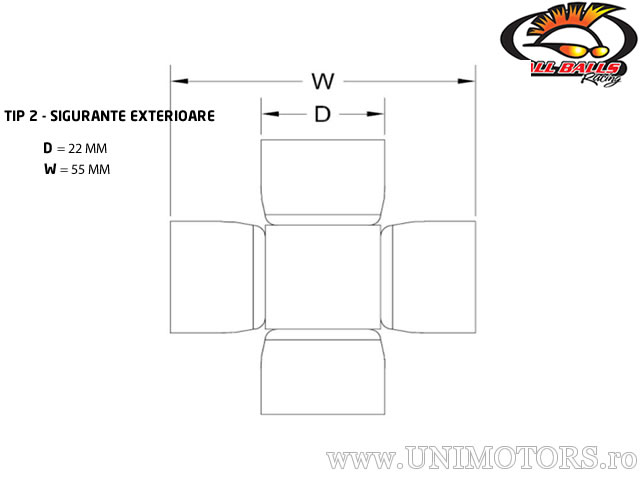

Cardan joint from All Balls - front drive shaft mounting - to differential (pos. 2 in image no. 3) with size 22 x 55 mm type 2 - external snap rings.

The manufacturer All Balls is a supplier of consumables and parts for motorcycles and ATVs with an excellent proven quality/price ratio. The cardan joints from All Balls are made from SCM-415 cold forged steel and are factory greased with Lithium Complex 3 grease resistant to high temperatures.

Note for 6x6 traction vehicles:
- the center drive shaft uses the same cardan joints as those of the rear drive shaft (pos. 4 and 5 - image 3)
- the center planetary gears use the same cardan joints as those of the rear planetary gears (pos. 6 and 7 - image 3)

Among the most important applications are: Can-Am Commander 1000 DPS (2016-2018) / Commander 1000 LTD (2016-2018) / Commander 1000 STD (2011-2018) / Commander 1000 XT (2016-2018) / Commander 1000 XT/LTD/DPS (2011-2015) / Commander 1000 XTP (2014-2017) / Commander 800 DPS (2013-2018) / Commander 800 LTD (2016) / Commander 800 STD (2011-2018) / Commander 800 XT (2011-2018) / Commander 800 XTP (2016) / Commander MAX 1000 DPS (2018) / Commander MAX 1000 LTD (2018) / Commander MAX 1000 STD (2015-2018) / Commander MAX 1000 XT (2018) / Commander MAX 1000 XT/DPS/LTD (2014-2017) / Commander MAX 1000 XTP (2015) / Commander MAX 800 DPS (2016-2018) / Defender 1000 (2016-2018) / Defender 1000 DPS (2016-2018) / Defender 1000 DPS built after 11/2016 (2017) / Defender 1000 DPS built before 11/2016 (2017) / Defender 1000 XMR (2018) / Defender 1000 XT (2016-2018) / Defender 1000 XTP (2018) / Defender 800 (2016-2018) / Defender 800 DPS (2016-2018) / Defender 800 DPS built after 11/2016 (2017) / Defender 800 DPS built before 11/2016 (2017) / Defender 800 XT (2016-2018) / Defender MAX 1000 (2018) / Defender MAX 1000 DPS (2017-2018) / Defender MAX 1000 LONE STAR (2018) / Defender MAX 1000 XT (2017-2018) / Defender MAX 800 DPS (2017) / Defender MAX 800 XT (2017) / Maverick 1000 STD (2013-2018) / Maverick 1000 TURBO (2016-2017) / Maverick 1000 TURBO XDS (2015-2016) / Maverick 1000 TURBO XRS (2016) / Maverick 1000 XC (2016-2017) / Maverick 1000 XDS (2015-2016) / Maverick 1000 XMR (2014-2018) / Maverick 1000 XRS (2013-2015) / Maverick 1000 XXC (2014-2017) / Maverick MAX 1000 STD (2014-2018) / Maverick MAX 1000 TURBO (2016-2017) / Maverick MAX 1000 TURBO XDS (2015-2017) / Maverick MAX 1000 TURBO XRS (2016-2017) / Maverick MAX 1000 XC/XXC (2016) / Maverick MAX 1000 XDS (2014-2016) / Maverick MAX 1000 XMR (2017-2018) / Maverick MAX 1000 XRS (2014-2015) / Maverick Trail 1000 (2018) / Maverick Trail 1000 DPS (2018) / Maverick Trail 800R (2018) / Maverick Trail 800R DPS (2018) / Maverick X3 (2017) / Maverick X3 900 HO (2018) / Maverick X3 MAX TURBO (2018) / Maverick X3 MAX TURBO R (2018) / Maverick X3 MAX TURBO R XDS (2018) / Maverick X3 MAX TURBO R XRS (2018) / Maverick X3 TURBO (2018) / Maverick X3 TURBO R (2018) / Maverick X3 TURBO R XDS (2018) / Maverick X3 TURBO R XMR (2018) / Maverick X3 TURBO R XRC (2018) / Maverick X3 TURBO R XRS (2018) / Maverick X3 TURBO XMR (2018) / Maverick X3 TURBO XRC (2018) / Maverick X3 XDS (2017) / Maverick X3 XRS (2017) / Outlander DPS 450 EFI (2016-2018) / Outlander DPS 570 EFI (2016-2017) / Outlander L 450 EFI (2015-2016) / Outlander L 500 EFI (2015) / Outlander L 570 EFI (2016) / Outlander L MAX 450 EFI (2015-2016) / Outlander L MAX 500 EFI (2015) / Outlander LE 570 EFI (2016) / Outlander MAX 450 EFI (2017) / Outlander MAX 570 EFI (2016-2017) / Outlander MAX DPS 450 EFI (2016-2018) / Outlander MAX DPS 570 EFI (2016) / Outlander MAX STD 450 EFI (2018) / Outlander STD 450 EFI (2017-2018) / Outlander STD 570 EFI (2017) / Outlander XMR 570 EFI (2016-2018) / Quest 500 (2002-2003) / QUEST 650 STD / XT (2002-2003) / Renegade 570 EFI (2016-2017) / Traxter 500 (1999-2004) / Polaris Sportsman 335 (1999-2000) / Sportsman 400 4x4 built after 12/7/00 (2001) / Sportsman 500 4x4 (2000) / Sportsman 500 4x4 built after 9/98 (1999) / Sportsman 500 4x4 built before 9/98 (1999) / Sportsman 500 4x4 RSE built after 9/98 (1999) / Sportsman 500 4x4 RSE built before 9/98 (1999) / Worker 335 (1999) / Worker 500 4x4 (2000-2002) / Worker 500 4x4 built after 9/98 (1999) / Worker 500 4x4 built before 9/98 (1999).

Complete application list can be found below.
