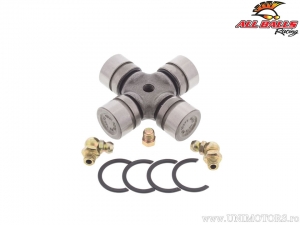

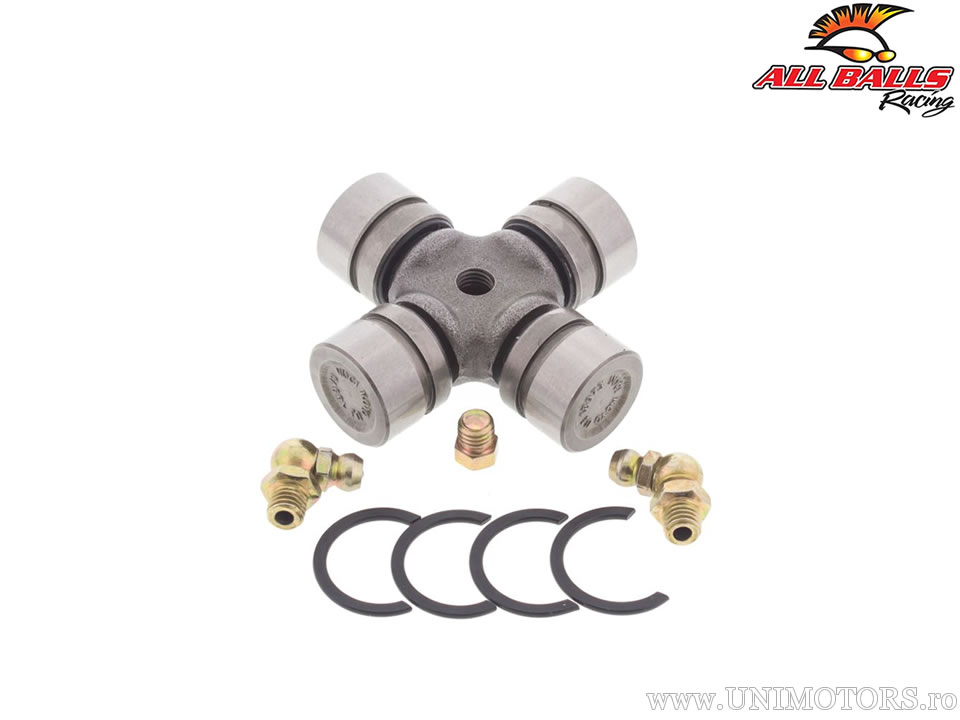

Universal Joint - Front Drive Shaft - to Engine - 19-1003 - All Balls

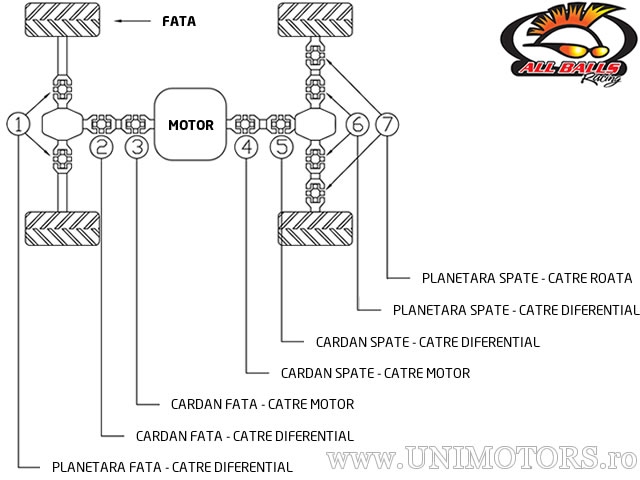

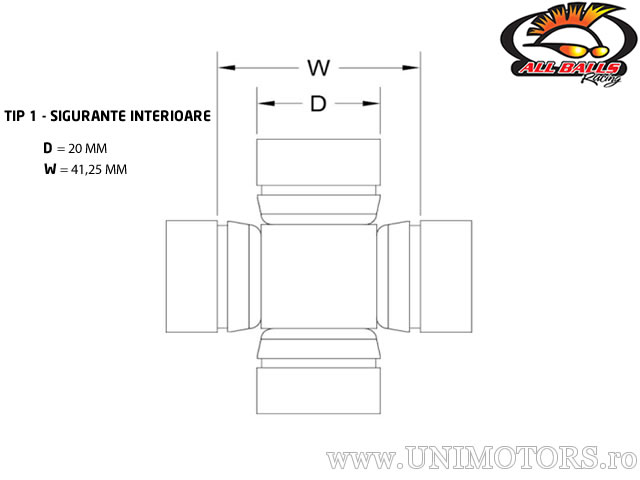

Cardan joint from All Balls - front drive shaft mounting part - towards the engine (pos. 3 in image no. 3) with dimensions 20 x 41.25 mm type 1 - internal snap rings.

The manufacturer All Balls is a supplier of consumables and parts for motorcycles and ATVs with an excellent proven quality/price ratio. The cardan joints from All Balls are made from SCM-415 cold-forged steel and are factory greased with Lithium Complex 3 grease that is resistant to high temperatures.

Note for 6x6 drive vehicles:
- the middle drive shaft uses the same cardan joints as those of the rear drive shaft (pos. 4 and 5 - image 3)
- the middle planetary gears use the same cardan joints as those of the rear planetary gears (pos. 6 and 7 - image 3)

Among the most important applications are: Arctic Cat 375 4x4 w/AT (2002) / 400 4x4 w/AT (2003-2004) / 400 4x4 w/MT (2003-2004) / 400 FIS 4x4 TRV (2006-2014) / 400 FIS 4x4 w/AT (2003-2008) / 400 FIS 4x4 w/MT (2003-2008) / 400 TBX 4x4 (2004-2006) / 400 VP 4x4 w/AT (2005-2006) / 400 VP 4x4 w/MT (2005-2006) / 450 H1 (2010-2011) / 450 TRV (2012) / 450i EFI (2012) / 450i TRV EFI (2011-2012) / 450i TRV GT EFI (2012) / 500 EFI 4x4 w/AT (2013-2014) / 500 FIS 4x4 w/AT (2003-2009) / 500 FIS 4x4 w/MT (2003-2009) / 500 FIS TRV 4x4 (2003-2008) / 500 TRV (2013-2014) / 500 XT EFI (2013-2014) / 550 EFI 4x4 (2012-2013) / 550 GT EFI 4x4 (2012) / 550 H1 FIS 4x4 (2009-2011) / 550 TRV 4x4 w/AT (2009-2013) / 550 TRV XT/LTD (2014-2015) / 550 XT EFI 4x4 (2013-2014) / 550 XT LTD EFI (2012-2014) / 650 4x4 H1 (2005-2011) / 650 4x4 H1 Mud Pro (2010-2011) / 650 4x4 w/AT V2 (2004-2006) / 650i 4x4 (2012) / 700 AT EFI (2006) / 700 EFI / LTD (2011-2014) / 700 EFI (2007-2008) / 700 EFI H1 (2008-2011) / 700 EFI H1 MUDPRO (2009-2011) / 700 GT EFI (2012) / 700 LTD EFI (2013) / 700 TBX (2010-2018) / 700 TRV (2008-2015) / 700 XR (2015) / 700i EFI MUDPRO / LTD (2012-2015) / 700i H1 TRV GT EFI (2011-2012) / Alterra 550 (2016) / Alterra 700 (2016) / H2 THUNDERCAT 08 / Prowler 650 XT (2006) / Suzuki LT-A400F 4WD King Quad (2008-2014) / LT-A400F Eiger 4wd (2002-2007) / LT-A500F Quad Master Auto (2001) / LT-A500F Vinson (2002-2007) / LT-F300F King Quad (2001-2002) / LT-F400F 4WD King Quad (2008-2017) / LT-F400F Eiger 4wd (2002-2007) / LT-F500F (2002) / LT-F500F Vinson (2003-2007) / Yamaha 450 RHINO (2006-2009) / 660 RHINO (2004-2007) / 700 RHINO FI (2008-2013) / KODIAK 450 4WD (2018) / KODIAK 450 EPS 4WD (2018) / KODIAK 450 EPS 4WD Armor Grey (2018) / VIKING 700 (2014-2018) / VIKING 700 EPS (2018) / VIKING 700 EPS Red/Green (2018) / VIKING 700 VI EPS (2015-2018) / VIKING 700 VI EPS Hunter (2018) / VIKING 700 VI EPS Ranch (2018) / WOLVERINE (2017) / WOLVERINE EPS (2017) / WOLVERINE R-SPEC EPS (2016-2017) / YFB250FW Timberwolf (1994-2000) / YFM350 Grizzly IRS (2007-2011) / YFM350FW Big Bear (1987-1999) / YFM35FX Wolverine (1995-2005) / YFM400 Big Bear 4WD (2000-2006) / YFM400 Big Bear IRS (2007-2012) / YFM400 Kodiak 4WD (1993-1999) / YFM450 Grizzly EPS (2011-2014) / YFM450 Grizzly IRS (2007-2014) / YFM450 Kodiak (2003-2006) / YFM600 Grizzly (1998-2001) / YFM660 Grizzly (2002) / YXZ1000R (2016) / YXZ1000R EPS (2017) / YXZ1000R EPS SS (2017).

Complete application list can be found below.
