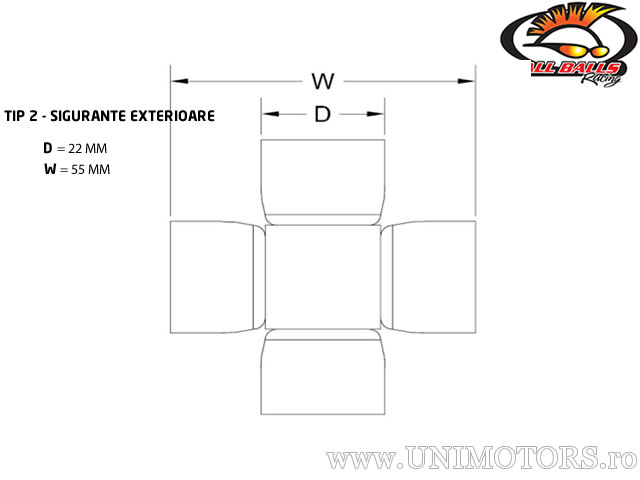

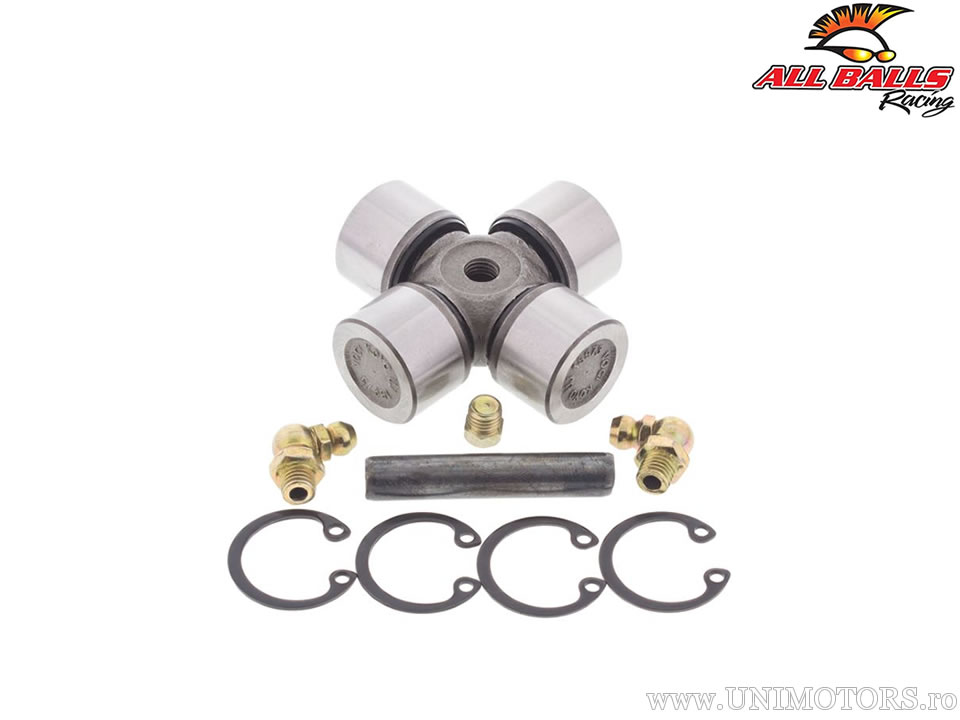

Cardan joint from All Balls - rear driveshaft mounting part - towards differential (pos. 5 in image no. 3) with size 22 x 55 mm type 2 - external snap rings.
The manufacturer All Balls is a supplier of consumables and parts for motorcycles and ATVs with an excellent proven quality/price ratio. The cardan joints from All Balls are made from SCM-415 cold forged steel and are factory greased with Lithium Complex 3 grease resistant to high temperatures.
Note for 6x6 traction vehicles:
- the center driveshaft uses the same cardan joints as the rear driveshaft (pos. 4 and 5 - image 3)
- the center differentials use the same cardan joints as the rear differentials (pos. 6 and 7 - image 3)
Among the most important applications are: Can-Am Outlander 330 (2004-2005) / Outlander 400 (2003-2004) / Outlander 400 STD 2x4 05 / Outlander 400 STD 4x4 (2005-2012) / Outlander 400 XT 4x4 (2004-2012) / Outlander MAX 400 STD 4x4 (2005-2011) / Outlander MAX 400 XT 4x4 (2006-2008).
Complete application list can be found below.400XT,
