Variator spring (67,2x181x4,7mm / 3,6K) - Honda Foresight 250 H2O 4T E1 ('98-'99) / Sym HD ABS 300i H2O 4T E5 ('21->) - Malossi

Arc variator (67.2x181x4.7mm / 3.6K) Malossi. Among the most important applications are: Honda Foresight 250 H2O 4T E1 1998-1999 / Foresight 250 H2O 4T E2 2000-2005 / Pantheon 125 H2O 2T E1 1998-2002 / Pantheon 150 H2O 2T E1 1998-2002 / Kymco Bet & Win 250 H2O 4T E1-E2 2000-2006 / EGO 250 H2O 4T E1-E2 2000-2006 / Grand Dink 250 H2O 4T E1-E2 2001-2006 / Grand Dink MMC 250 H2O 4T E2 2006-2011 / People 250 H2O 4T E2 2003-2005 / People S 250 H2O 4T E2 2006 / People S 300i H2O 4T E3 2009-2010 / X-Citing 250i H2O 4T E2 2005-2008 / X-Citing EVO-R ABS 300i H2O 4T E2 2009-2014 / X-Citing R 300i H2O 4T E2 2007-2008 / Yup 250 H2O 4T E2 2003-2006 / Peugeot SV 250 H2O 4T 2001-2002 / Piaggio X9 250 H2O 4T E1 2000-2003 (Honda) / Sym Citycom 300i H2O 4T E3 2008-2013 / Citycom S 300i H2O 4T E3 2014-2017 / Citycom S 300i H2O 4T E4 2017-2020 / GTS 250 H2O 4T E2 2005-2006 / GTS 250i H2O 4T E3 2007-2008 / GTS 300i H2O 4T E3 2012-2014 / GTS 300i H2O 4T E3 2014-2016 / GTS Evo 250i H2O 4T E3 2009-2010 / GTS Evo 300i H2O 4T E3 2009-2011 / HD ABS 300i H2O 4T E4 2019-2020 / HD ABS 300i H2O 4T E5 2021-> / Joymax 250i H2O 4T E3 2012-2014 / Joymax 300i H2O 4T E3 2012-2013 / Joymax 300i H2O 4T E3 2014-2016 / Joymax Z 300i H2O 4T E4 2019-2020 / Joymax Z+ 300i H2O 4T E5 2021-> / TGB X-Motion 250i H2O 4T E3 2008-2014.

Compatible spring with the following parts:
- Multivar 2000 variator (5111226, 5111838, 5116061);
- Multivar 2000 variator for Honda Pantheon 2T LC 125 - 150cc (5111261);
- Multivar 2000 variator for maxi-scooter / ATV / quad (5113892);
- 4-stroke coupling pinion (6111964);
- High carbon content silicon-steel spring;
- Heat treated, dynamically balanced, oven painted;
- Designed and calculated for each specific application;

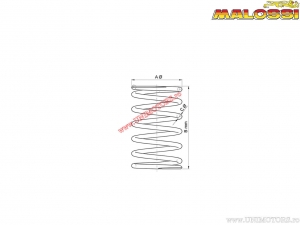

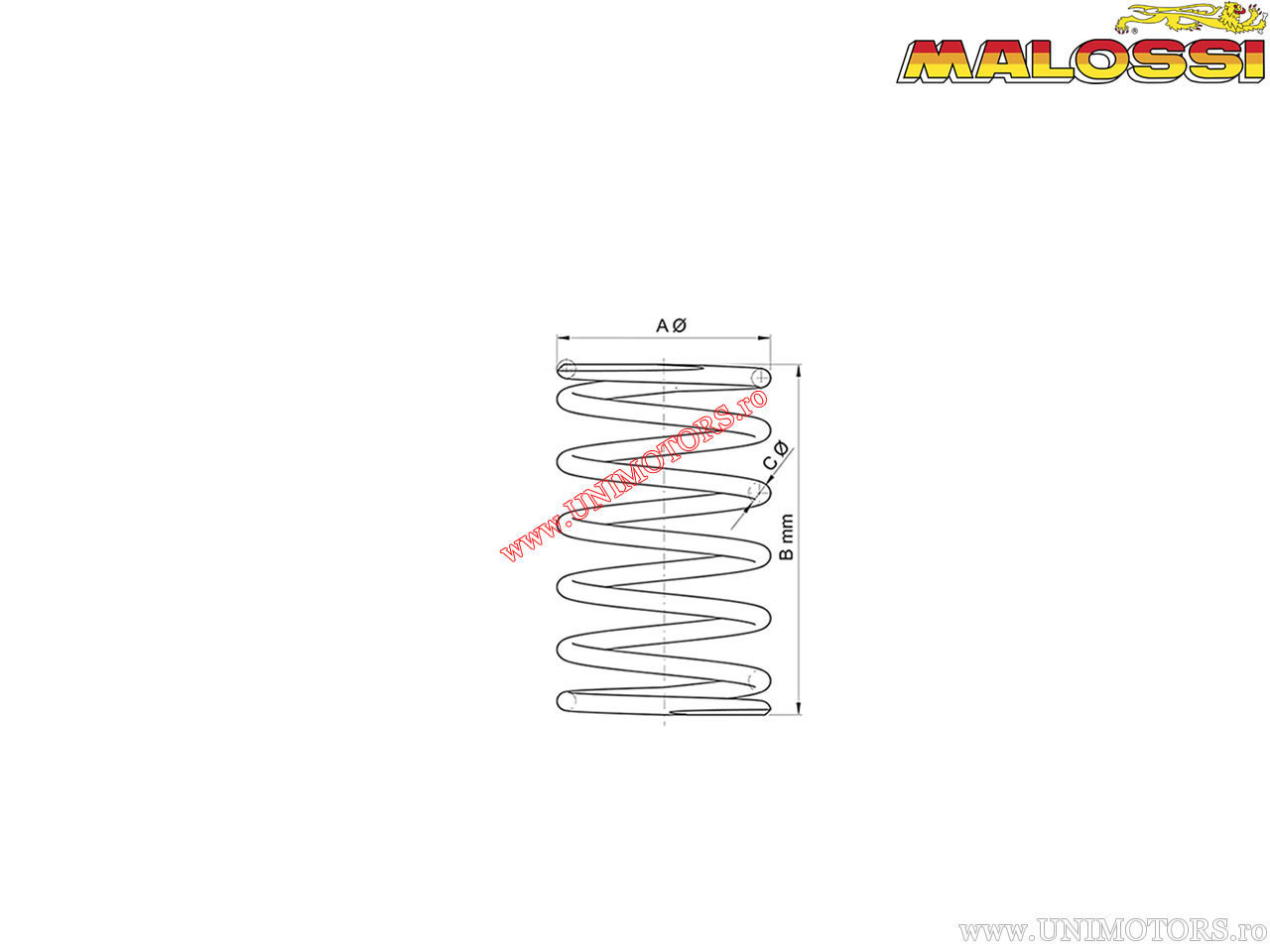

- Outer diameter spring (A): 67.2 mm;
- Spring length (B): 181 mm;
- Spring wire thickness (C): 4.7 mm;
- Spring stiffness: 3.6 K;
- Type: Mid-Race;
- Class: MHR;

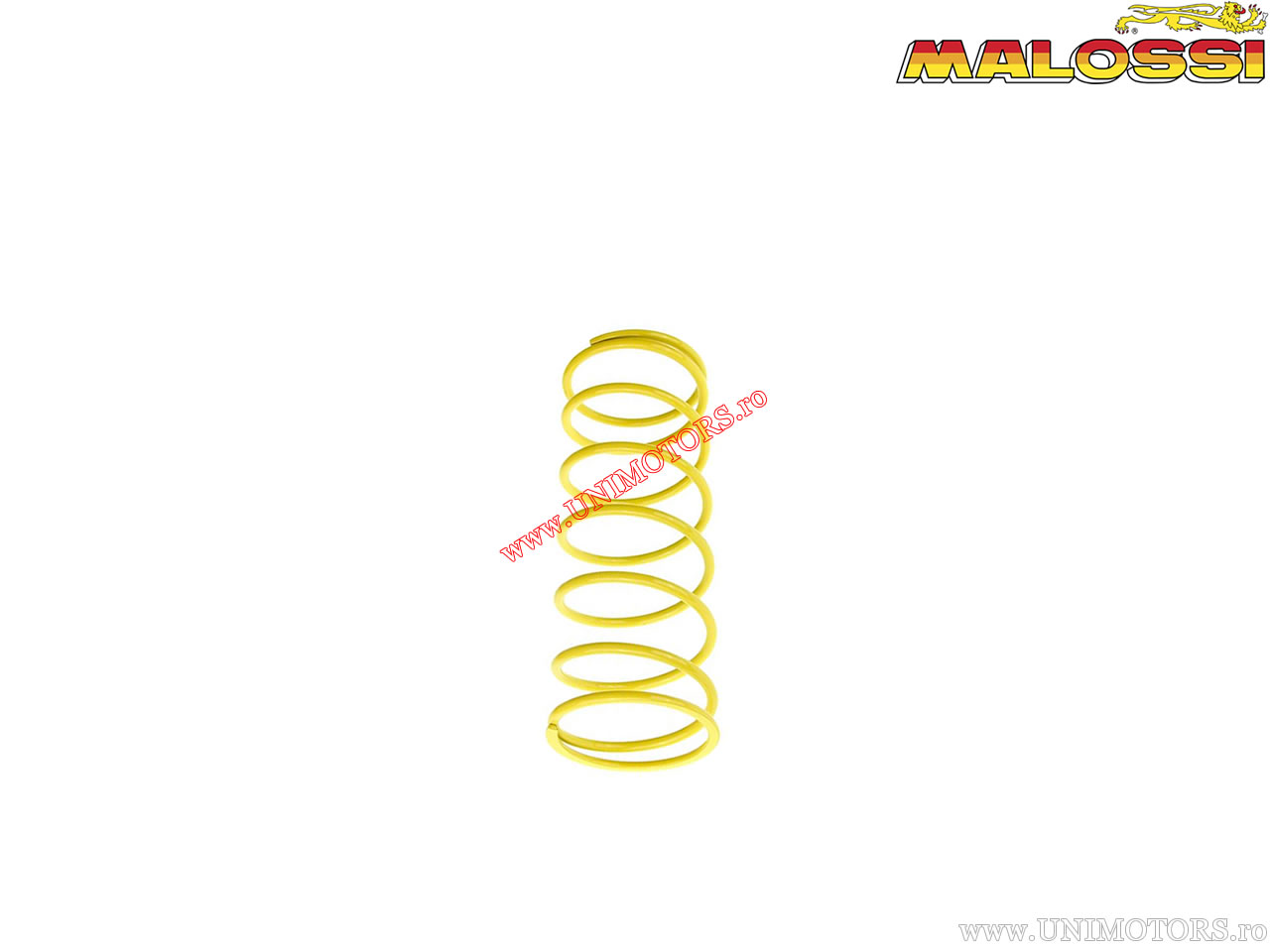

- Color: yellow.

Products reserved exclusively for competitions in designated areas in accordance with the provisions of the competent sports authorities. We disclaim any responsibility for improper use.
