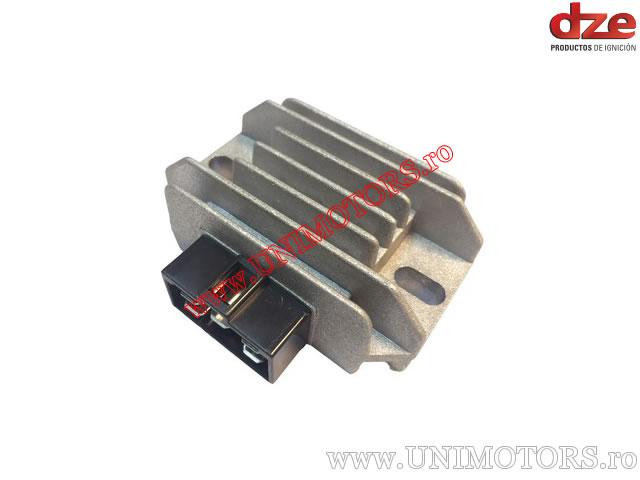

Charging relay (voltage regulator) from DZE Argentina for Euromot Lucky HJ-2 110 / Gilera QMT 10D Super 125 / QMT 10A Speedy 125 / Guerrero GMX 150 / Queen 125 / Jawa Supernova 150 / Jianshe JS 6B 125 / Jincheng JC 125 / Konisa Vitality KE 250 / Malaguti X3M Motard 125 / X3M Enduro 125 (2007-2008) / Mondial LD Pista 110 / Yamaha Brillant Riding 125 / XTZ E 125 (2013) / YBR E / ED / EGS 125 (2006-2013).
OEM part reference: 02603800 / 5VL-H1960-00 / 1S4-H1960-00 / 2D0-H1960-00.
Technical specifications
- voltage: 12 V
- power: 20 A
- input current: single-phase
- technology: SCR
- output type: direct current (D.C.)
- height: 28 mm
- width: 47 mm
- length: 76 mm
- hole spacing: 60 mm
- with sensor: yes.
