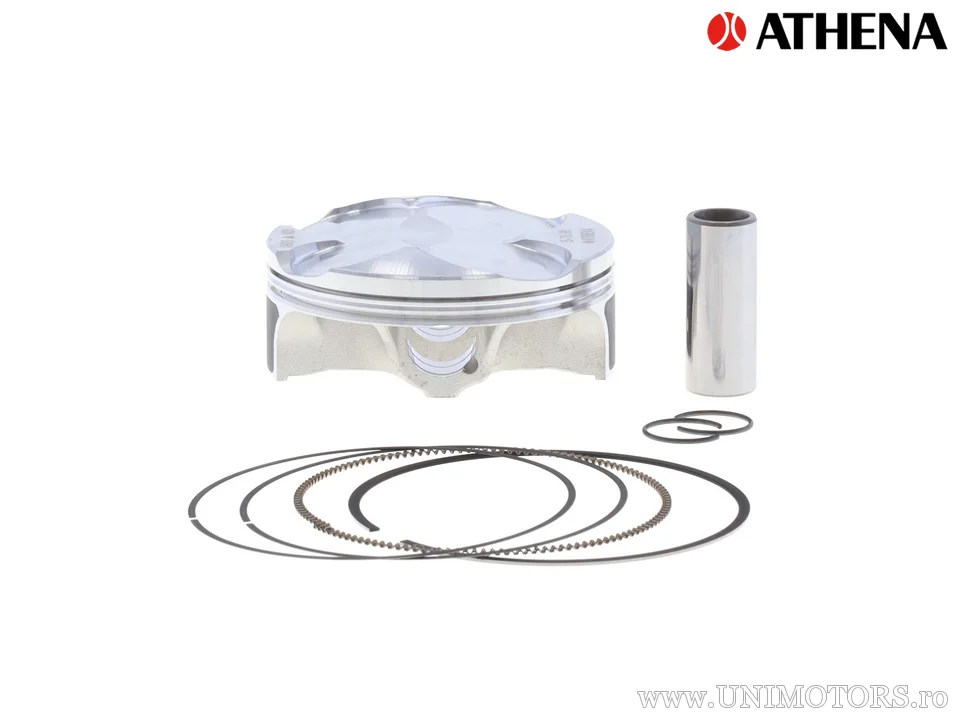

Complete piston kit from
Athena with a diameter of 78.96 mm (B size) for Honda CRF 250 R / CRF 250 RX (2020-2027) / CRF 250 RWE (2025-2027).
Athena pistons are developed to offer high standards of quality, performance, and reliability, equal to or exceeding those used for original OEM components.
Each piston is designed in Italy by the Athena R&D department and is tested on engine dynamometer benches under progressive load conditions. Afterwards, the pistons are also tested on the track to validate performance under extreme usage conditions.
Athena's quality and experience in developing engine components allow for the production of a high-performance and reliable piston, offered at a very good quality-price ratio.
Athena piston for Athena and OEM cylinders
This Athena piston is compatible with Athena cylinders and original OEM cylinders corresponding to the application, and is equipped with rings designed to reduce friction with the cylinder and improve engine performance.
Athena pays special attention to every detail in piston development. The rings are manufactured in Japan and use wear-resistant coatings such as PVD or chrome nitride, depending on the application, to increase resistance and durability.
The rings are designed to adapt precisely to the cylinder surface even at low tangential load, contributing to reduced friction, proper sealing, and efficient engine operation.
Athena piston kit contents
The kit includes the necessary components for piston installation:
- Athena piston;
- piston pin;
- piston pin clips;
- piston rings.
The kit components are replaceable and individually interchangeable when necessary.
Advantages of the Athena piston
- designed in Italy by the Athena R&D department;
- tested on dynamometer bench and in real-world conditions;
- rings manufactured in Japan;
- PVD or chrome nitride coatings, depending on application;
- reduced friction between piston, rings, and cylinder;
- high wear resistance;
- high performance and reliability;
- compatibility with Athena cylinders and OEM cylinders specified for the application.
Important: Athena products that result in a displacement or power output greater than the limits allowed by road legislation in the country where they are used are intended exclusively for competition use. Athena assumes no responsibility for use of the product in violation of applicable national legislation.
Technical specifications
Compression height: 18.70 mm
Compression ratio: 14.1:1
Displacement: 250 cc
Range: Enduro
Number of piston rings: 2
Piston pin type: Biconic
Piston size: 78.95 mm
Piston type: Forged
