Connecting Rod Kit - Yamaha YZ 250 ('83-'89) - ProX

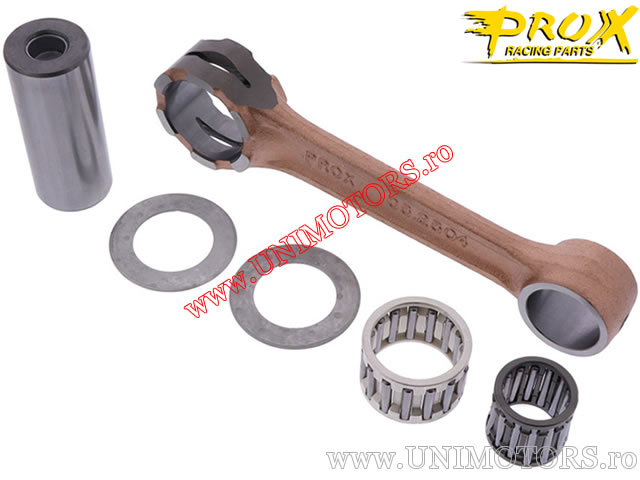

ProX connecting rod kit for Yamaha YZ 250 (1983-1989).

Dimensions:
- dimension A - upper diameter: 23.00 mm
- dimension B - lower diameter: 31.00 mm
- dimension C - distance between bolt centers: 130.00 mm
- dimension D - upper width: 20.00 mm
- dimension E - lower width: 20.00 mm
- dimension F - total length: 157.00 mm
- dimension G - inner length: 103.00 mm
- dimension H - lower bolt diameter: 25.00 mm
- dimension I - lower bolt length: 60.00 mm
- washers: 25x40x1.00 mm

Made in Japan.
