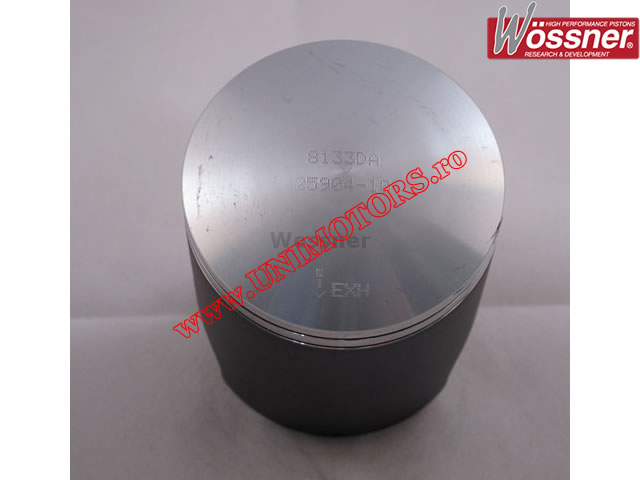

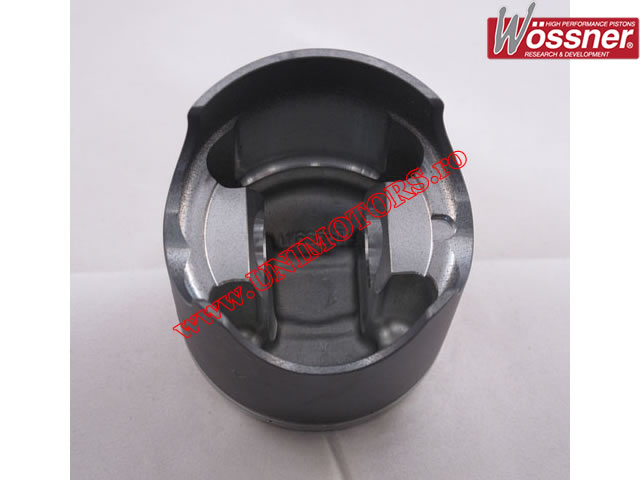

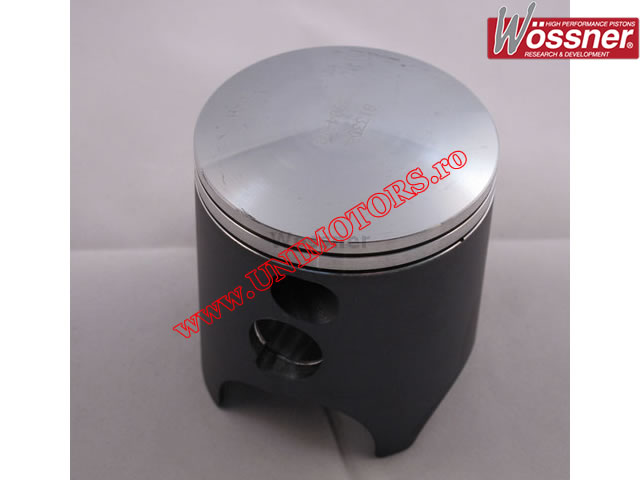

Piston Kit - Yamaha YZ 250 ('83-'87) (67.94-69.94mm) - Wossner

Forged piston kit Wossner for Yamaha YZ 250 manufactured between 1983-1987.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 68.00mm
- thermal clearance: 0.06mm
- pin-to-cap distance (measured from the center of the pin): 36.00mm
- piston pin dimensions: 18x13x56.20mm.

Available piston sizes:
- A (67.94mm)
- +0.50mm
- +0.75mm
- +1.00mm
- +1.25mm
- +1.50mm
- +2.00mm
