Piston Kit - Honda CRF 450R ('05-'08) / CRF 450X ('05-'13) (95.96-95.98mm) - Wossner

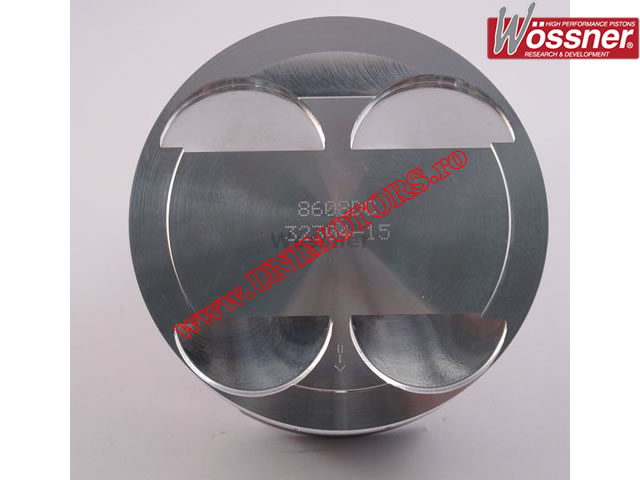

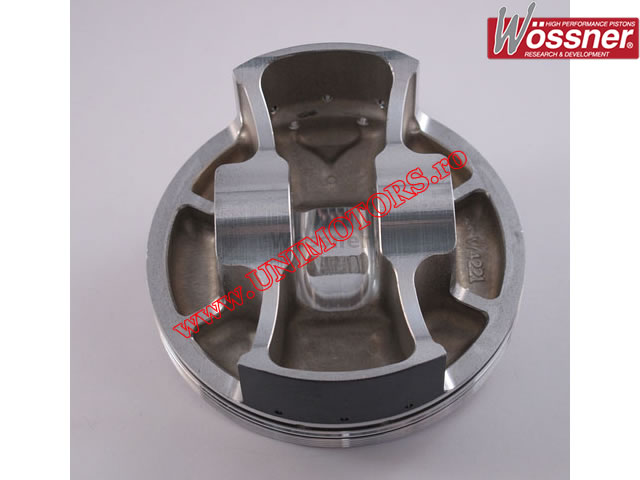

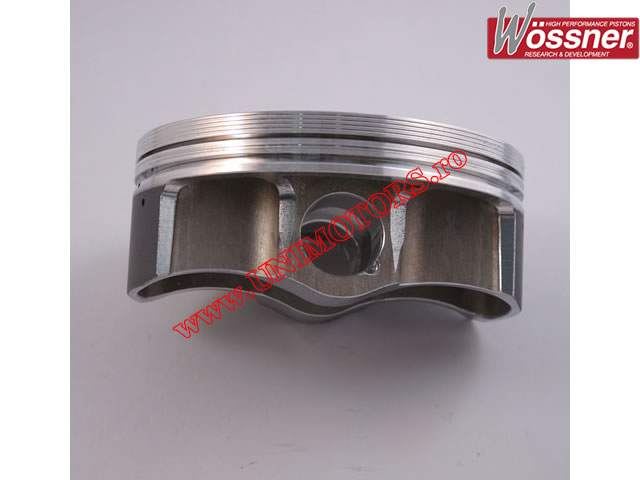

Forged piston kit Wossner for Honda CRF450 R (2005-2008) / CRF450 X (2005-2013).

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 96.00mm
- thermal clearance: 0.04mm
- number of rings: 2 (one compression / one oil)
- compression ratio: 12.00:1 (OEM)
- pin-to-head distance (measured from the center of the pin): 24.00mm
- piston pin dimensions: 19x9.2x46mm.

Available piston sizes:
- A (95.96mm)
- B (95.97mm)
- C (95.98mm)
