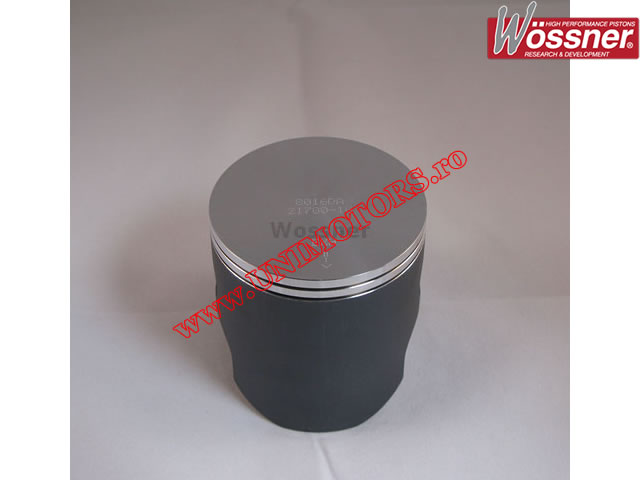

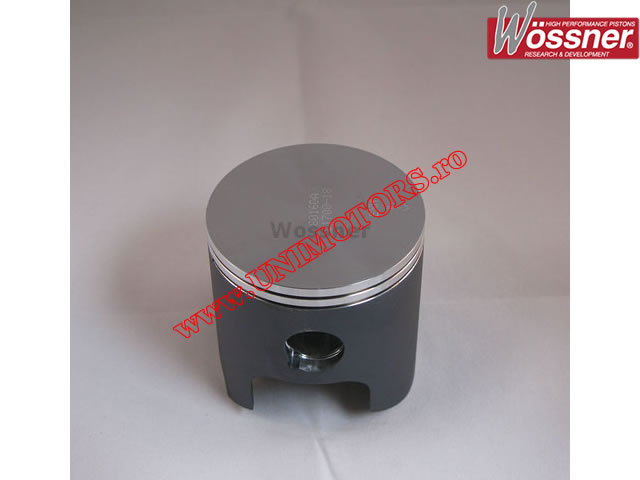

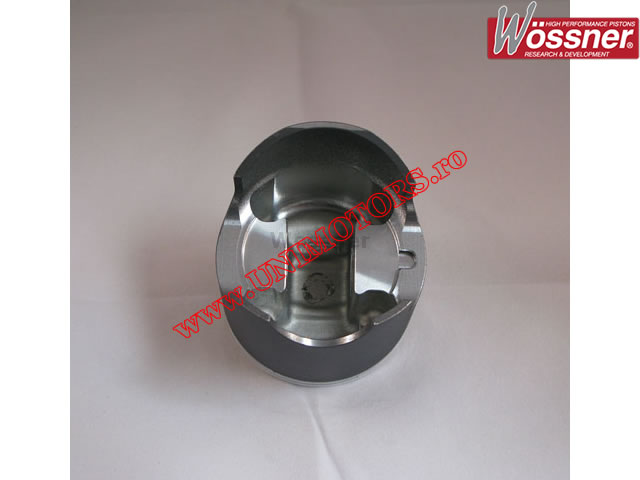

Piston Kit - KTM MXC250 / EXC250 / SX250 ('96-'99) (67.44-68.44mm) - Wossner

Forged piston kit Wossner for KTM MXC 250 / EXC 250 / SX 250 manufactured between 1996-1999.

The kit includes piston, rings, pin, and clips.

Please select the piston size from the box above.

Technical specifications:
- cylinder diameter: 67.50mm
- thermal clearance: 0.06mm
- pin-to-cap distance (measured from the center of the pin): 26.70mm
- piston pin dimensions: 18x13x56.20mm.

Available piston sizes:
- A (67.44 mm)
- B (67.45 mm)
- C (67.46 mm)
- +0.50 mm
- +1.00 mm
