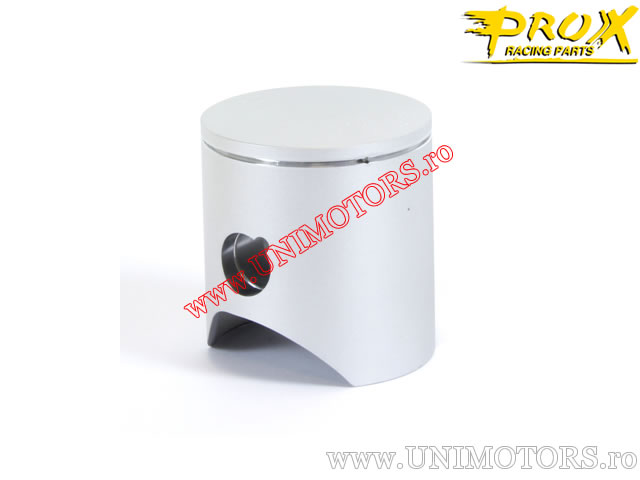

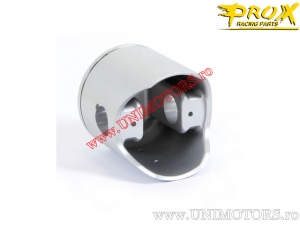

Piston Kit - Kawasaki KX 125 ('95-'97) - 125 2T - ProX

Please select the piston size from the box above.

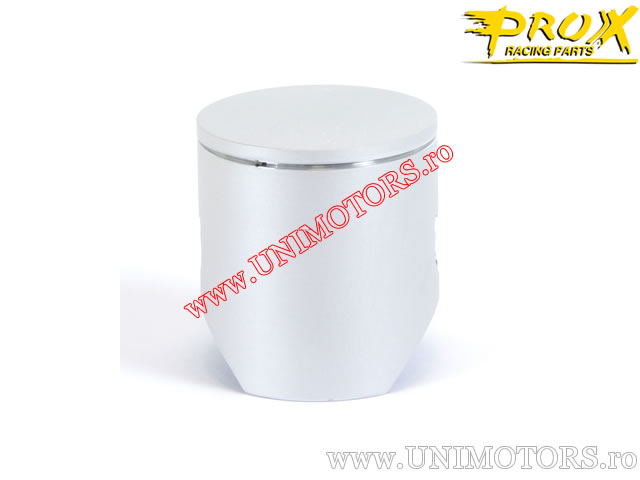

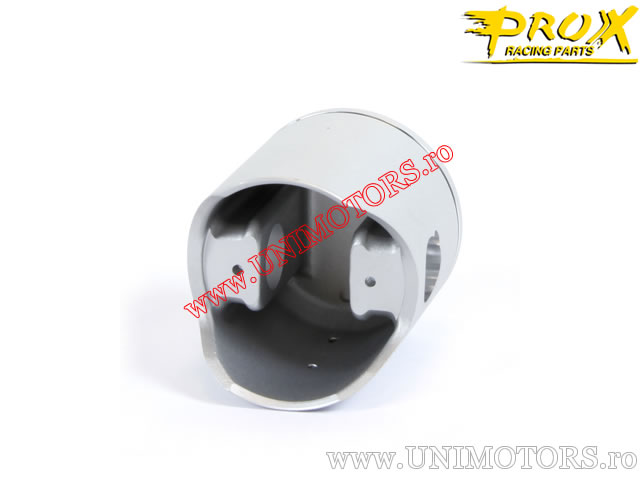

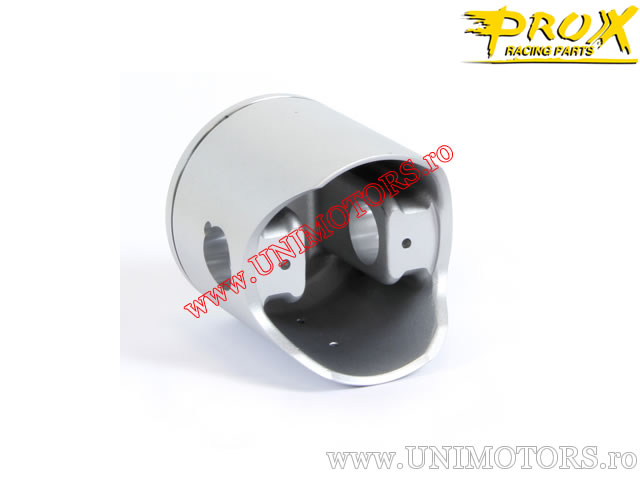

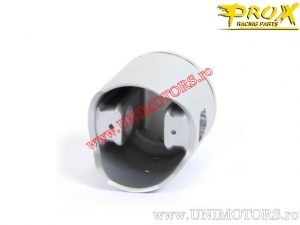

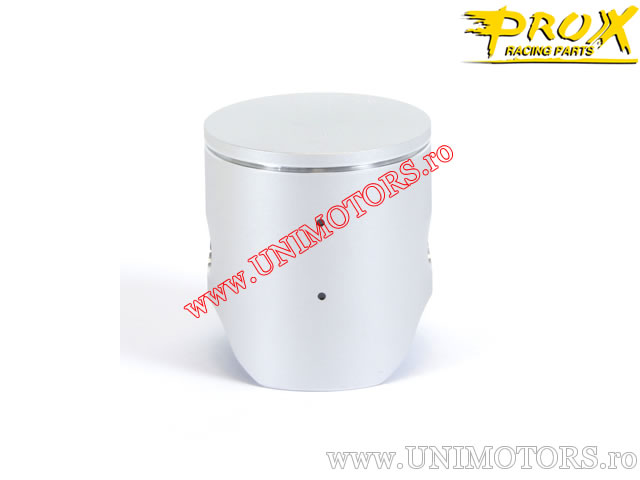

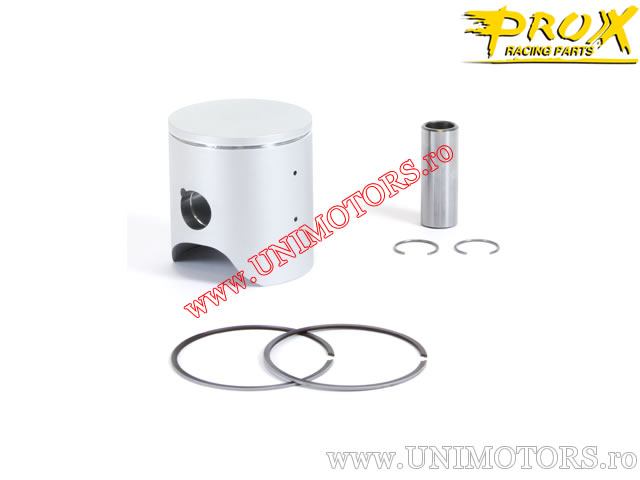

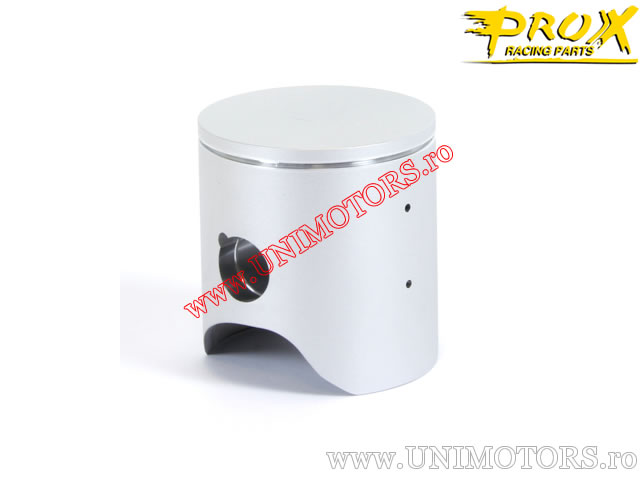

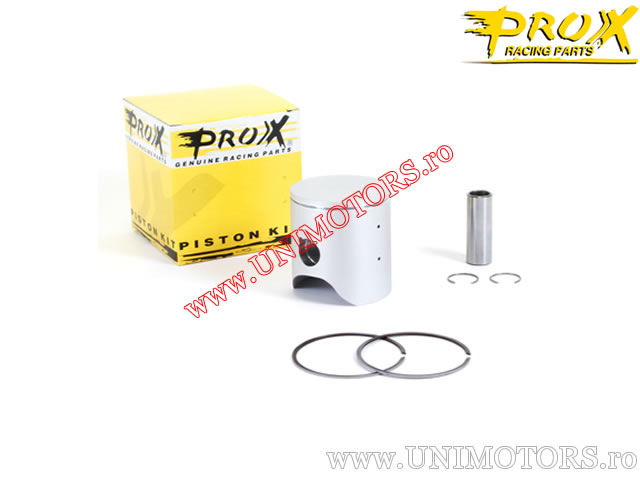

ProX piston kit for Kawasaki KX 125 (1995-1997) - 125cc 2T. The complete application list can be found below.

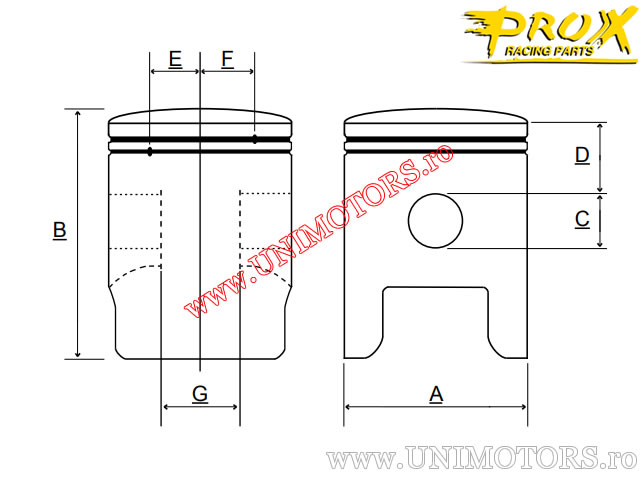

Technical specifications:
- standard cylinder diameter (factory diameter): 54.00 mm
- engine type: 2-stroke
- total piston length (B): 59.00 mm
- piston pin diameter (C): 15.00 mm
- compression height (D): 22.00 mm
- ring pin position measured from center (E): 12.50 mm
- ring pin position measured from center (F):
- internal distance of piston pin (G): 20.50 mm
- piston head shape: domed
- manufacturing technology: forged piston

Available piston sizes (A):
- A (53.95 mm)
- B (53.96 mm)
- C (53.97 mm)
- D (53.98 mm)
